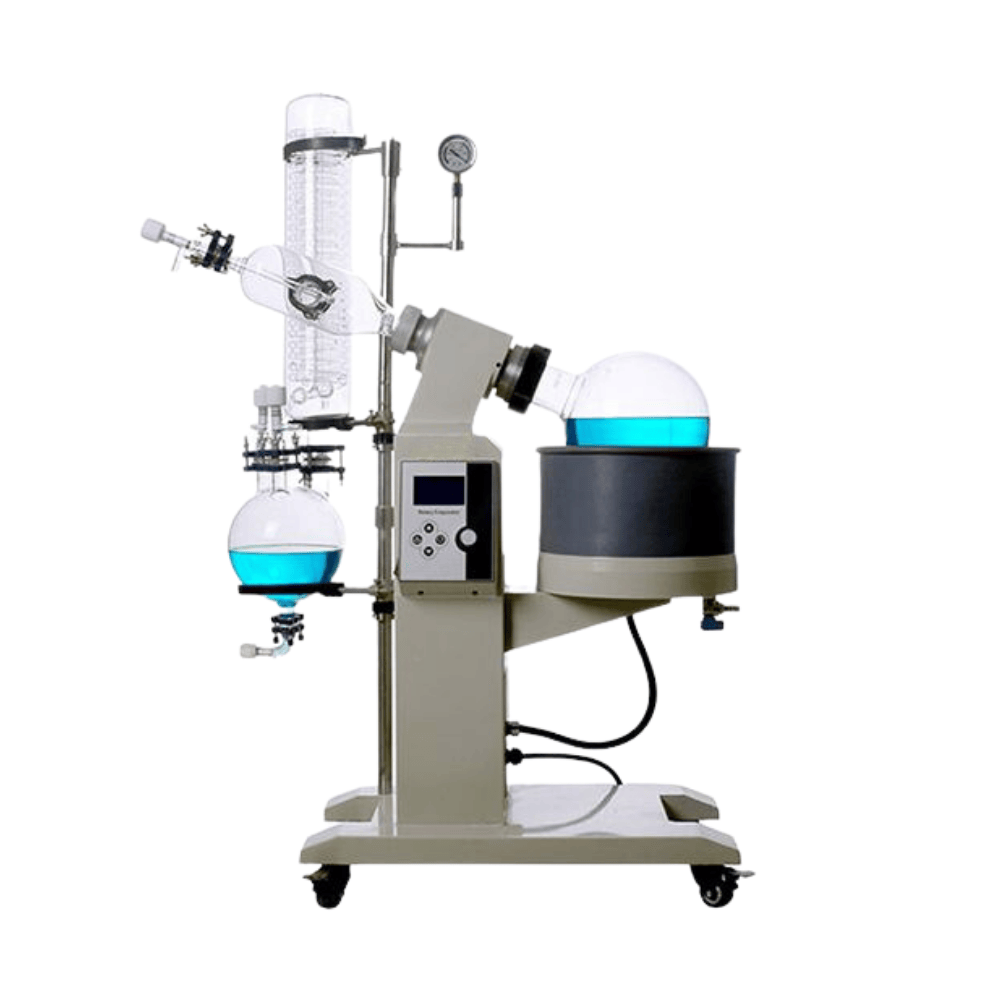

Rotary Evaporator, CA-REV-1005II
- Evaporating Flask Volume: 5L
- Motor Type：Brushless motor
- Lift Mechanism: Automatic
- Rotation Speed: 0~120 RPM
- Temperature Range: RT ~180℃
- LCD Display
Description
- The parts in contact with the material are all made of high borosilicate glass (expansion coefficient 3.3) and PTFE materials, which have stable performance and are not easy to react with the materials.
- The stent is made of cold plate anti-corrosivespray + aluminum alloy material, and the bath is made of 304 stainless steel.
- The sealing system uses PTFE + fluororubber compound sealing.
- Oily vacuum pressure gauge shows real-time vacuum bypointer.
- The piston-type feeding valve is sleeved with PTFE extension tube, which can be continuously fed to the evaporation bottle under vacuum status.
- Uprightdouble-layer serpentine coil as condenser
- Large LCD display, which can control rotation, heating and lifting at the same time
- Using brushless deceleration booster motor as rotary motor, no spark and low noise. Lifting motor also uses this kind of motor
- Thermostat controlled bath, with PT100 sensor + stainless steel probe at the bottom of bath
- The bath can be lifted electrically. A silicone cover is equipped outside the bath for heat insulation and anti-scalding.
- Rotating and heating double fusessafety protection
- The collection bottle has a lower dischargingport, equipped with glass + PTFE independent discharge valve.
- There is a water dischargingvalve at the bottom of the bath to facilitate liquid discharge
- Vacuum switching valve can continuously collect and discharge materials without affecting the system vacuum and solution distillation
- Over-temperature protection function, when the actual temperature> setting temperature+5 ℃, the machine will automatically power off
- Anti-drying function, when the water level in the heating bath is lower than the heating tube, the machine will automatically power off
- If the power is suddenly cut off while the machine is working, the machine will automatically stop heating when the power is turned on again
Specifications
| Model | CA-REV-1005II |
| Voltage/Frequency | 220V 50Hz/110V 60Hz |
| Total Power | 2100W |
| Rotary motor power | 60W |
| Lifting motor power | 40W |
| Heating power | 2000W |
| Vacuum | 0.095Mpa |
| Rotary flask volume | 5LΦ230mm/Φ80 flange port |
| Collecting flask volume | 3LΦ195mm/upper Φ50 flange port×Φ35 flange port×2 pcs × lower Φ50 flange port |
| Rotary speed | 0-120rpm |
| Temperature control range | Room temperature-180℃ |
| Temperature control accuracy | ±1℃ |
| Bath lifting stroke | 140mm |
| Condenser dimension | Φ120×600H(mm) side Φ50 flange port × lower Φ50 flange port |
| Condensing area | 0.5㎡ |
| Gas cylinder | Left Φ35 flange port, side Φ50 flange port, rightΦ50 flange port |
| Material feeding valve | Φ35 flange port, glass + PTFE valve, material feeding valve (pagoda joint) with 12mm outer diameter |
| Releasing valve | Φ35 flange port×2, glass + PTFE valve, releasing valve (pagoda joint)with 12mm outer diameter |
| Material discharging valve | Φ50 flange port, side discharging valve (pagoda joint) with 20mm outer diameter, 260mm from the ground |
| Vacuum nozzle | Pagoda joint with 10mm outer diameter |
| In and out circulating nozzle of condenser coil | Pagoda joint with 16mm outer diameter |
| Bath dimension/weight | Φ295×175H(mm) about 12L |
| Overall dimension(W*D*H) | 980×480×1260mm |
| Net weight | 46KG |
| Packing dimension | 800×450×1090mm wooden package 0.39m³ |
| Packing weight | 68KG |
| Supporting products | REV-1005II+Water Circulating Vacuum PumpVACP-WC3Y+Low Temperature Circulator RECL10-5 |
