Description

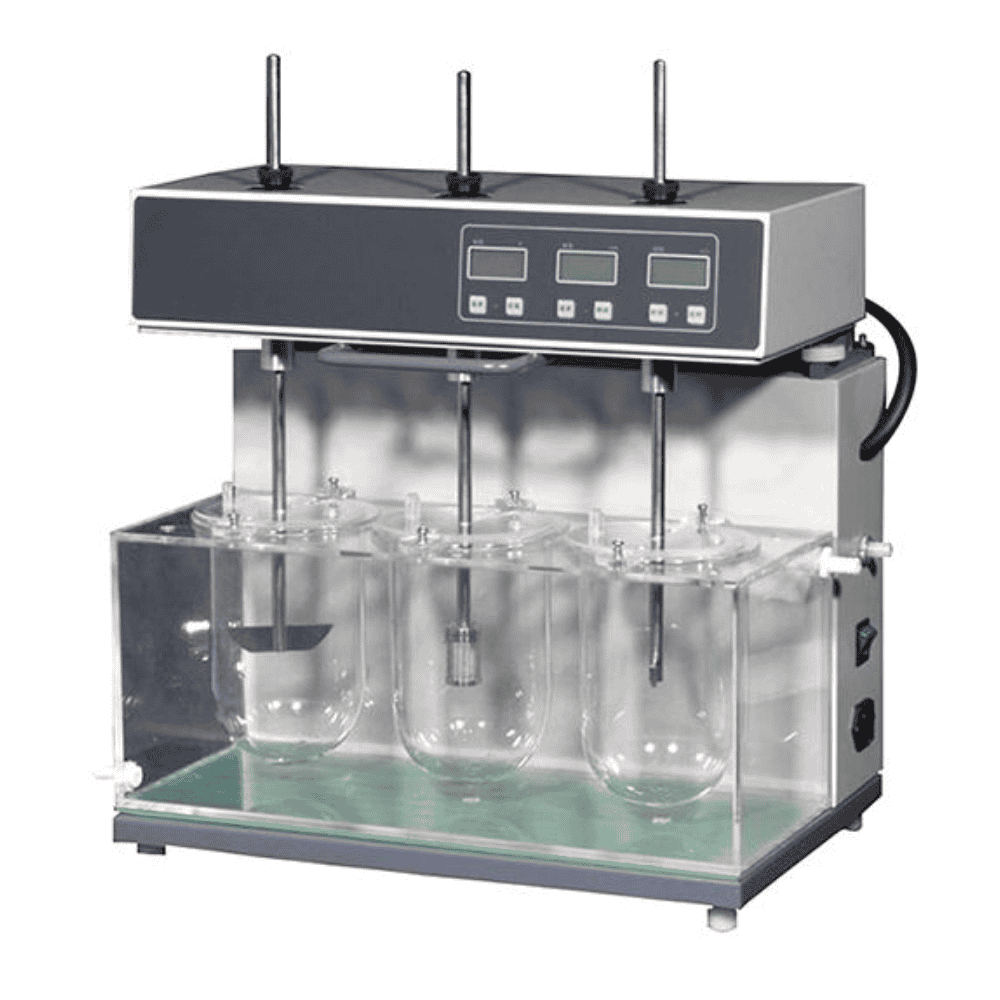

The DIST series of instruments is used to examine the dissolving speed and degree of solid preparations like drug tablets or capsules in the specified solvents.
Applicable standards:
- National standard( Chinese codex ) /2015
- Industry standard(Dissolution tester )JB/T 20105-2007
Features:
- It has three vessels and three poles arranged on one line.
- The head part of the instrument can be artificially turned over smoothly and flexibly.
- The basket units and paddle units are made of imported stainless steel (SUS316L).
- The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
- An MPU is used in a dissolution tester to automatically control the temperature, rotational speed, and time, and the parameters can be preset at any time.
- It can be operated conveniently by keystroke. The measurement result is displayed on the LCD. The preset and real data can be displayed alternately in time.
- Automation: auto-test, auto-diagnose, auto-alarm.
Specifications
| Model | CA-DIST-3E |
| Speed range | (20~200)rpm |
| Speed accuracy | ±2rpm |
| Temperature range | ambient to +45.0℃ |
| Temperature Stability | ±0.3℃ |
| Preset timing for nine points | (5~900)min |
| Time accuracy | ±0.5min |
| Paddle radial run-out | ±0.5mm |
| Basket radial run-out | ±1.0mm |
| Power | 220V/50Hz/600W or 110V/60Hz/600W |
| Dimension | (510*300*480)mm³ |
