Description

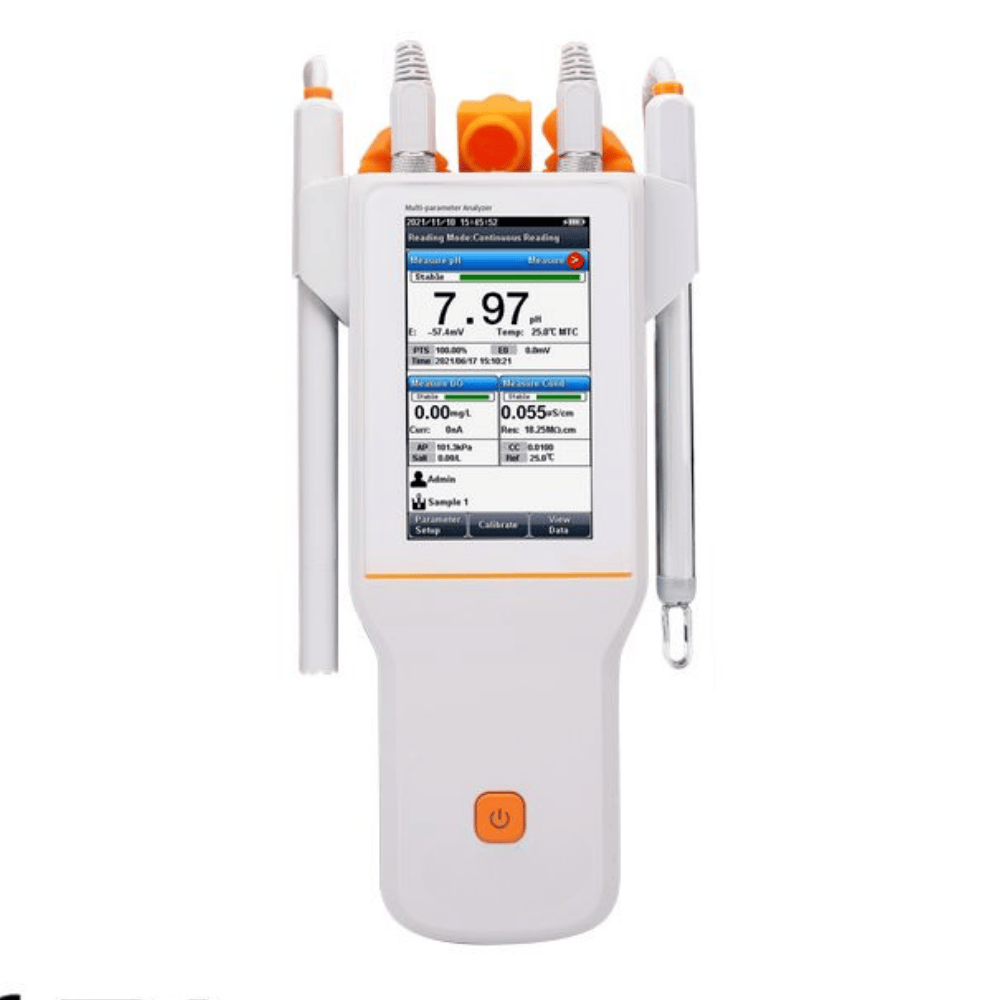

The CA-BEP-M310T Portable Multi-parameter Analyzer adopts a multi-purpose measurement method, which is suitable for the fields of health disease control, environmental protection, biological agriculture and forestry, water quality analysis, scientific research and institutions of higher learning.

General Features

  1. LCD display screen, 3.5 inches.
  2. Multi-reading feature allows auto-read, timed-read and continuous-read.
  3. Automatic/Manual temperature compensation ensures accurate results.
  4. Auto-hold feature senses and locks the measurement endpoint.
  5. Data capacity of up to 500 sets for each parameter (GLP-compliant).
  6. Support for USB communication.
  7. Auto-power off feature effectively extends the battery service life.
  8. Reset feature automatically resumes all settings back to factory default options.
  9. IP65 waterproof.

pH

  1. 1-5 points calibration with Standard Recognition.
  2. Selectable pH buffer groups, including NIST, DIN, GB.
  3. Automatic electrode diagnosis with pH slope and offset display.

Ion

  1. 1-5 points calibration.
  2. Selectable measurement unit, including μg/L, mg/L, g/L, mmol/L, pX, ppm, etc.
  3. Measurement modes are supported, including Direct Reading mode, Standard Addition mode, Sample Addition mode and GRAN mode.
  4. Over 10 methods are built-in, including F–, Cl–, Br–, I–, NO3–, BF4–, NH4+, K+, Na+, Ca2+, Cu2+, Pb2+, Ag+and etc., user-defined method is supported.

Conductivity

  1. 1-3 points calibration with Standard Recognition.
  2. Settable parameters, including cell constant, temperature compensation coefficient, and TDS factor.
  3. Temperature compensation type (none, linear, pure water).

DO

  1. Support for air-saturated water or zero oxygen calibration.
  2. Auto barometric pressure compensation
  3. Manual Salinity Factor Correction
  4. Selectable pressure unit, including kPa, mbar, Torr, Atm.

Specifications

Model CA-BEP-M310T
Parameters pH/EC/ISE/DO/Temp. (mV/pX/Resistivity/TDS/Sal./DO Saturation)
pH Range -2.00 to 20.00pH
Resolution 0.1, 0.01 pH
Accuracy ±0.01 pH
Calibration Points Up to 5
Standard Customization Yes
Calibration Reminder Yes
Standard Recognition NIST, GB and DIN buffers
Slope Limit Yes
mV Range -2000.0 to 2000.0 mV
Resolution 0.1 mV
Accuracy ±0.3 mV or ±0.1%
pX Range -2.00 to 20.00 pX
Resolution 0.1, 0.01 pX
Accuracy ±0.01 pX(±0.01 pX)
Calibration Points Up to 5
ISE Range 1E-9 to 9.999E9
Units mol/L, mmol/L, g/L, mg/L, μg/L
Resolution Up to 4 significant digits
Accuracy ±0.5%
Calibration Points Up to 5
Conductivity Range 0.000 μS/cm to 1000 mS/cm
Resolution 0.001 μS/cm minimum,
various with range selection
Accuracy ±1.0% FS
Reference Temperature 20, 25 ºC
Calibration Points Up to 3
Standard Recognition 84μS/cm, 1413μS/cm, 12.88mS/cm
Resistivity Range 5.00 Ω ·cm~20.00 MΩ ·cm
Resolution 0.01Ω ·cm minimum,
Accuracy ±1.0% FS
TDS Range 0.00ppm~300ppt
Resolution 0.01mg/L minimum, 3 significant digits
Accuracy ±1.0%
Salinity Range 0.0~80.0ppt
Resolution 0.1ppt
Accuracy ±2ppt
Dissolved
Oxygen Concentration		 Sensor Type Polarographic
Range 0.00 to 50.00 ppm
Resolution 0.01ppm
Accuracy ±0.1ppm
Calibration Points Air-saturated water or zero point
Barometric Compensation Yes
Manual Salinity Factor Correction Yes
Saturation Range (0.0 to 300.0)%
Resolution 0.10%
Accuracy ±2.0%
Temperature Range -5 to 110 ºC, 23.0 to 230 ºF
Unit ºC, ºF
Resolution 0.1
Relative Accuracy ±0.2
Measurement Reading Mode Auto-Read (Fast, Medium, Slow), Timed, Continuous
Reading Prompts Reading, Stable, Locked
Temp. Compensation ATC, MTC
Data management Data Storage 1000 Groups
GLP Features Yes
Inputs pH Electrode BNC(Q9)
DO with Temp. Probe 4-pin aviation connector
Conductivity with Temp. Probe 5-pin aviation connector
Outputs USB PC, printer
Display options Backlight Yes
Auto Shutdown 300, 600, 1200, 1800, 3600sec., off
IP Rating IP65
Date and Time Yes
General Electricity Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output
Dimensions 90 x 255 x 40 mm
Weight 500g
