Description

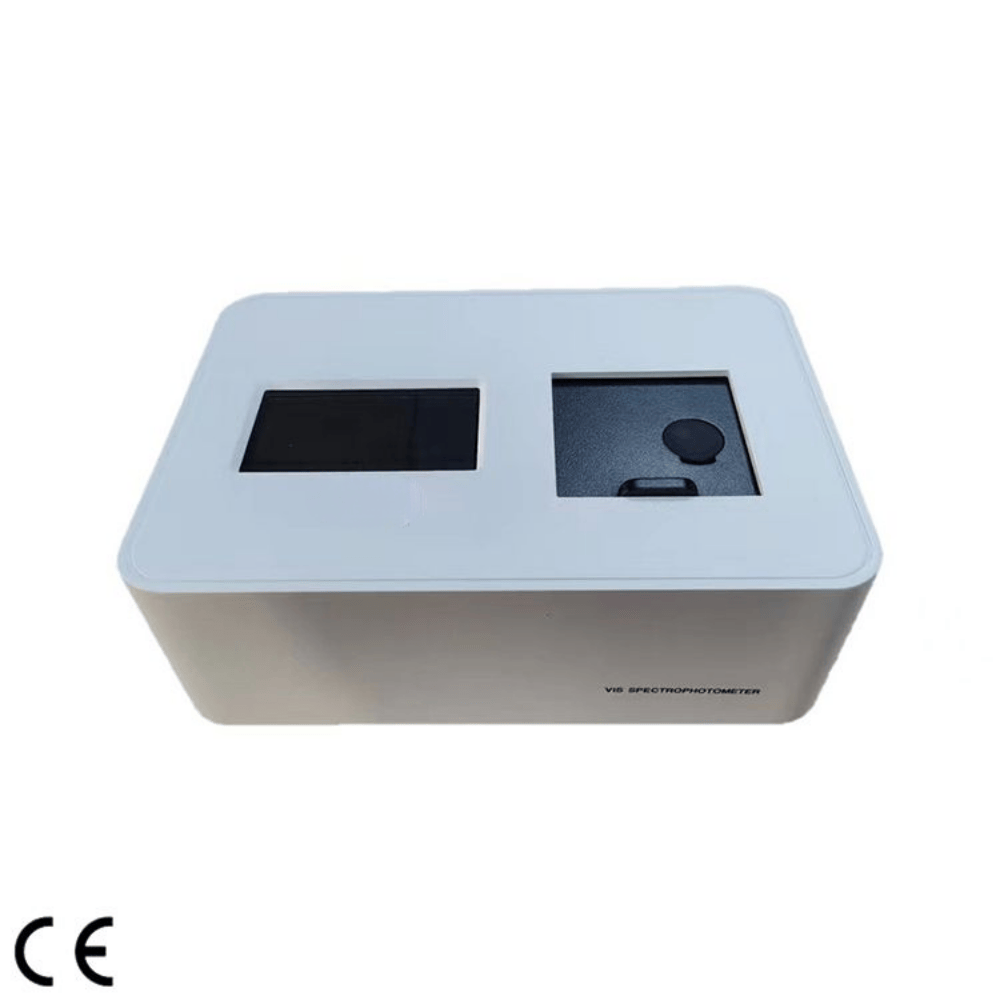

The portable visible spectrophotometer is small in appearance and powerful in function. It adopts a true color touch screen and has a humanized design, which makes the operation easier and meets the needs of different customers. It is widely used in teaching and daily analysis.
Luminosity measurement
- Photometric measurement: Test the absorbance, transmittance ( CA-SP-HVP-A4), and energy of the sample at a fixed wavelength and measure the results at multiple arbitrary wavelengths at the same time
- Quantitative testing: Establish a standard curve for concentration testing ( CA-SP-HVP-A4L)
- Pre-programmed programs: Stored programs are pre-programmed methods for reagents, test tube tests and pipette tests.
- User preset programs: User programs make “measurement analysis” possible: Users can program their own developed methods. The stored methods can be saved as user programs. The test can then be modified to suit the user’s requirements
- Frequently Used Procedures: User-selected list of common methods/tests
Specifications
| Model | CA-SP-HVP-A4 | CA-SP-HVP-A4L | |
| Spectral bandwidth | 5nm | 5nm | |
| Wavelength range | 400-780nm | 325-1100nm | |
| Optical system | Proportional double beam optical path, holographic diffraction grating | ||
| Wavelength accuracy | ±2.0nm | ±1.8nm | ||
| Wavelength repeatability | ≤1nm | ||
| Wavelength setting | Automatically set wavelength, wavelength resolution : 0.1nm | ||
| luminosity range | -0.602-4.0A 0-400%T | ||
| luminosity accuracy | ±0.002A (0-0.5A), ±0.004A (0.5-1A), ±0.8%T (0-100%T) | ||
| Luminosity repeatability | ≤0.001A (0-0.5A), ≤0.002A (0.5-1A), ≤0.1%T (0-100%T) | ||
| Stray light | 0.05%T (340nm)%T | ||
| Baseline drift (stability) | ≤0.001A/h (500nm,0A) | ||
| Detector | Dual imported silicon photodiodes | ||
| Light source | LED | Tungsten lamp (no optical debugging required) | |
| Display screen | 480*272,5-inch color touch screen | ||
| Printout | Micro printer; PC printer (online use) | ||
| Power supply | DC12V 3A | ||
| External dimensions (L*D*H) | 290x200x120mm | ||
| package size（L*D*H） | 390*310*240mm | ||
| rough weight (KG) | 5 | ||
