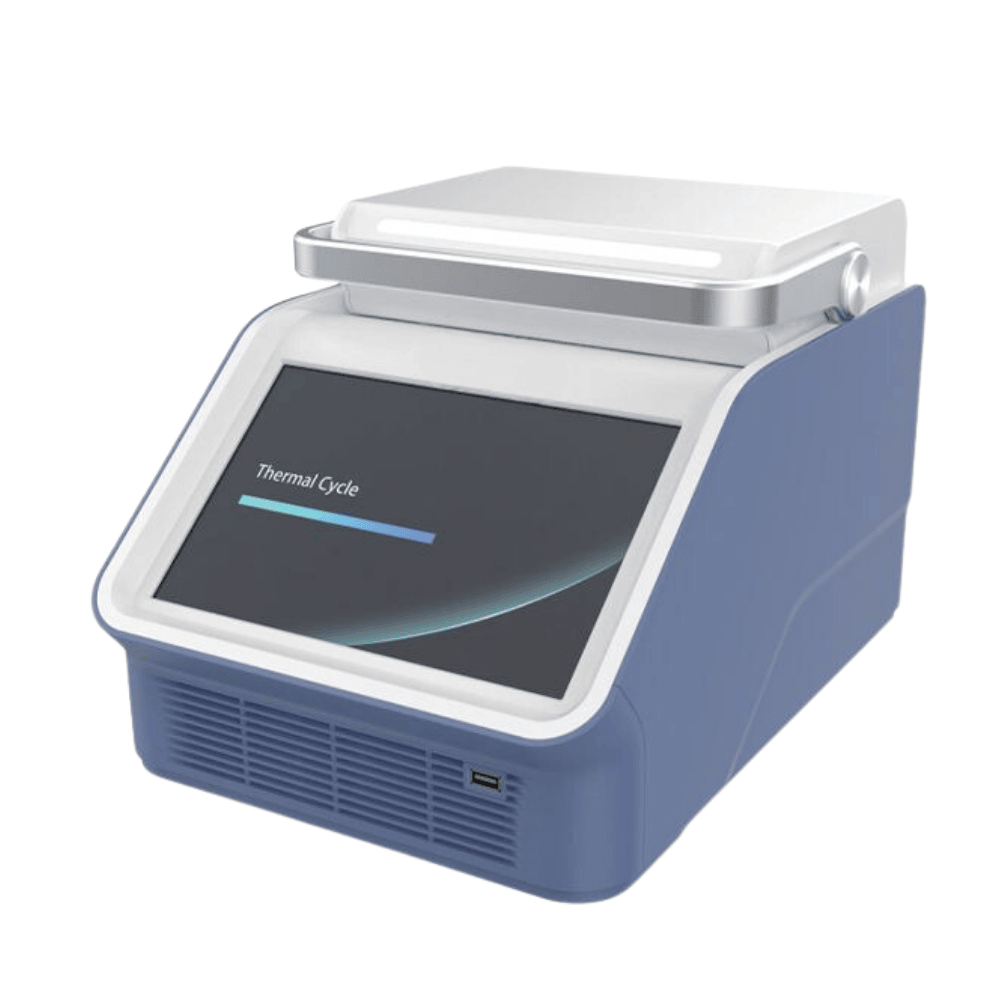

PCR Machine, CA-PCR-96A
- High heating and cooling rate
- 1 inch capacitive touch screen
- One-click quick incubation function
Description
Thermal cycler has Android operation system and 10.1 inch capacitive touch screen. Operation is very smooth and simple. Air channel is in front and back and it allows machine placed side by side. Self-adapting pressure hot lid makes closing lid and tightening lid in one step. It has long service life Peltier heating units and max. ramping rate is 5℃/S and cycle times is more than 1000,000. Wifi unit is built in and user can control many units of PCR through mobile App.
- High heating and cooling rate, max. Ramping rate is 5 ℃/s
- Automatic restart after power failure. When power is restored it can continue to run unfinished program.
- One-click quick incubation function can meet experiment’s needs such as denaturation, enzyme cutting/enzyme-link and ELISA.
- Android operation system and 10.1 inch capacitive touch screen.
Specifications
| Model | CA-PCR-96A |
| Capacity | 96×0.2ml |
| Tube | 0.2ml tube, 8 strips, Half skirt 96 wells plate, No skirt 96 wells plate |
| Temperature Range | 0-105℃ |
| MAX. Ramp Rate | 5℃/s |
| Uniformity | ≤±0.2℃ |
| Accuracy | ≤±0.1℃ |
| Display Resolution | 0.1℃ |
| Temperature Control | Block/Tube |
| Ramping Rate Adjustable | 0.1-5℃ |
| Gradient Temp. Range | 30-105℃ |
| Gradient Type | Normal Gradient |
| Gradient spread | 1-42°C |
| Hot Lid Temperature | 30-115°C |
| Number of Programs | 20000+(USB FLASH) |
| Max. No.of step | 30 |
| Max. No.of cycle | 200 |
| Time Increment/Decrement | 1Sec-600 Sec |
| Temp.Increment/Decrement | 0.1-10℃ |
| Pause Function | Yes |
| Auto Data Protection | Yes |
| Hold at 4℃ | Forever |
| Touchdown Function | Yes |
| Long PCR Function | Yes |
| Language | English |
| Computer Software | Yes |
| Mobile phone APP | Yes |
| LCD | 10.1 inch，1280×800 pels |
| Communication | USB2.0， WIFI |
| Dimensions(L×W×H) | 560mm×440mm×420mm |
| Weight | 14Kg |
| Electricity | 100-240VAC , 50/60Hz , 600 W |
