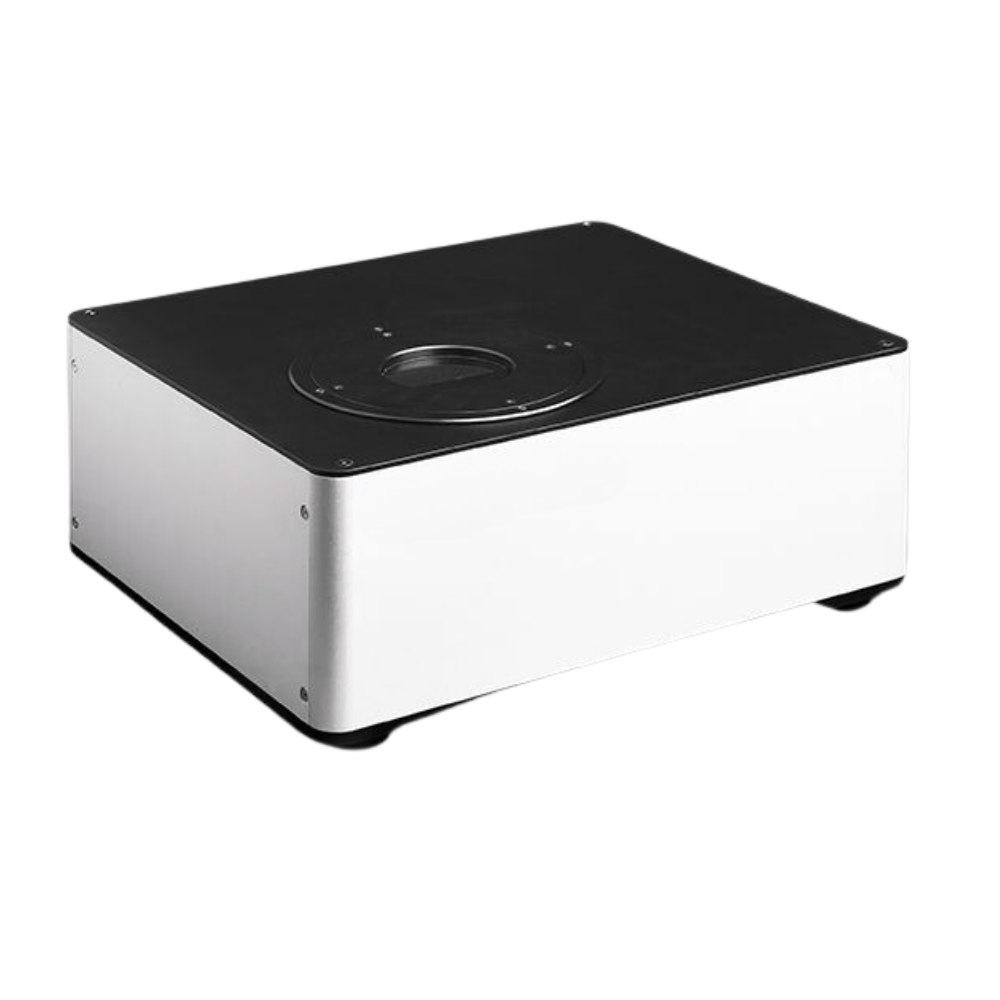

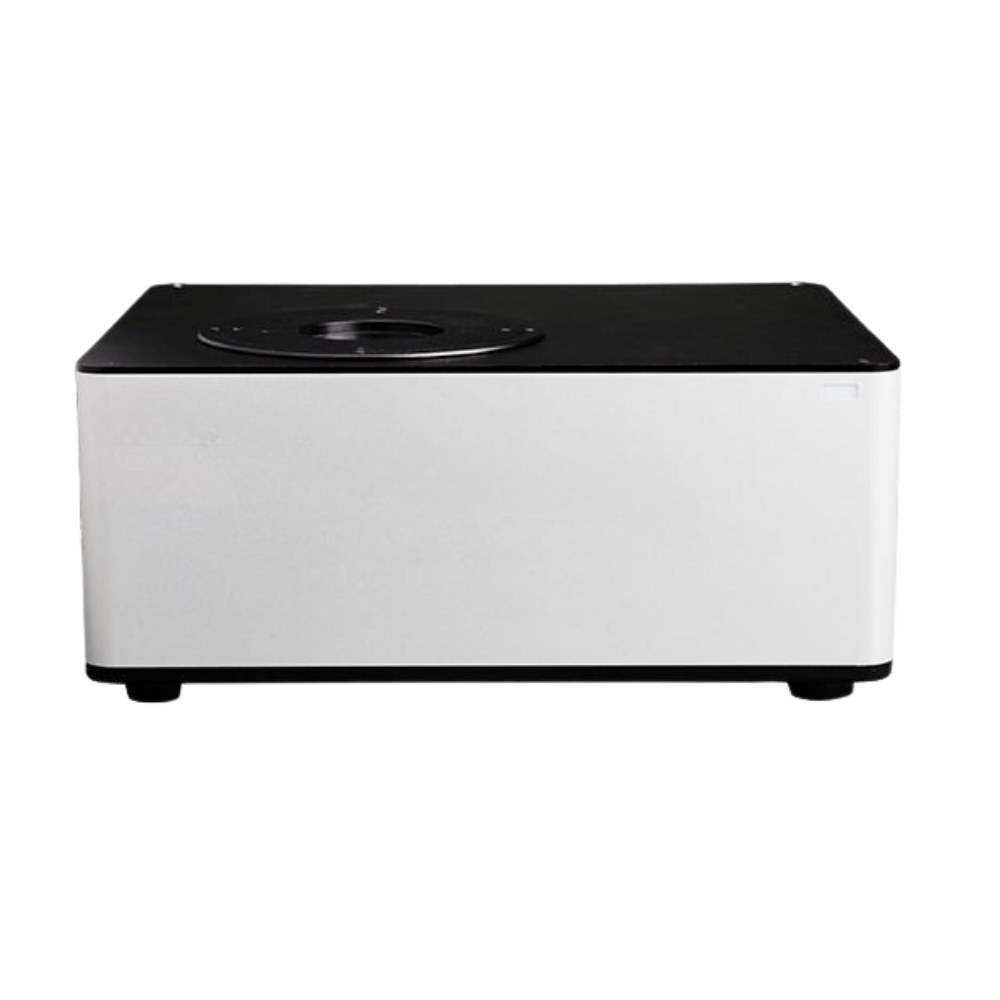

NIR Spectrophotometer, CA-SP-LIF460

  • Wavelength Range: 700nm~2500nm
  • Wavelength Accuracy: ≤0.2nm
  • Spectral Bandwidth: 12nm
  • Measurement Mode:Integrating sphere
SKU: CA-SP-LIF460 Category:

Description

SP-LIF460 NIR Spectrometer provides calibration models for multi-domain and diversified applications. It can be widely used in agricultural feed, grain and oil food, wine and starch, soy sauce fermentation products.

Features

  • Simple operation, no sample pre-treatment, no sample destruction.
  • 700nm-2500nm ultra-wide spectral range, fast analysis.Multiple component indicators can be detected simultaneously within 1 minute, such as moisture, fat, protein, and amino acids.
  • The core main parts are all international well-known brands.
  • Built-in high-quality PTFE reference module and polystyrene wavelength standard film, automatic reference correction and wavelength monitoring, to ensure accurate and stable measurement results.
  • Equipped with integrating sphere diffuse reflection system, large sampling spot and sample rotating table to ensure the reproduction effect of uneven samples.
  • Good model transfer can be carried out between multiple instruments. Each instrument is calibrated, identified and verified in strict accordance with industry recommendations. All tests use NIST traceable standards.
  • A variety of sample cups and accessories can be selected to meet the test of particles, powders, liquids and films.
  • The instrument monitors the environmental temperature and humidity in real time and stores it in the spectrum file, which is convenient for users to consult and optimize the measurement conditions.

Specifications

Model SP-LIF460
Measurement Mode Integrating sphere
Spectral Bandwidth(nm) 12
Wavelength Range(nm) 700nm~2500nm
Wavelength Accuracy(nm) ≤0.2
Wavelength Repeatability(nm) ≤0.05
Stray Light(%) ≤0.1
Absorbance Noise (Abs) ≤0.0005
Analysis Time 1min (adjustable)
Lifetime of Light Source More than 5000 hours
Sample Volume The big cup φ90 is about 120g,

the middle cup φ70 is about 60g,

the small cup φ30 is about 12g.

Calibration Technology Quantitative analysis: LPLS local partial least squares Qualitative analysis: DPLS digitized partial least squares
Dimension(L*W*H)(mm) 365*295*157
Package Dimension (W*D*H)(mm) 550*520*400
N.W./G.W.(kg) 18/21
Shipping Dimension(L*W*H)(mm) 550*540*380
