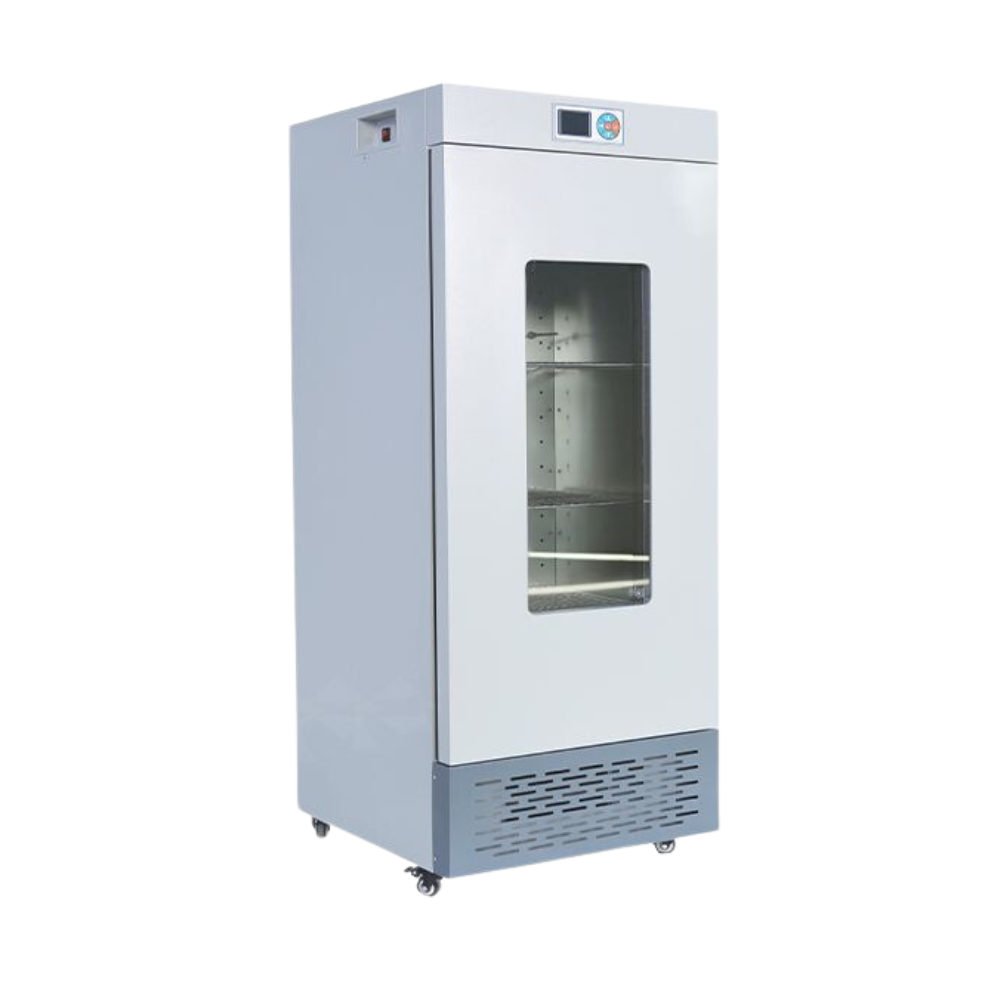

Description
It is widely used in mold screening, microbial tissue cell culture, fungal spore culture, food and drug, preservation experiments, seed germination and other test needs.
Features
Energy-saving
- The sealing ring of incubator adopts a new type of synthetic silicone sealing strip, which effectively prevents heat loss.
- Automatically adjust the control parameters according to the ambient temperature and load to achieve the good heating method and reduce energy consumption.
Intelligent control
- High definition LCD display, real-time display of parameters, self-locking function of screen, simple and convenient operation.
- Menu-type operation interface, simple and convenient operation, can quickly set temperature and time parameters.
- Running function: fixed value running, timing running; The screen will display “END” with a beeping reminder after the running time is completed.
Internal circulation system
- Adopts high-quality fan and large impeller fan, the machine has higher ventilation efficiency and better temperature uniformity.
- The circulation system adopts the back suction and the bottom vertical air supply mode.
- The shelf is laser hollowed out with round holes for better ventilation and better temperature uniformity.
Dedicated sheet metal processing
- The shelf can be disassembled and can be freely adjusted up and down, with a minimum spacing of 30mm.
- The inner chamberis made of high-quality brushed stainless steel, with strong corrosion resistance.
Humanized design
- Built in observation window to make the objects in the chamber clear at a glance.
- The anti-scalding design of the door handle makes it easy to open and close the door.
Safety
- Equipped with leakage protection device to ensure the safety of operators and other equipment in the laboratory.
- With over temperature control of visible & audible alarm
- Self-diagnosis function: display fault information, which is convenient for judging the fault point..
Optional
- Independent temperature limiting controller
- Intelligent LCD procedure temperature controller(Optional USB,RS485/232 and printer)
2. Intelligent LCD procedure temperature controller(Optional USB,RS485/232 and printer)
Specifications
| Model | CA-ICB-M150Z | CA-ICB-M250Z | CA-ICB-M350Z | CA-ICB-M450Z | |
| Capacity(L) | 150 | 250 | 350 | 450 | |
| Circulation | Forced air convection | ||||
| Dimension
(W*D*H) |
Internal (mm) | 505*380*800 | 550*450*1050 | 550*550*1150 | 700*550*1200 |
| External (mm) | 630*600*1450 | 680*660*1710 | 680*770*1870 | 830*750*1860 | |
| Temperature | Range (℃) | 4~60 | |||
| Fluctuation (℃) | ±0.5 | ||||
| Resolution (℃) | 0.1 | ||||
| Uniformity (℃) | ±1 | ||||
| Sensor | PT100 | ||||
| Controller | PID | ||||
| Display | LCD | ||||
| Timer(min) | 1-9999 | ||||
| Material | Internal | Stainless steel | |||
| External | Electro-galvanized steel with antimicrobial powder coating | ||||
| Shelves | 3 | 4 | |||
| Test Hole (mm) | Optional φ25,50,80,100 | ||||
| Safety Device | Leakage protector/Over- temperature alarm | ||||
| Electricity | Voltage/Frequency
(V/Hz) |
220/50 | |||
| Consumption (W) | 900 | 1000 | 1100 | 1600 | |
| N.W./G.W. (kg) | 120 | 140 | 170 | 200 | |
| Shipping Dimension (W*D*H) (mm) | 730*730*1640 | 800*760*1930 | 870*750*1930 | 900*1150*2080 | |
| Optional | 1.Independent temperature limiting controller
2.Intelligent LCD procedure temperature controller(Optional USB,RS485/232 and printer) |
||||
