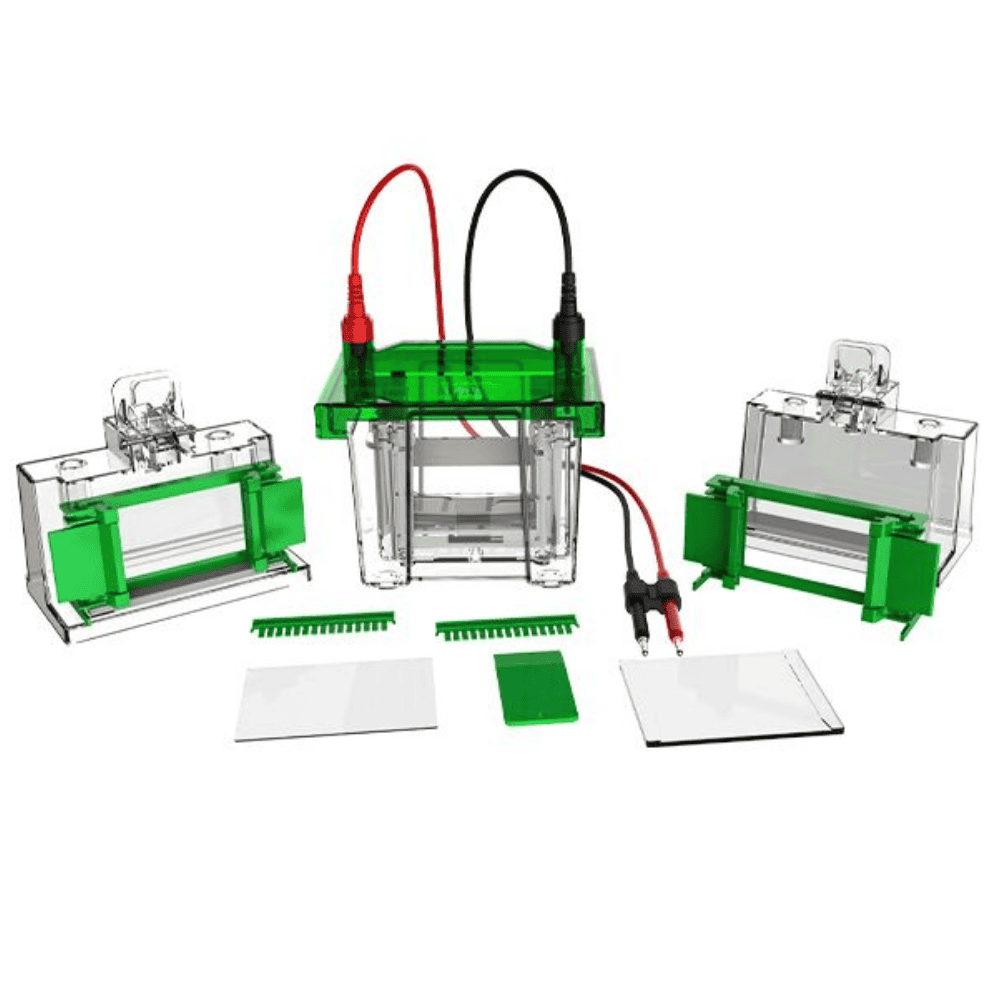

Mini Vertical Electrophoresis Tank, CA-GEP-VH-1

  • Number of gels: 1-2 pieces
  • Sample comb:10, 15 teeth
  • Can be used as double glue, and the strip is clear
  • 99.99% high purity platinum electrode
SKU: CA-GEP-VH-1 Category:

Description

Usage:

This product is a device for vertical electrophoresis of a small number of accounting and protein samples.

Features:

  • High transparency polycarbonate injection molding, durable, easy to observe;
  • Integrated design of glass gasket ensures no glue leakage.
  • Instead of flat concave plate, it is not easy to damage and cheap.
  • Special glue making rack, simple and reliable glue making operation.
  • Opening and closing the cover to ensure the safety of the experiment
  • Upper cover limit function, to ensure that the wrong electrode polarity will not be connected.
  • Opening and closing the cover to ensure the safety of the experiment
  • At the same time, it can be used as double glue, and the strip is clear;
  • 99.99% high purity platinum electrode has the best conductivity and strong corrosion resistance.

Specifications

Model CA-GEP-VH-1
External Dimension 160*115*150mm
Gel Area 83mm×73mm
Gel Thickness 0.75, 1.0 and 1.5mm (optional)
Sampling Comb 10, 15teeth

Standard configuration

Name Quantity
Upper cover of electrophoresis cell (including wires) 1set
Lower shell of electrophoresis cell 1pc.
Electrode core 1set
Thick gel glass plate 5pcs.
Thin gel glass plate 5pcs.
10 teeth sampling comb 2pcs.
15 teeth sampling comb 2pcs.
Gel casting tray 2pcs.
Gel casting frame 2pcs.
Single gel barrier 1pc.
Gel scoop 1pc.
Glass drying rack 1pc.
