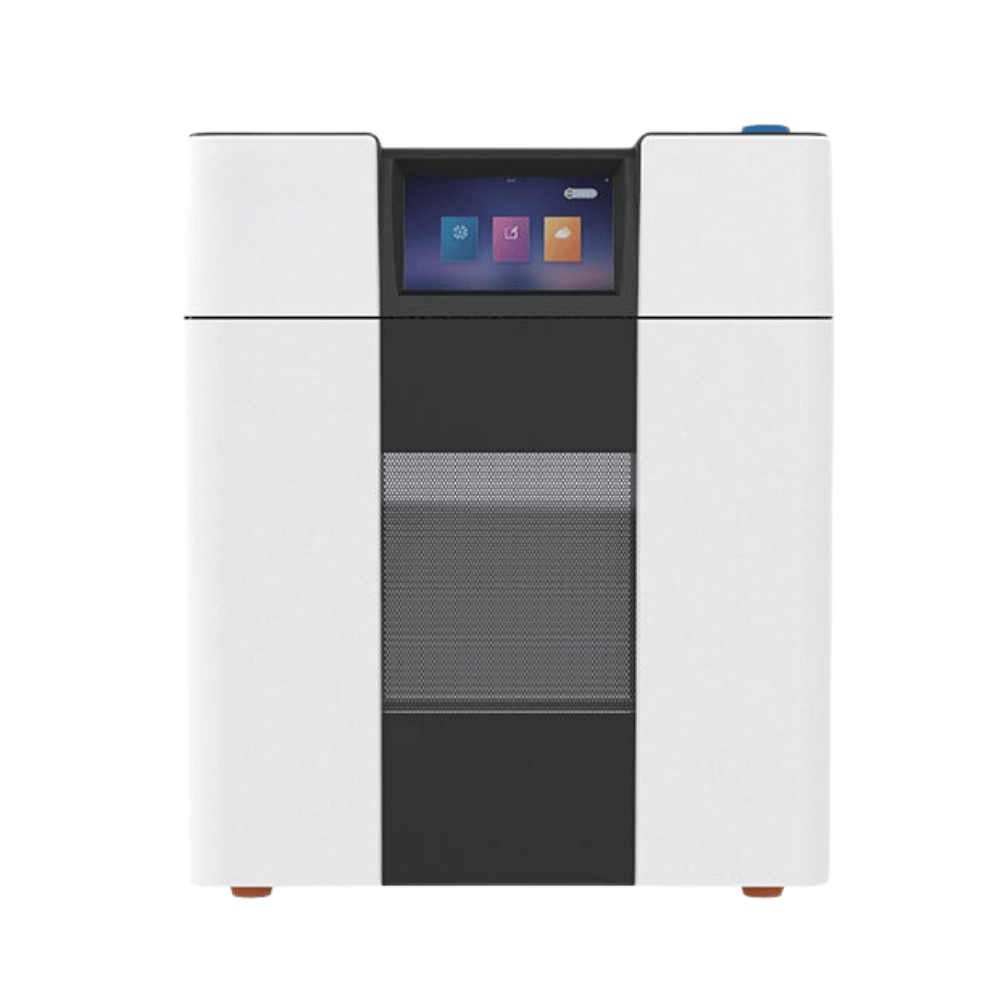

Microwave Digestion System, CA-MDS-TE6, CA-MDS-TE8
- Safe operation
- Good flexibility
- High durability
Description
Microwave Digestion System features safe operation, good flexibility, high durability. Its high-pressure digestion vessel design has greatly improved the digestion ability of tough samples, which is also equipped with multiple safety mechanisms to ensure the safe operation.
Features
- The fully-enclosed high-pressure digestion technology effectively improves the recovery rate and ensures the accuracy of results.
- Outer vessel made of high-strength aerospace composite fiber, with both mechanical strength and anti-corrosion ability.
- The patented safety bolt design can provide quantitative and safe pressure relief.
- The optical fiber and IR temperature measurement system provides precise temperature control while monitoring any abnormality, thereby ensuring accurate results and safety.
- High-precision semiconductor pressure sensor, with strong corrosion resistance and high mechanical strength.
- 7-inch LCD touch screen clearly displays the digestion status and experiment process.
- Powerful and convenient software
- “Cloud Service” function, the storage can beunlimitedly expanded while ensuring data security.
- Multiple functions of microwave digestion, microwave extraction and microwave synthesis.
Specifications
| Model | CA-MDS-TE6, CA-MDS-TE8 |
| Electricity | 220~240VAC 50/60Hz 20A |
| Microwave source | 2450MHz, high-energy microwave field transmission |
| Installed power | 1800W |
| Max. output power | 1000W |
| Microwave cavity | Large-volume 316L stainless steel cavity, internally and externally coated with multi-layer corrosion-resistant Teflon |
| Explosion-proof door design | Self-popping explosion-proof sliding furnace door, integrated structure design with prevention of microwave leakage |
| Pressure measurement system | High-precision semiconductor pressure sensor, with pressure control range: 0~15MPa, accuracy ±0.01MPa |
| Temperature measurement | Full vessel IR temperature control system, with temperature control range: -40~305°C, accuracy: ±0.1°C; |
| Control system | Optional multi-core integrated optical fiber temperature control system, with temperature control range: -40~305°C, accuracy: ±0.1°C |
| Passive protection system | COT real-time abnormality monitoring system, which can automatically beep and cut off the microwave when an abnormality occurs to any reaction vessel; Safety Bolt design, providing vertical and quantitative release of overpressure. |
| Software system | Android system; Built-in method library; Cloud methods, data storage and sharing; Wi-Fi remote connection, etc. |
| Communication interface | USB interface and internet interface |
| Exhaust system | High-power corrosion-resistant turbo fan, high-efficiency turbulent air cooling, less than 15 minutes cooling down to room temperature |
| Working environment | 0~40°C / 15~80%RH |
| Dimensions(W*D*H) | 480×560×575mm |
| Net weight | 45kg |
| Model of reaction vessel | MP-100 |
| Batch capacity | Standard configuration 6 vessels(MDS-TE6),
up to 8 vessels (MDS-TE8) |
| Material of inner vessel | TFM |
| Material of outer vessel | Aerospace composite fiber |
| Rotor frame type | Single Frame type |
| Volume of reaction vessel | 100mL |
| Designed temperature | 300°C |
| Designed pressure | 15MPa (2,200psi) |
