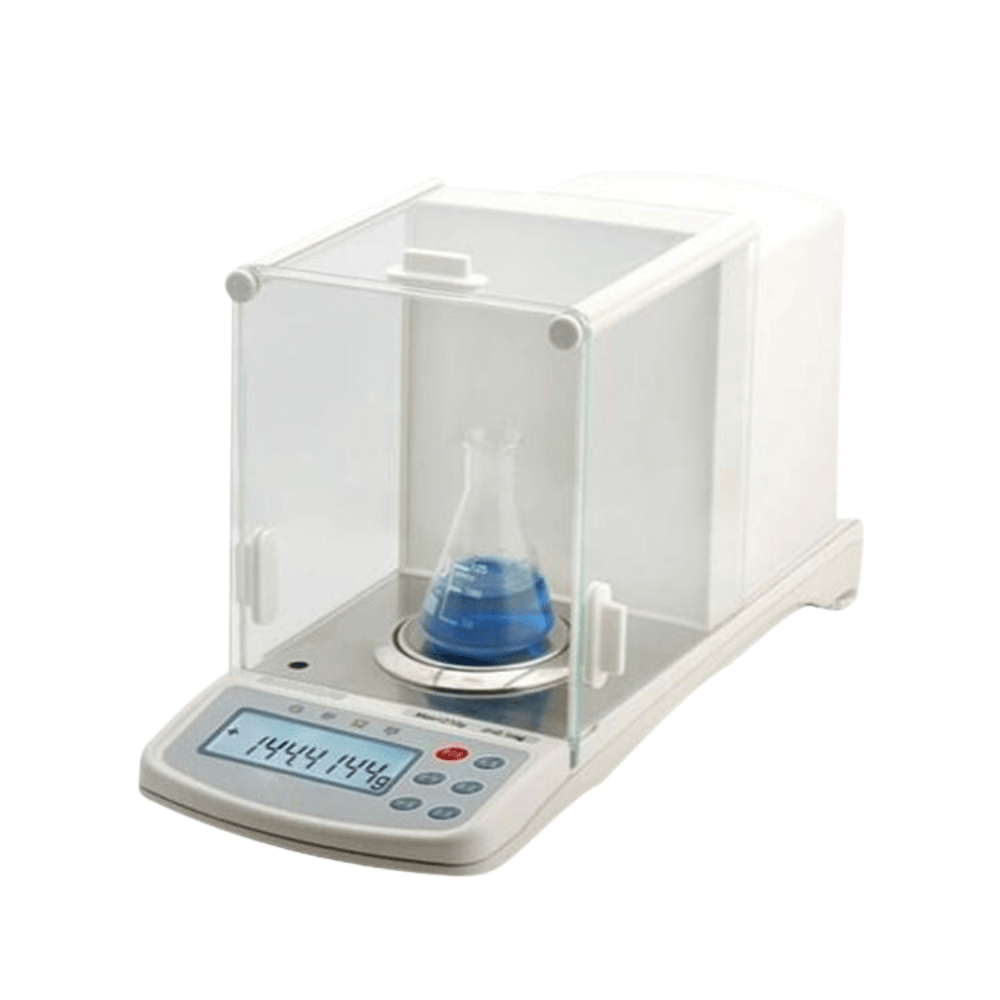

Micro Analytical Balance, CA-BA-5B Series

  • Readability: 0.01mg/0.1mg
  • Max. Capacity: 30g/200g, 50g/200g, 80g/200g, 110g/200g, 120g/200g,160g,180g,200g
  • Calibration method: External calibration
  • Tare Function/Counting
  • Overload Alarm
SKU: CA-BA-5B Series Category:

Description



High-precision electronic balances are widely used in scientific research, education, medical care, metallurgy, agriculture and other industries for measurement, analysis, and teaching. It is a high-precision weighing electronic balance produced by the introduction of foreign advanced technology. The key components are imported products. It has fast weighing speed, high accuracy, good stability, high quality and low price, simple operation and easy maintenance, and can be connected with external equipment such as computers and printers to improve work efficiency.

Advantages

  • Rear mounted electromagnetic force sensor, three door large windscreen, spacious weighing room. The internationally recognized high sensitivity and high stability rear mounted electromagnetic force sensor technology is adopted to obtain higher resolution.
  • Fully automatic one-key internal calibration/external calibration technology, automatic timing calibration, automatic temperature change calibration. All-round elimination of errors due to temperature, environment, time, etc., to further optimize the performance of the balance.
  • Large LCD white backlit display. The display mode can be switched between light and dark environments at will to protect eyesight.
  • A variety of measurement units and counting weighing methods, unit conversion and data output: grams, carats, ounces, counting, percentage weighing, etc., suitable for different measurements.
  • With overload / underload alarm, temperature compensation, full range peeling, accumulation / subtraction, bottom hook weighing (optional bottom hook).
  • Equipped with RS232 output interface, it can be externally configured with computers, printers, etc. to fully meet the needs of laboratory quality analysis.

Specifications



Model CA-BA-T30-5B CA-BA-T50-5B CA-BA-T80-5B CA-BA-T110-5B CA-BA-T120-5B CA-BA-T160-5B CA-BA-T180-5B CA-BA-T200-5B
Max.

weighing

30g / 200g 50g / 200g 80g / 200g 110g/ 200g 120g/ 200g 160g 180g 200g
Readability



0.01mg/0.1mg 0.01mg/0.1mg 0.01mg/0.1mg 0.01mg/0.1mg 0.01mg/0.1mg 0.01mg 0.01mg 0.01mg
Scale size Φ90mm
Weighing chamber size 190*155*210 mm
Dimension 460*205*280 mm
Packing size 570*370*450
Temp. 0℃~45℃
Humidity 20%RH—85%RH
Calibration method External calibration
Weight 9.1Kg
Display mode Large LCD display
Computer interface RS232
Weighing chamber Three-door large windscreen
Bottom hook/

Hydrostatic bracket

Optional (1 type)
Unit conversion Gram / carat / pound / ounce
Metering Count / percent
Number of keys 6
Function keys Switch / peeling / auto calibration / function
Double packing outer box size 580*400*490 mm
Double pack weight 12Kg
