Description

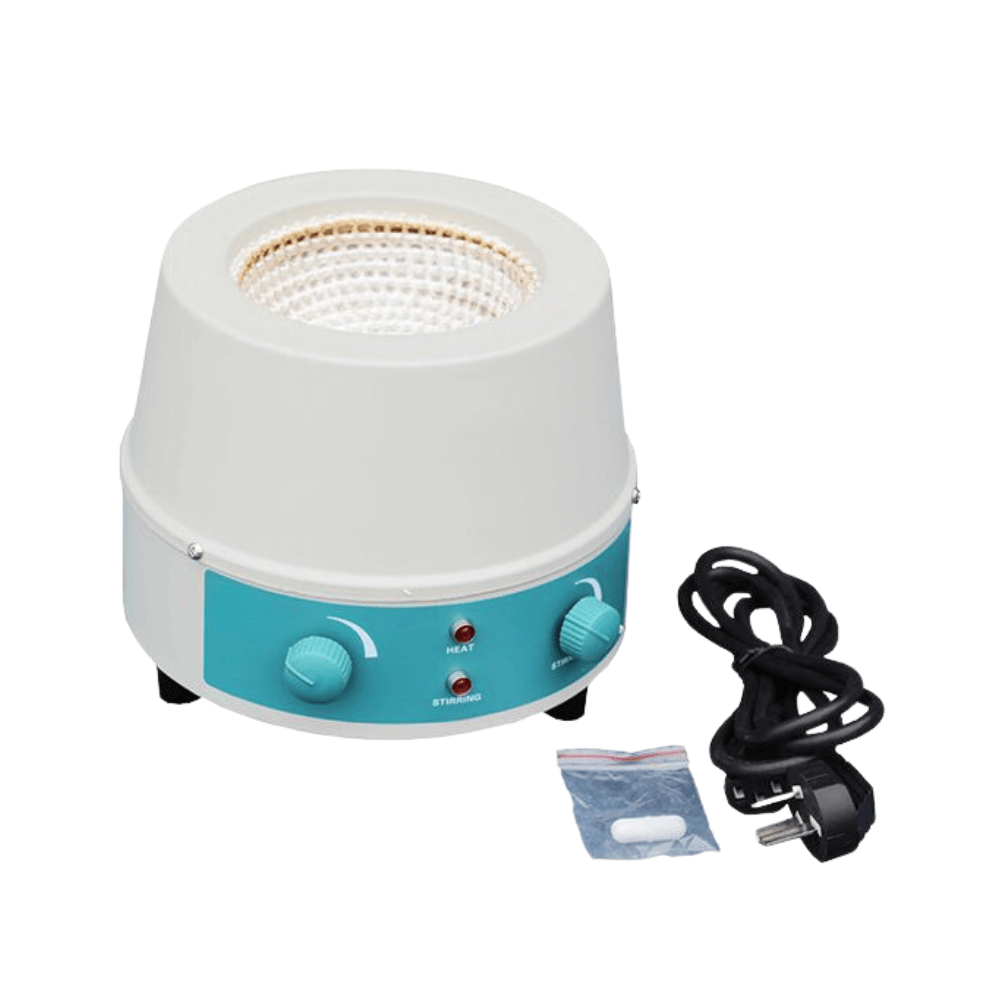

Product Description:
Heating and stirring can be used simultaneously, and step-less speed is adjustable.
Specifications
Model | CA-HMSA-1 | CA-HMSA-2 | CA-HMSA-5 | CA-HMSA-10 | CA-HMSA-20 | CA-HMSA-40 | CA-HMSA-60 | CA-HMSA-100 | HMSA-200 | HMSA-400 | |
Function
|
Capacity(ml) | 50 | 100 | 250 | 500 | 1000 | 2000 | 3000 | 5000 | 10000 | 20000 |
Heating Mode | Surface heat-conduction | ||||||||||
Surface Max. Temp.( ℃)
|
450℃ | ||||||||||
Speed range | 0~1600rpm | ||||||||||
Structure
|
Heating element | Nichrome wire | |||||||||
Stir bar | PTFE | ||||||||||
Shell(Insulation Layer) | High quality aluminum silicate cotton | ||||||||||
Motor power | 0.01kW | ||||||||||
Heating power (kW) | 0.08 | 0.1 | 0.15 | 0.25 | 0.35 | 0.45 | 0.6 | 0.8 | 1.2 | 2.5 | |
Controller | Working Mode | Continuous | |||||||||
Specification
|
Exterior Size (mm) | ¢220×165 | ¢280×220 | ¢330×230 | ¢340×245 | ¢350×250 | ¢425×320 | ¢470×340 | |||
Packing Size (mm) | 230×230×195 | 290×290×300 | 340×340×350 | 360×360×300 | 390×390×310 | 450×440×360 | 510×510×380 | ||||
Voltage(V) | 100~120V or 200~240V | 200~240V | |||||||||
N.W.(Kg) | 2.5 | 5.5 | 6.5 | 7.5 | 8 | 9.8 | 16 | ||||
G.W. (Kg) | 2.8 | 6 | 7 | 8 | 9.2 | 12 | 20 |
