Description

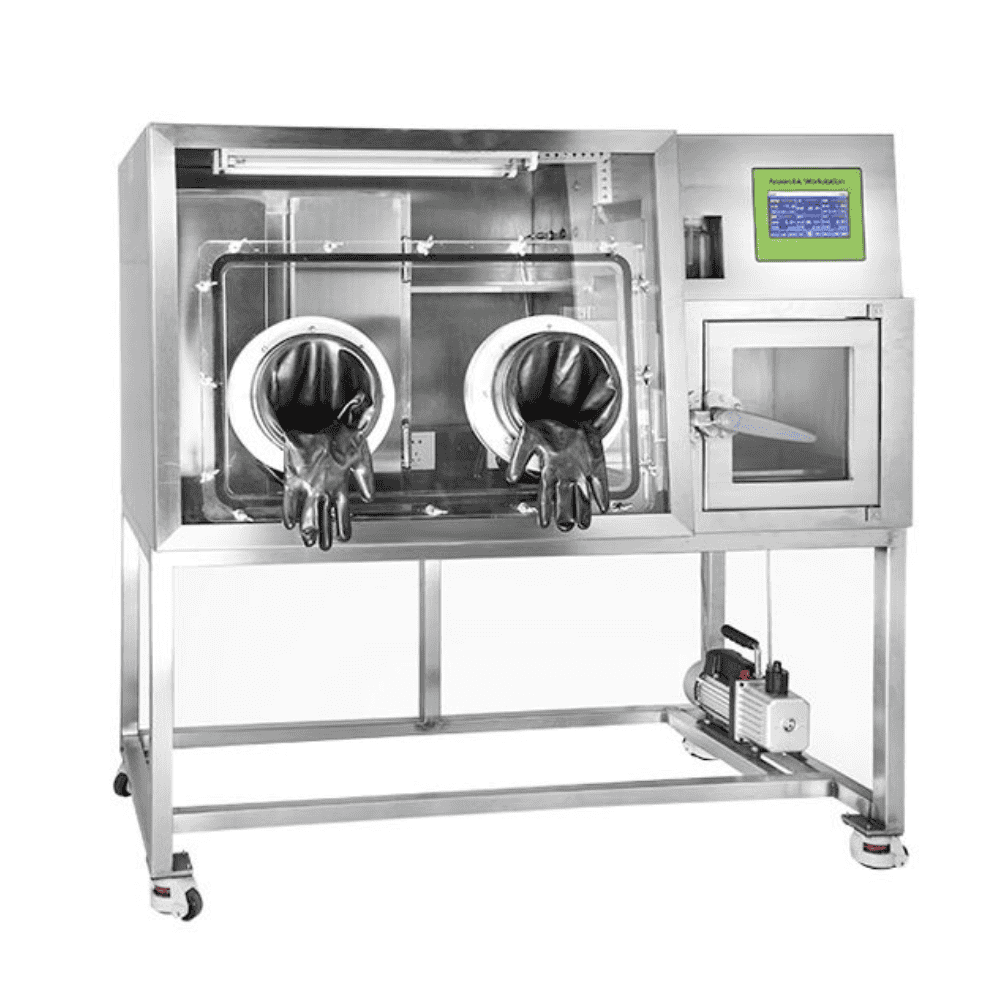

- This workstation integrates CO2, Constant temperature, and humidity, an anaerobic incubator.
- It can operate as an anaerobic or micro-oxygen chamber (oxygen concentration: 0-10%).
- Fully automatic humidity control system to avoid drying of the Petri dishes.
- Sample transfer: can transfer 40 pcs of 90mm plates at a time; a single dish transfer device is optional.
- Available with an automatic sleeve gassing system operated by a foot switch, so you can control vacuum and Nitrogen gas filling efficiently.Equipped with a standard external vacuum pump.
- Using a high-efficiency palladium catalyst to keep the oxygen concentration less than 0.1% without frequent activation.
- UV lamp for sterilization.
- Fully automatic control for gas replacement path, with positive pressure and negative pressure protection.
- Can perform CO2, humidity, and temperature control.
- Unique oil bottle type pressure relief design, protects internal positive pressure and prevents air leakage.
- With a number of low-pressure, over-temperature protection devices.
- The whole front cover can be lifted off for placing large instruments or thorough cleaning.
- Equipped with a standard power socket.
- The touch screen directly displays the oxygen percentage of the operating room, easy to observe.
- Latex gloves for comfortable and flexible operation.
- Bare-hand operating system is optional. Ensure comfortable operation with no skin allergies.
Specifications
| Model | CA-ICB-AN2 |
| Time for creating an anaerobic state in the sample chamber | ＜5 minutes |
| Time for creating an anaerobic state in the operation chamber | ＜1hr |
| Anaerobic environment maintenance time | ＞12hrs(when no supply of mixed gas) |
| Temperature Range | RT+3~60℃ |
| Temperature Stability | ＜±0.3℃ |
| Temperature Uniformity | ＜±1℃ |
| CO2 Range | 0～20% |
| CO2 Control Accuracy | ±0.1%(imported sensor) |
| Humidity Control Range | 50~90%RH |
| Humidity Fluctuation | ±3%RH |
| Power Rating | 1500W |
| Power Supply | AC 220V,50HZ(can customized) |
| Interior Chamber Size (W×D×H)cm | 42×29×47.5 |
| Operation Chamber Size (W×D×H)cm | 95×67×75 |
| Sampling chamber size (W×D×H)cm | 40×30×32 |
| Shell material | All 304 stainless steel |
