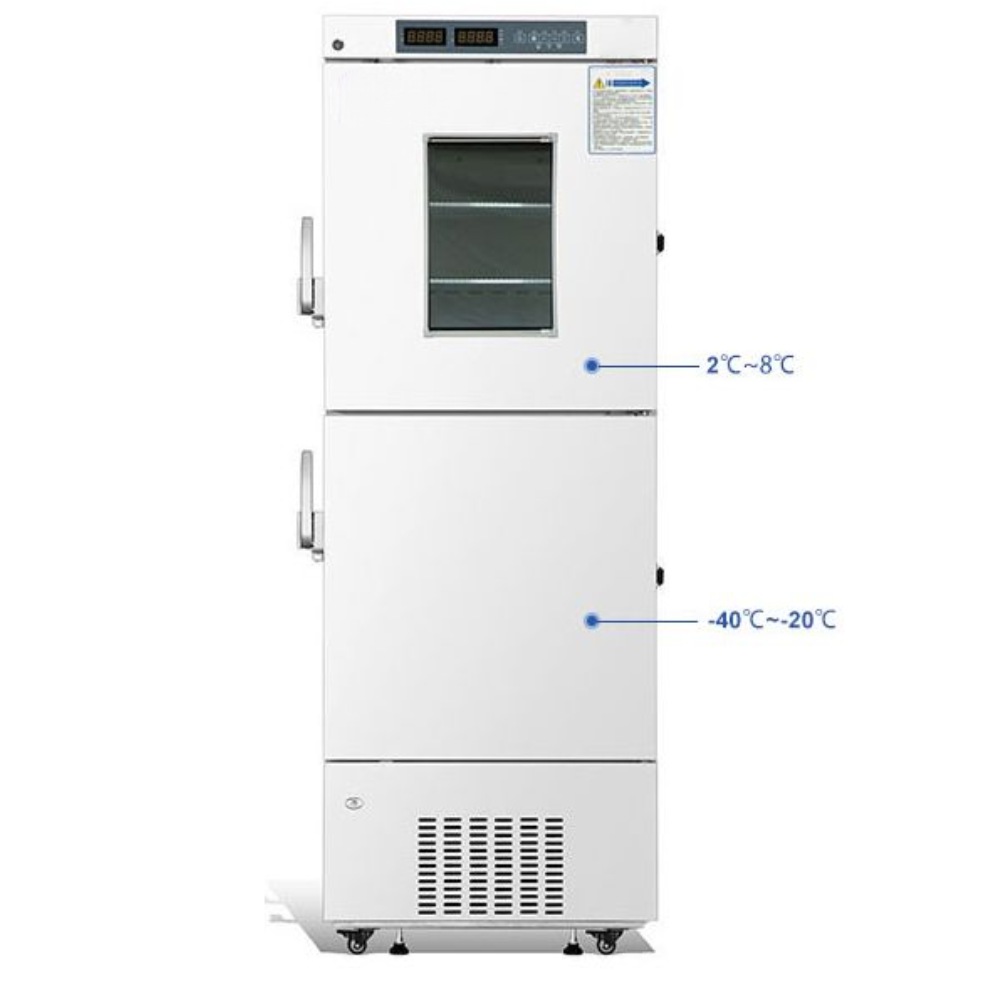

Combination Refrigerator Freezers have a dual container structure that allows for the refrigeration and freezing of laboratory samples and materials using the same unit.
Temperature range:
Refrigerator Room: 2℃~8℃.
Freezer Room: -20℃~-40℃
Combination Refrigerator Freezers have a dual container structure that allows for the refrigeration and freezing of laboratory samples and materials using the same unit. Key Features 1. Temperature range: Refrigerator Room: 2℃~8℃. Freezer Room: -20℃~-40℃
2. Independent temperature display, 2 independent doors: heated foam glass door + foamed door.
3. 2 Shelves in refrigerator room; 6 drawers in the freezer room.
Specifications
Model
CRF40-370
Specifications
Shelf (drawer)
3 Shelves/6 Drawer
Cooling method
Direct cooling
Defrost
Manual
Refrigerant
R600a
R290
Power consumption (kWh/24h)
4.15
Noise（db)
50
Ambient temperature（℃）
10~32℃
Temperature range（℃）
F: -20℃~-40℃ R: 2℃~8℃
Cooling system
Compressor brand/QTY
CUBIGEL/1; HUAYI/1
Sensor
Wire tube
Temperature controller
NTC
Display
Microprocessor
Power
Voltage/frequency(V/Hz)
220/50Hz
Power(W)
300W
Current(A)
2.45A
Material
Inside material
Color sprayed steel
Outside material
Color sprayed steel
Insulation
PURF
Size
Capacity(L/cu.ft)
368/12.99
NW./GW.(kg)
137/166
Exterior size(W×D×H)(mm)
720*830*1870
Interior size(W×D×H)(mm)
F: 580×626×625;
R: 466×636×625
Package size(W×D×H)(mm)
775*920*1990
CBM
1.43
20GP/40GP/40HQ
14/39/39
Alarm
High/low temperature
Y
Power off
Y
Sensor malfunction
Y
Ambient temperature（℃）
/
Abnormal voltage
Y
Temperature controller malfunction
/
Door ajar
Y
Power failure backup system(alarm)
8H
Accessories
Caster
Y
Test hole
2/25MM
USB port
Y
Temperature Data logger
Optional
Remote alarm
Y
