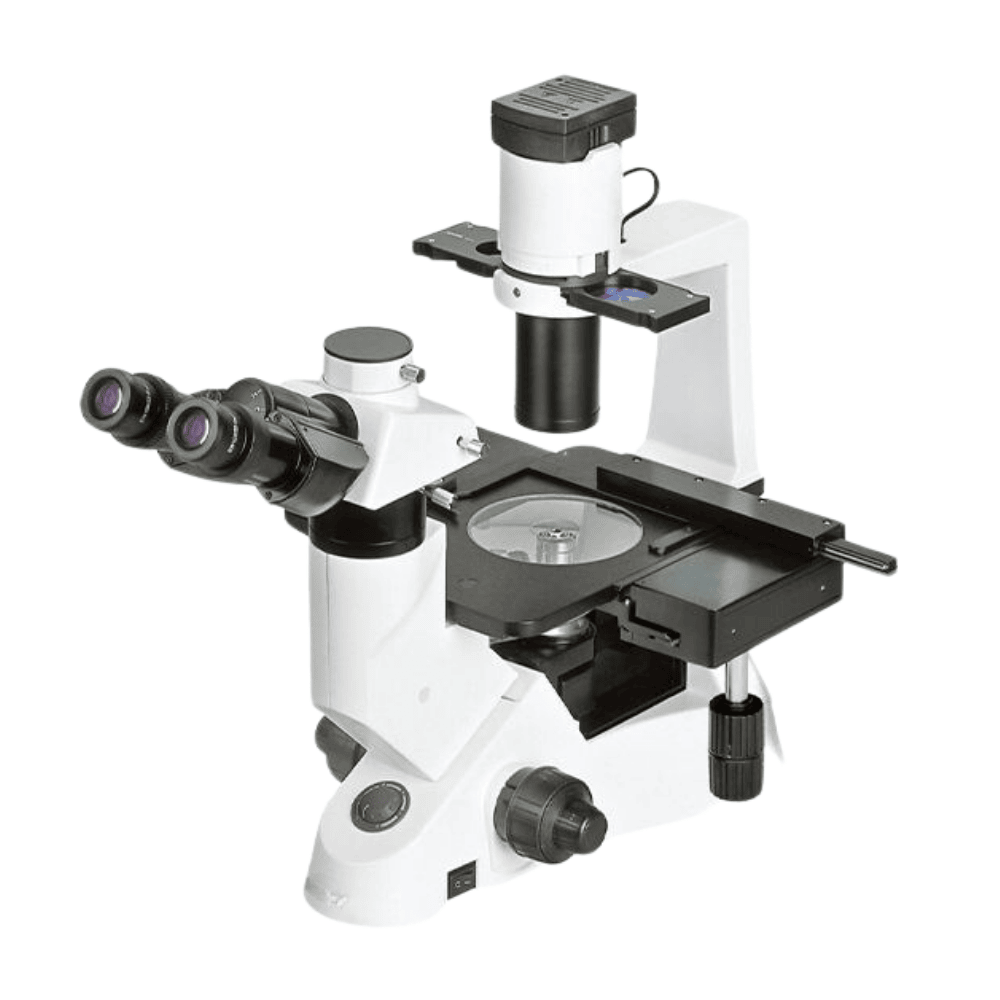

Inverted Trinocular Microscope, CA-MSC-IV100Y
- Infinite optical system
- High-eye point, Extra wide field eyepiece EW10X/22
Description
This microscope has an innovative stand structure, clear specimen observation, and convenient operation. It is specially designed for cell culture observation.
Features
- Excellent optical function with infinitive optical system.
- WithLWD infinitive plan objective making viewing field flatter and brighter, contrast sharper, living cell observing easier.
- With pre-centerable phase annulus, available to observe low contrast or transparentspecimen.
- Advanced and reliable mechanicalstage with knob height and tightness adjustable.
- Different holders for various observations.
Specifications
| Model | MSC-IV100Y | |
| Optics | Infinite optical system | |
| Observation Tube | Tilting trinocular, interpupillary 48-75mm | |
| Viewing Head | Seidentopf head, inclined at 30° | |
| Eyepiece | High eye point, extra wide field eyepiece EW10X/22 | |
| Objective | LWD Infinitive Plan Objective | 4X/0.1 WD 17.3mm |
| 40X/0.6 WD 2.1mm | ||
| *10X/0.25 WD 10mm | ||
| *20X/0.4 WD 5.1mm | ||
| Infinitive Plan Phase Objective | PH10X/0.25 WD 10mm | |
| PH20X/0.4 WD 5.1mm | ||
| *PH40X/0.6 WD 2.1mm | ||
| Nosepiece | Quintuple nosepiece | |
| Stage | Plain stage 160X250mm | |
| Glass insert | ||
| Auxiliary stages 70X180mm | ||
| *Attachable mechanical stage, X-Y coaxial control, Moving range 120X78mm | ||
| *Terasaki holder | ||
| *φ35mm Petri dish holder | ||
| *φ54mm Slide glass holder | ||
| *φ90mm Petri dish holder | ||
| Condenser | WLWD Condenser NA0.3, LWD72mm
(without condenser 150mm) |
|
| *Centering Telescope | Centering telescope(φ30mm) | |
| Phase Annulus | 10X-20X, 40X Phase annulus plate | |
| *10X-20X, 40X Phase annulus plate(Center adjustable) | ||
| Focusing | Coaxial coarse and fine adjustment, Vertical objective movement
Coarse stroke: 37.7mm per rotation, Fine stroke: 0.2mm per rotation |
|
| Illumination | 6V 30W Halogen lamp | |
| Filter | Diameter 45mm, blue, green and ground glass | |
| Package Dimension (W*D*H)(mm) | 490*430*690 | |
| G.W.(kg) | 14.5 | |
| *Optional | Photo attachment, video adapter with C mount, inverted fluorescent attachment | |
*Optional configuration
