Description
Optional camera
Specifications

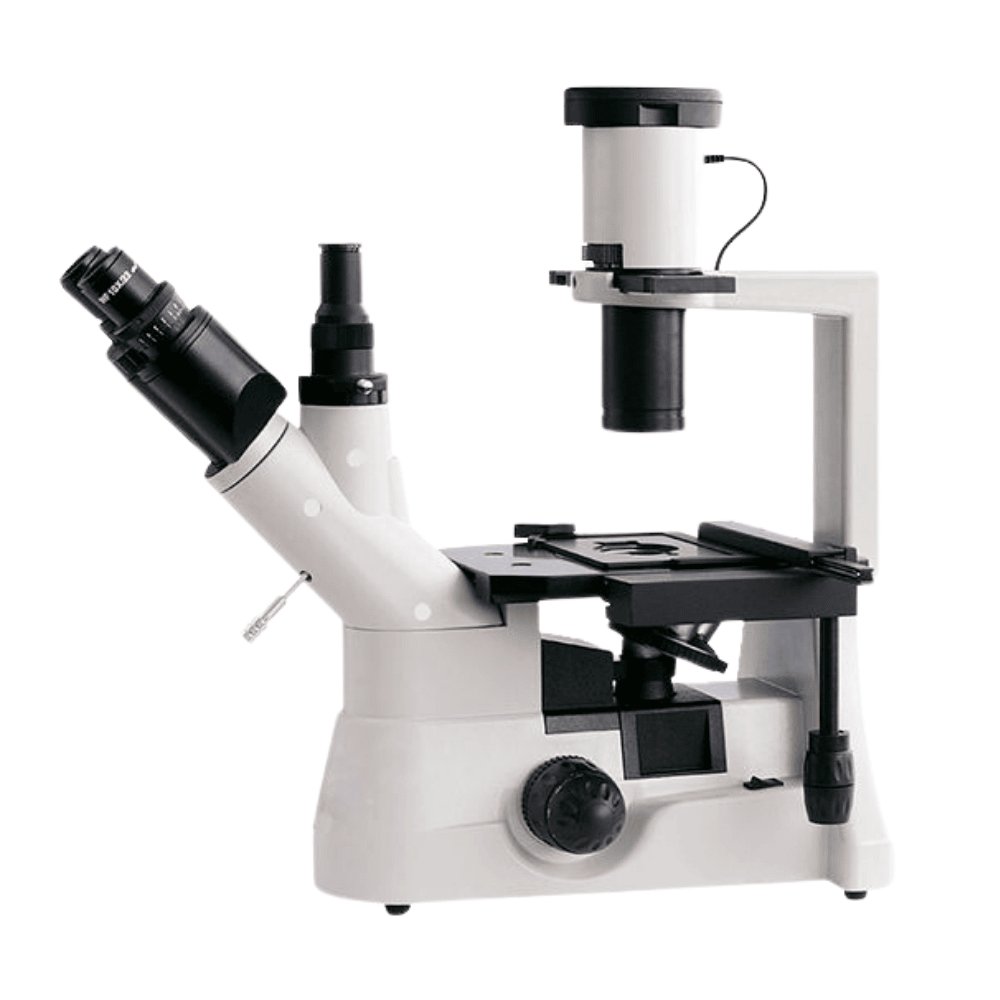

| Model | MSC-IV403 |
| Optics | Finite Distance Optical System |
| Observation Tubes | Tilting binocular, interpupillary 50-75mm |
| Viewing Head | Seidentopf head, inclined at 45° |
| Optical Coating | Transmittance ≥ 95% |
| Eyepiece | Wide field eyepiece WF10×20mm |
| Objective | LWD plan objective LWDPL4X10X20X40X |
| Nosepiece | Quadruple nosepiece |
| Stage | Double layers mechanical stage, stage size: 242mm× 172mm, central stage: Φ110mm, moving range: 75mm × 50mm |
| Condenser | N.A.0.3Abbe condenser W.D .75mm |
| Focusing | Coaxial coarse&fine focusing adjustment with rack and pinion mechanism fine focusing scale value 0.002mm |
| Illumination | Halogen bulb12V/30W,adjustable brightness |
| Electricity | 100-240V AC,50/60Hz |
| Package Dimension (W*D*H) (mm) | 770*330*480 |
| Gross Weight (Kg) | 13 |
| *Optional | Photograph connecting tube, adapter with MD or PK mount, 4X photograph |
Reviews
There are no reviews yet.
