Description

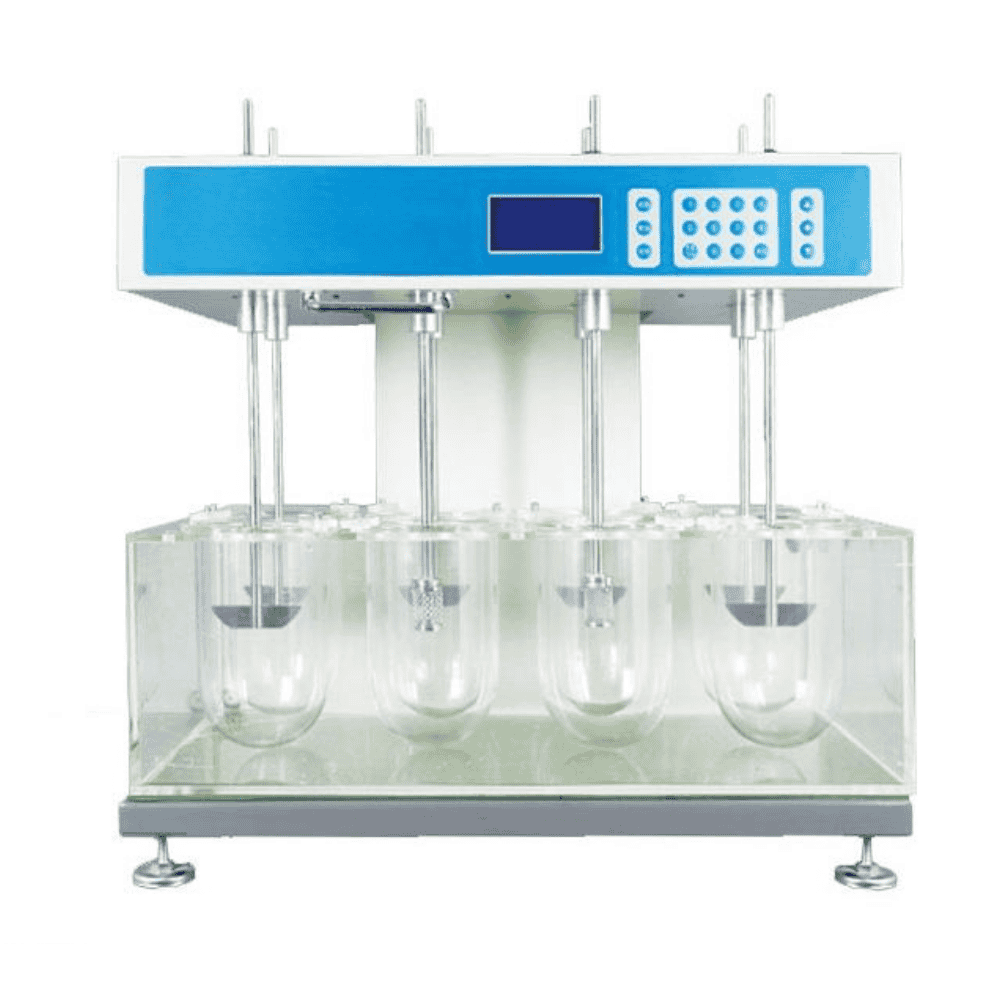

Dissolution Tester
Range of application：
It’s used to examine the dissolving speed and degree of solid preparations like drug tablets or capsules in the specified solvents. DIST-8P dissolution tester is a new type of drug dissolution tester which is developed and produced by our company; it adopts classical modelling design and is featured by high cost performance, stability, reliability, simple operation and durability.
Main features:
- DIST-8P is a double-functional model with an electric lifting head and head overturn; it only needs to manipulate the keyboard when the paddle rod or basket rod is replaced. The head can be lifted automatically; the head can be overturned continuously based on the lifted head to make the work of paddle change more convenient and handy.
- Available for the installation of 8 basket rods or paddle rods.
- Available for the installation of 8 new dissolution cups with a height of 185mm and shading dissolution cups as well.
- A friendly human-computer interface with simple and convenient operation.
- All the working parameters can be preset and saved automatically, without the need to be set repeatedly when the instrument is started next time
- Accurate rotating speed, steady operation and low energy consumption.
- The thermostatic water bath features a built-in integrated temperature sensor and a new software and hardware temperature measurement and control mode, characterised by fast temperature rise and high precision. Temperature deviation can be conveniently corrected using the software.
- Independent operation of startup, pause and reset for experimental timing.
- Automatic protection functions such as self-inspection, fault alarm and over-temperature protection, etc.
- The paddle rod, basket rod and basket turning body are all made of stainless steel material that meets the requirements of the Chinese Pharmacopoeia in quality and performance.
Specifications
Main technical indexes of dissolution tester:
| Model | CA-DIST-8P |
| The amplitude of the swing of the stirring paddle | ≤0.3mm |
| The amplitude of the swing of the rotation basket | ≤0.8mm |
| Deviation of the rotating rod and axle of the dissolution cup | ≤1mm |
| Speed adjustable range | 20-200 rpm |
| Rotating speed resolution | 1 time/min |
| Water bath temperature adjustment range | room temperature -45ºC |
| Temperature resolution | 0.1ºC |
| Temperature control accuracy | ≤±0.3ºC |
| Number of sampling periods | 9 different sampling periods can be preset. |
| Time of sampling period | 1-999min optional for each period，9 sampling periods can be counted down by sections. |
| Timing error | ±0.5min |
| Pharmacopoeia parameter calling | The instrument saves 300 dissolution test parameters in the Chinese Pharmacopoeia, which can be called randomly. |
| Large screen liquid crystal display and intelligent menu operation. | |
| The head can lift and descend automatically, and it has an overturn function (a model whose control is very convenient). | |
| An electronic sensor can monitor the temperatures of various points in a water bath case. | |
| Standard configuration | 8 paddles and 8 cups |
| Small cup accessories can be optional. | |
| Electrical heating power | 1100W |
