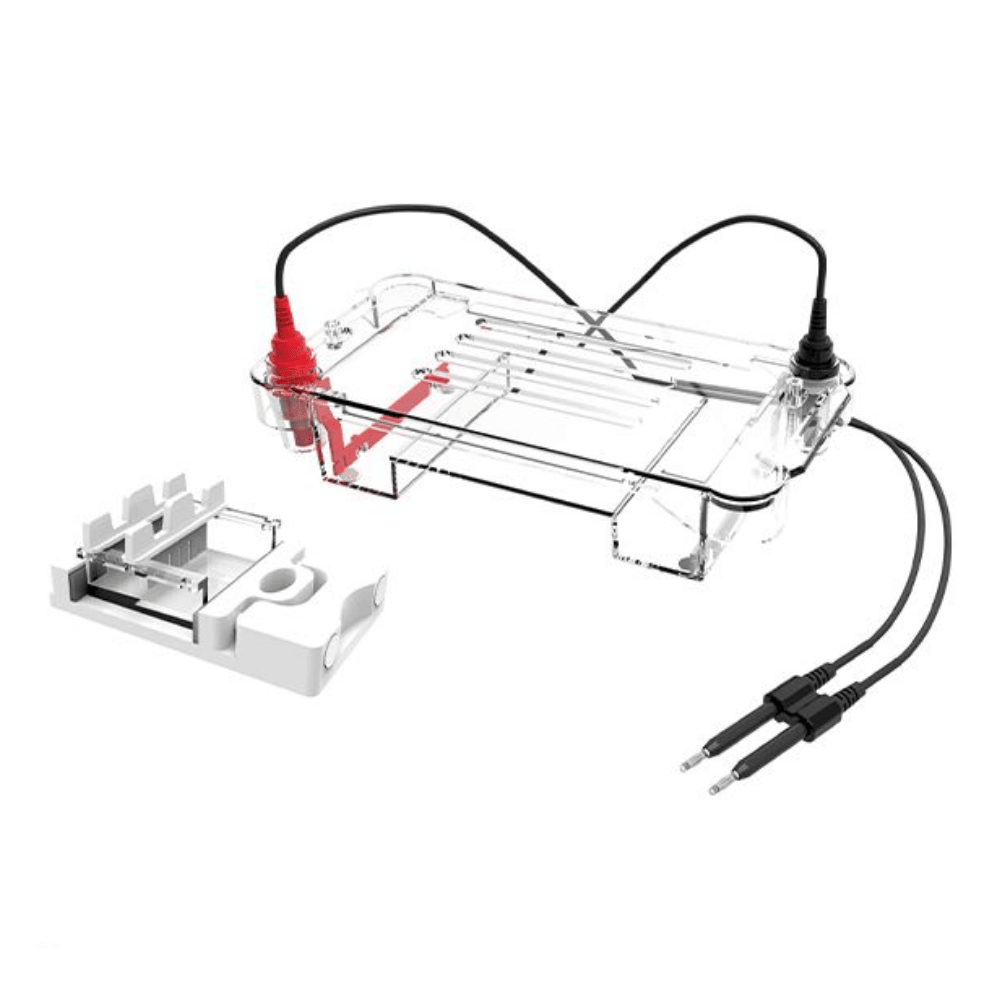

Horizontal Electrophoresis Cell, CA-GEP-HH-SUB01
- Main body groove (upper cover): one
- Main tank (lower tank): one
- Glue maker: one
Description
Usage: This product is suitable for rapid separation, identification, preparation of DNA and determination of its molecular weight.
Features
Polycarbonate injection molding at one time, no leakage.
The design of cooling holes on the upper cover can effectively avoid condensation of water vapor.
Special telescopic elastic glue maker ensures cleanliness and no glue leakage.
Limit function, will not make the positive and negative electrodes installed backwards.
High-flexibility wire, open cover and power-off design to ensure safety;
The electrode can be replaced for easy maintenance;
99.99% high purity platinum electrode has the best conductivity and corrosion resistance.
Specifications
| model | parameter |
| GEP-HH-SUB01 agarose horizontal electrophoresis tank | Basic parameters: |
| Overall dimensions (l× w× d): 180 * 90 * 70 | |
| Gel area (l× w): 75mm * 60mm | |
| Sample comb 1.0/1.5mm, 6/11 teeth | |
| Total buffer capacity: about 300ml；; | |
| Weight:1.4kg | |
| Package Dimension (W*D*H) (mm)：330*320*220 | |
| Features: Polycarbonate injection molding at one time, no leakage. | |
| The design of cooling holes on the upper cover can effectively avoid condensation of water vapor. | |
| Special telescopic elastic glue maker ensures cleanliness and no glue leakage. | |
| Limit function, will not make the positive and negative electrodes installed backwards. | |
| High-flexibility wire, open cover and power-off design to ensure safety; | |
| The electrode can be replaced for easy maintenance; | |
| 99.99% high purity platinum electrode has the best conductivity and corrosion resistance. | |
| Usage: This product is suitable for rapid separation, identification, preparation of DNA and determination of its molecular weight. |
Standard configuration
| Name | Quantity |
| Upper cover of electrophoresis cell
(including wires) |
1set |
| Lower shell of electrophoresis cell
(including electrodes) |
1set |
| Gel-making box | 1pc. |
| Gel tray | 1pc. |
| Sampling comb 1.0mm 6teeth | 2pcs. |
| Sampling comb 1.0mm 11 teeth | 2pcs. |
| Sampling comb1.5mm 6 teeth | 2pcs. |
| Sampling comb 1.5mm 11teeth | 2pcs. |
