Description

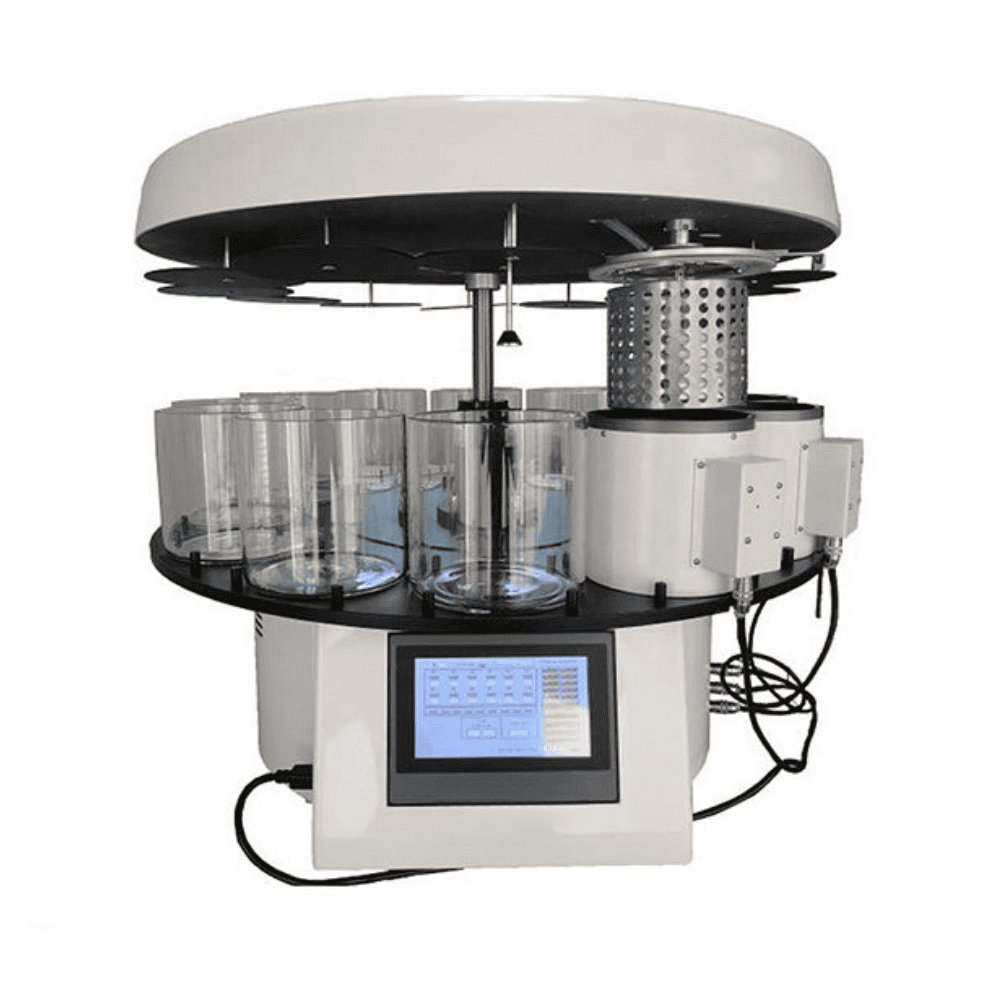

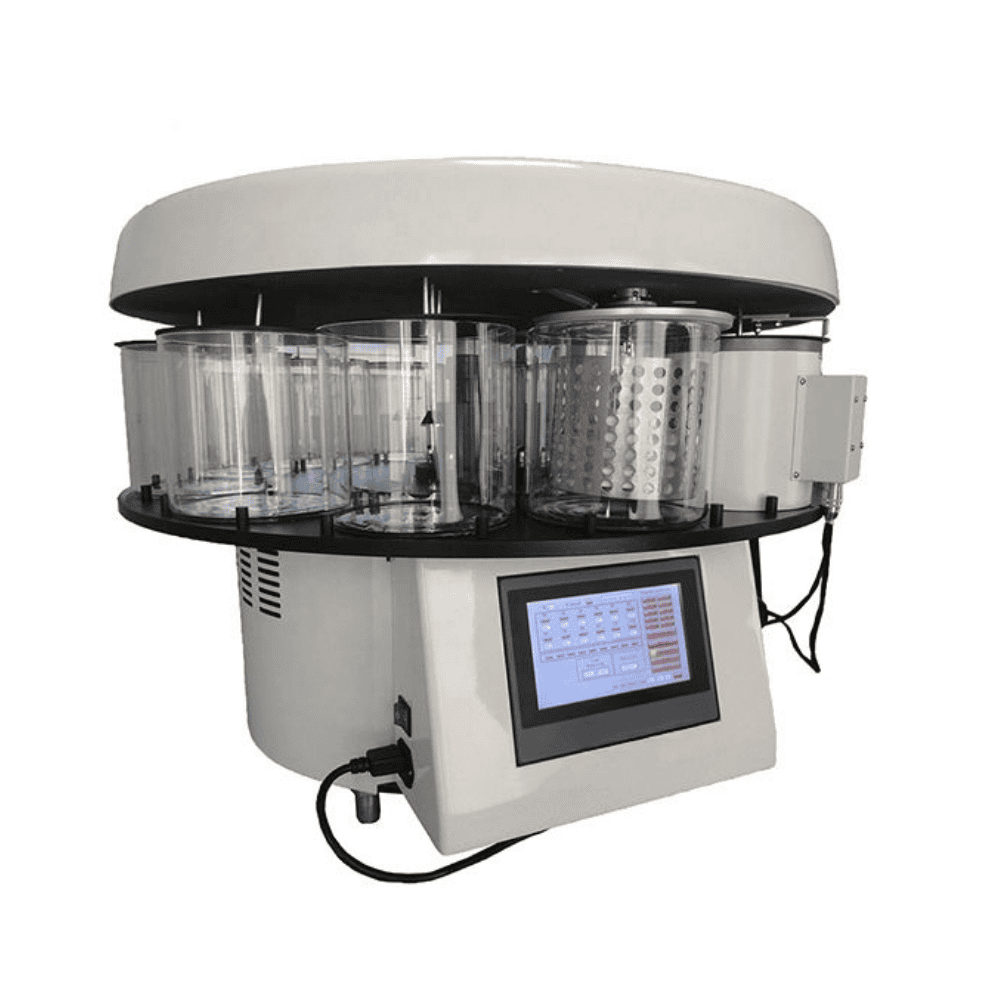

- CA-TSP-6A/TSP-6B Automated Tissue Processor is an advanced microprocessor-controlled tissue-processing device.
- With its ideal ergonomic design, reasonable structure, easy operation, prompt processing, and high QPR, this device is an ideal choice for dehydrating human or animal/plant tissue in the pathology laboratories of hospitals, colleges/universities, and research institutes.
- The entire operation process is controlled by a PLC through a touch screen, easy to operate, reliable and stable
- The tissue specimen basket can be placed in a cup at any station by a mechanical arm, flexible and easy to operate
- Multiple safety protection mechanisms, including power failure alert and operation error protection
- Stirring during the dehydration process ensures adequate contact of tissue with reagents and paraffin to improve dehydration performance
- A constant temperature control system precisely controls the temperature of paraffin cup and the inner surface of the cup is TEFLON-coated, contamination-resistant, and corrosion-resistant
- Nine 2.3L ( or volume of 1.2L) medical glass beakers are used as processing cups, allowing clear observation of tissue changes during the operation
- To enhance dehydration strength, this device is equipped with a vacuum pump. Other than paraffin cups, optional vacuum-assisted dehydration of all cups can be individually preset (only TSP-6B)
Specifications
| Model | CA-TSP-6A | CA-TSP-6B |
| Tissue Processing Steps | 12 steps | |
| Number of Reagent Cups | 9, with a volume of 2.3L (1.2L for a small capacity volume) | |
| Number of Paraffin Cups | 3, with a volume of 1.8L (1.0L for asmall capacity volume) | |
| Temperature Range | 45-85℃ (±3℃) | |
| Program | 10 programs | |
| Duration in each cup | 0-10 hours | |
| Maximal turn-on delay | 1 month | |
| Minimum time interval setting | 1 min | |
| Frequency of basket stirring | ≥10 times/hour, 30 sec for each time | |
| Power | 1000W (2.3L) 500W (1.2L) | |
| Size of Basket | Φ95×80mm; | |
| Dimensions | 670 (Diameter)× 540 (Height, 680 mm at the highest point) | |
| Working Voltage | AC 220V±10% 50Hz (standard model), an additional converter is needed for 110V | |
| Package Dimension (W*D*H)(mm) | 1210*920*820mm | |
| Net Weight | 60kg | |
| G.W.(kg) | 175Kg | |
| Temperature Range | / | 45-85℃ (±3℃) |
| Vacuum Degree | / | 0.053MPa |
