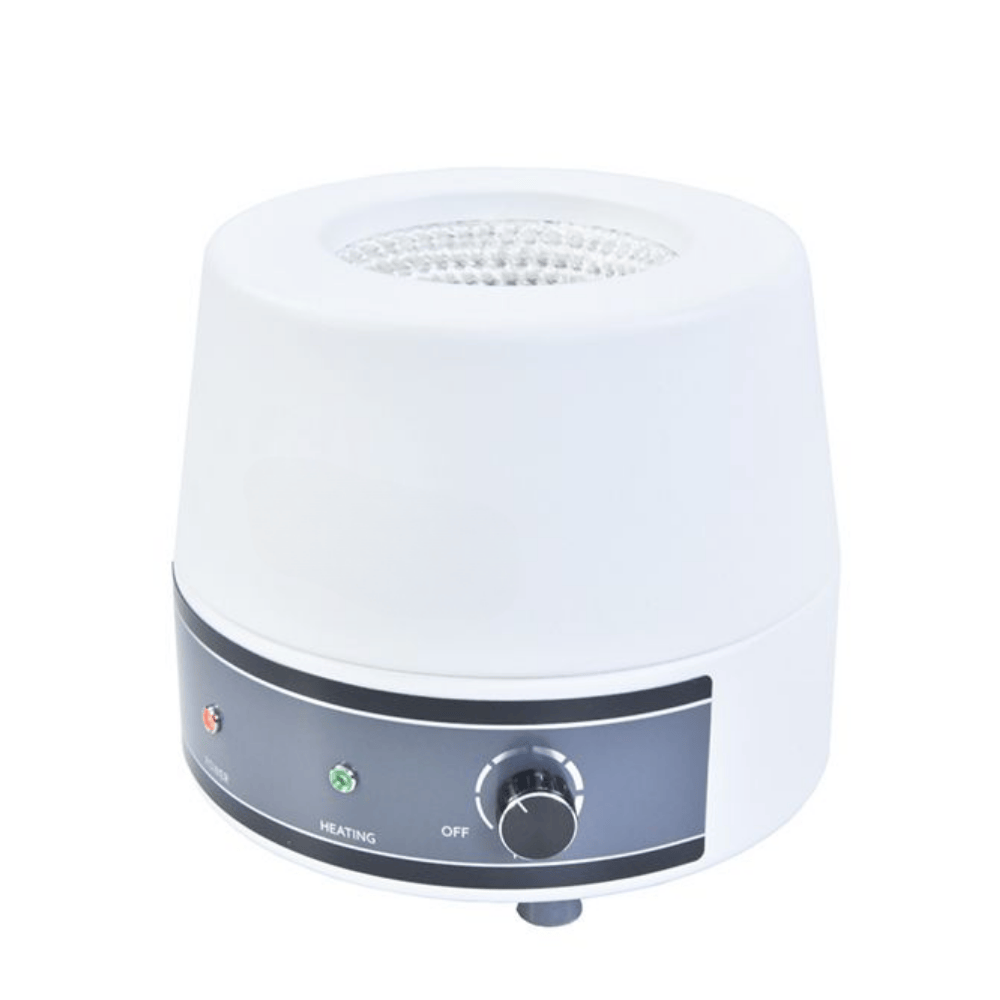

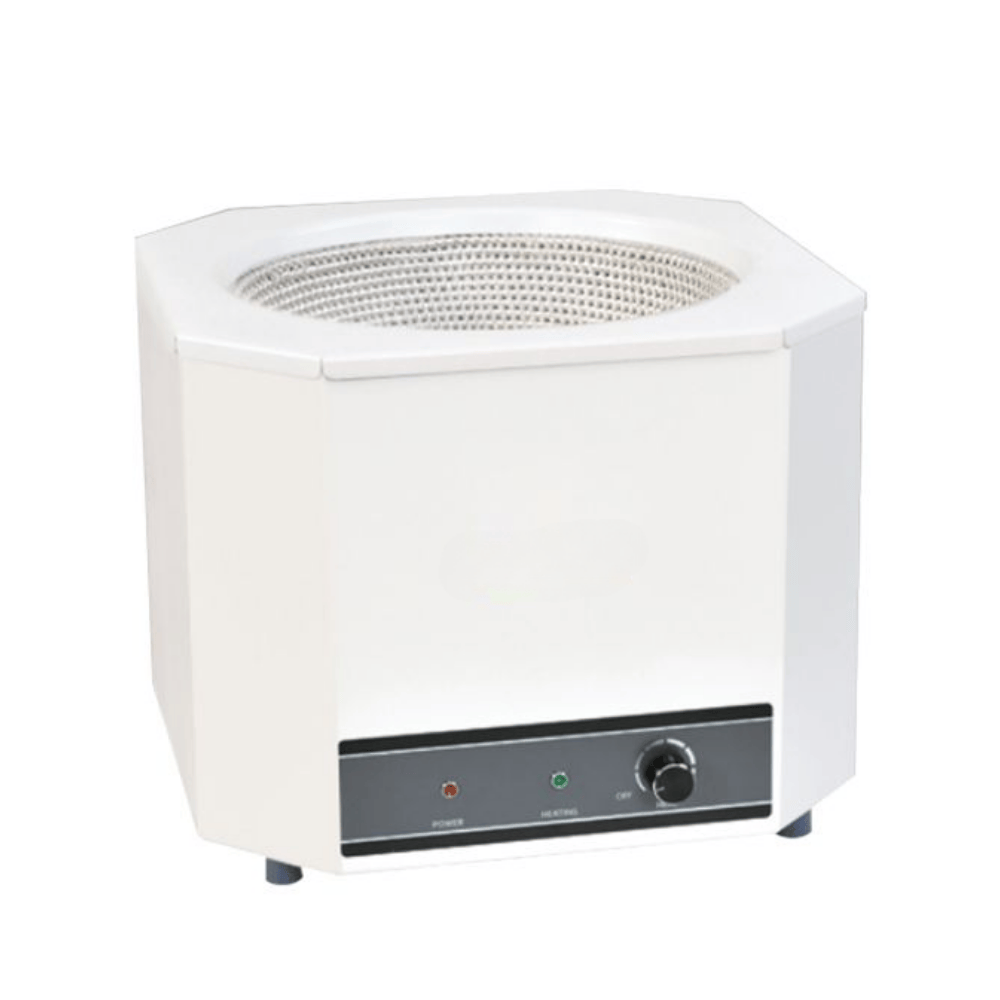

Heating Mantle, CA-HMA-T Series
- Temp. Range: 70～380℃
- Working Mode: Continuous
- Surface heat conduction
Description
Features
The shell cold plate is formed in one step and the surface is treated with anti-corrosion treatment.
The nickel-chromium alloy wire is wrapped around the heating body, which heats up quickly and has a long life.
Simple operation and wide application.
Specifications
| Model | CA-HMA-2T | CA-HMA-5T | CA-HMA-10T | CA-HMA-20T | CA-HMA-40T | CA-HMA-60T | CA-HMA-100T | HMA-200T | HMA-400T | |
| Capacity(ml) | 100 | 250 | 500 | 1000 | 2000 | 3000 | 5000 | 10000 | 20000 | |
| Heating Mode | Surface heat conduction | |||||||||
| Performance | Working mode | Continuous | ||||||||
| Constitute | Exterior | Cold-rolled steel plate with drug-resistant coating | ||||||||
| Heater | Nickel chromium alloy wire OCr27AL7Mo2 | |||||||||
| Controller | Temp. setting method | Scale (max. 380℃) | ||||||||
| Temp. representation method | Scale | |||||||||
|
Parameters |
Rated power(kW) | 0.1 | 0.15 | 0.25 | 0.35 | 0.45 | 0.6 | 0.8 | 1.2 | 2.5 |
| External dimension
(W*D*H) (mm) |
φ196*176 | φ262*231 | φ301*231 | φ340*245 | φ350*250 | φ425*320 | 500*510*390 | |||
| Package dimension
(W*D*H) (mm) |
246*246*213 | 317*317*268 | 361*361*270 | 360*360*280 | 390*390*310 | 470*470*380 | 540*540*420 | |||
| Electricity | AC 220V, 50/60Hz,
0.45A |
AC 220V, 50/60Hz,
0.7A |
AC 220V, 50/60Hz,
1.1A |
AC 220V, 50/60Hz,
1.6A |
AC 220V, 50/60Hz,
2.0A |
AC 220V, 50/60Hz,
2.7A |
AC 220V, 50/60Hz,
3.6A |
AC 220V, 50/60Hz,
5.5A |
AC 220V, 50/60Hz,
11.4A |
|
| N.W./G.W.(kg) | 2.5/2.8 | 5.5/6 | 6.5/7 | 7.5/8 | 8.5/9.2 | 9.8/12 | 26.5/28 | |||
