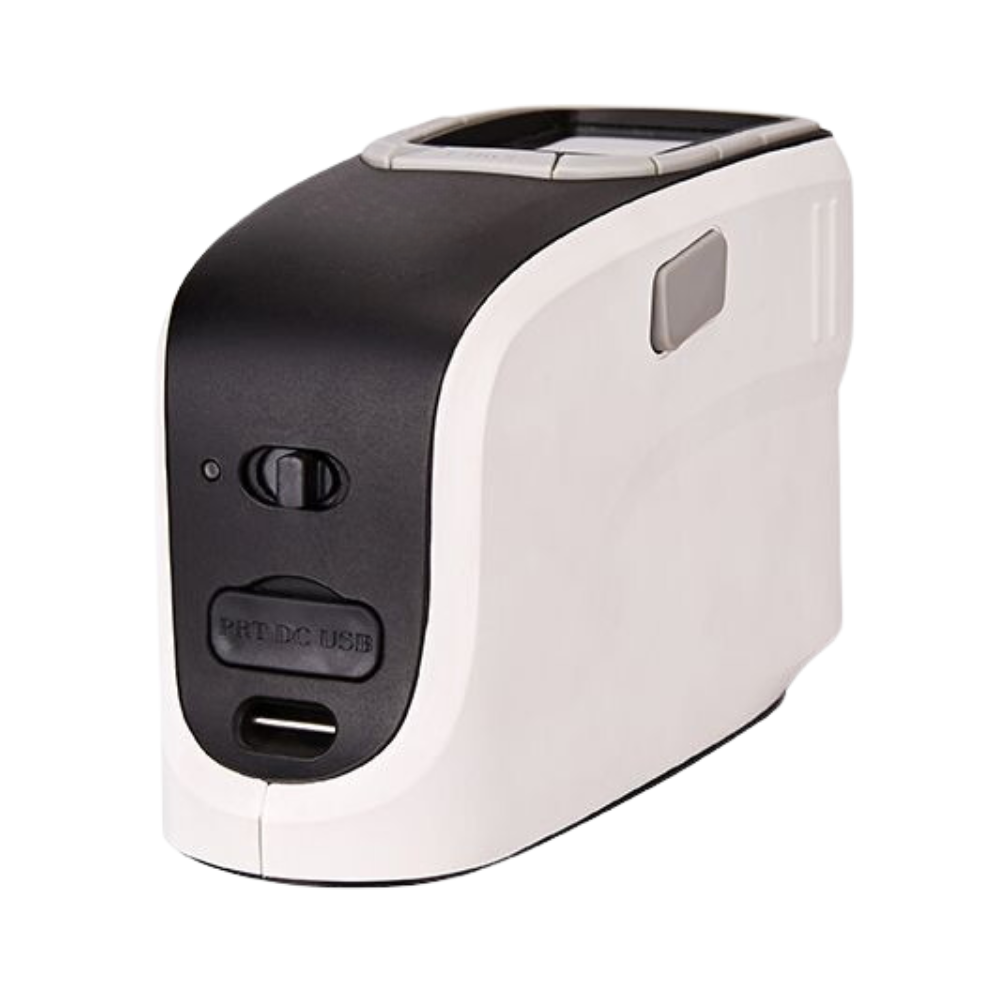

Grating Portable Spectrophotometer, CA-SP-CLR600A, 600B
- Observer Angle:2°/10°
- Integrating Sphere Size:φ40mm
- Wavelength Interval:10nm
- Wavelength Range:400-700nm
- Test Aperture:SP-CLR600A:φ10mm;SP-CLR600B:φ4mm, φ6mm
Description
Portable Grating Spectrophotometer has powerful performance configuration which makes color measurement more professional. Excellent inter-instrument error ensures consistency of the measurement data of multiple devices.
Features
1.Adopt D/8 optical structure and SCI/SCE mode.
Adopts D/8(diffused illumination, 8-degree viewing angle) which is widely applicable in the world, and SCI/SCE (specular component included/specular component excluded).
2.The camera can clearly observe the measured area.
The built-in camera is used for view taking and positioning. Through real-time view taking, it can accurately determine whether the measured part of the object is the target center, which improves the measurement efficiency and accuracy.
- Uses CLEDs light source – spectrally balanced LED light source.
LED light source that has balanced intensity across visible spectrum avoids the spectral deficiency in certain parts of the spectrum in common white LEDs, and guarantees the speed of the measurement and the accuracy of the results.
- Adopts Every TimeCalibration Technology (ETC)
The innovative ETC (Every Time Calibration) and standard whiteboard included in the optical system allow reliable accuracy and repeatability in every measurement.
- Matching color analysis software
Our spectrophotometer comes with color management software, which is suitable for quality control and management of color data in various industries.
It converts colors into numerical data, compares color differences, generates measurement reports, provides measurement data in different color spaces, and customizes color management for each customer.
- Automatic gloss compensation technology.
Adopts automatic gloss compensation technology,which guarantees the accuracy of color measurement value for surfaces of different gloss.
- Innovative light splitting SCS optical engine.
Adopt innovative single-grating-dual-light-paths light splitting system: SCS optical engine,which creates the best measurement repeatability for portable spectrophotometers and guarantees accurate measurement of surface color of materials.
8.Complete light sources compares with similar products.
Compared with similar products, our spectrophotometer provides the most complete 28 kinds of standard light sources and 40 kinds of measured color value indicators;
It can also customize the measurement method according to your requirements to meet all your color measurement needs.
Specifications
| Model | SP-CLR600A | SP-CLR600B |
| (A,B are for different test apertures) | ||
| Optical Geometry | d/8(Diffused lighting, 8 degrees observe angle)、SCI(specular reflection included)/SCE(specular reflection excluded)simultaneous measurement。(conform to CIE No.15、ISO 7724/1、ASTM E1164、DIN 5033 Teil7、 JIS Z8722 Condition c standards) | |
| Integrating Sphere Size | Φ40mm,Avian diffused reflection surface coating | |
| Light Source | CLEDs(entire wavelength balanced LED light source) | |
| Sensor | Dual light path sensor array | |
| Wavelength Range | 400-700nm | |
| Wavelength Interval | 10nm | |
| Half Spectral Width | 5nm | |
| Measured Reflectance Range | 0-200% | |
| Reflectance Resolution | 0.01% | |
| Observer Angle | 2°/10° | |
| Illuminant | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF | |
| Display | SPD distribution/data，sample’s color values，color difference values/graph，pass/fail results，color error tendency，color simulation，display measurement area，history data color simulation，manual input standard sample，generate measurement report | |
| Measuring Time Interval | 0.5s | |
| Measuring Time | 1s | |
| Color Space | CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance
Hunterlab,Munsell MI,CMYK,RGB,HSB |
|
| Color Difference Formulas | ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00
ΔEab(Hunter),555 shade sort |
|
| Other Colorimetric Indices | WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby)； YI(ASTM D1925，ASTM E313-00,ASTM E313-73)；Tint(ASTM E313,CIE,Ganz)
Metamerism index Milm, Stick color fastness, Color fastness ISO luminance, 8 gloss, A density, T density, M density, E density,Covering power, force,Opacity, color strength |
|
| Repeatability | light splitting reflectivity：standard deviation within 0.08% | |
| color values;ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals),
Maximum：0.05 |
||
| Measuring Aperture | φ10mm | φ4mm, 6mm |
| Battery Capacity | Rechargeable, 10000 continuous tests, 7.4V/6000mAh | |
| Interface | USB | |
| Data Storage | 20000 test results | |
| Illuminant Life Span | 1.5 million measurements in 5 years | |
| Inter-instrument Error | ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts) | |
| Screen | True color screen that includes all colors | |
| Operating Environment | 0~45℃, relative humidity 80% or below( at 35°C ),no condensation | |
| Operating Environment | -25℃~ 55℃,relative humidity 80% or below(at 35°C ),no condensation | |
| Standard Accessory | DC adapter, Lithium battery, manual, color management software, drive software, electronic manual, color management guide, USB cable, black/white calibration tube, protective cover, spire lamella, portable bag, electronic color charts, measurement and test report | |
| Optional Accessory | Powder molding device, micro printer | |
| External Dimension(L*W*H)) | 181*73*112mm | |
| Net Weight | About 0.55kg (excluding battery’s weight) | |
