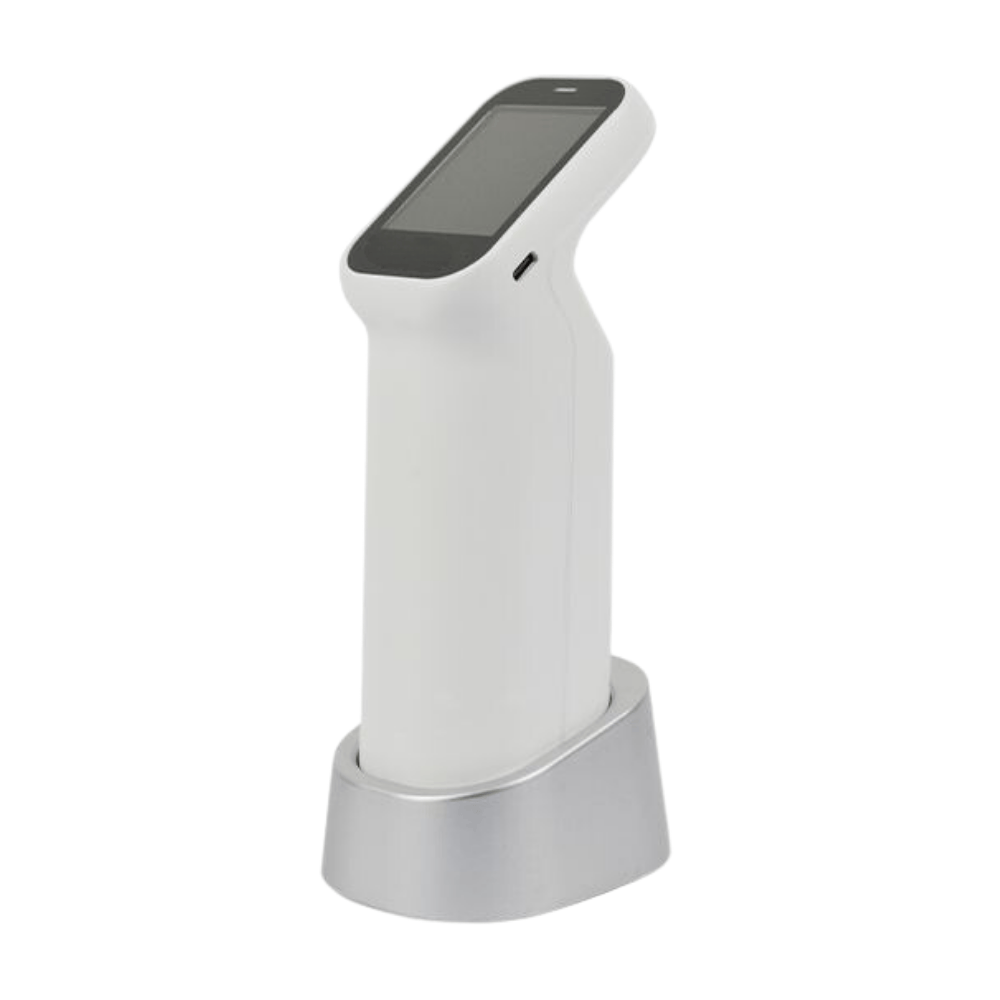

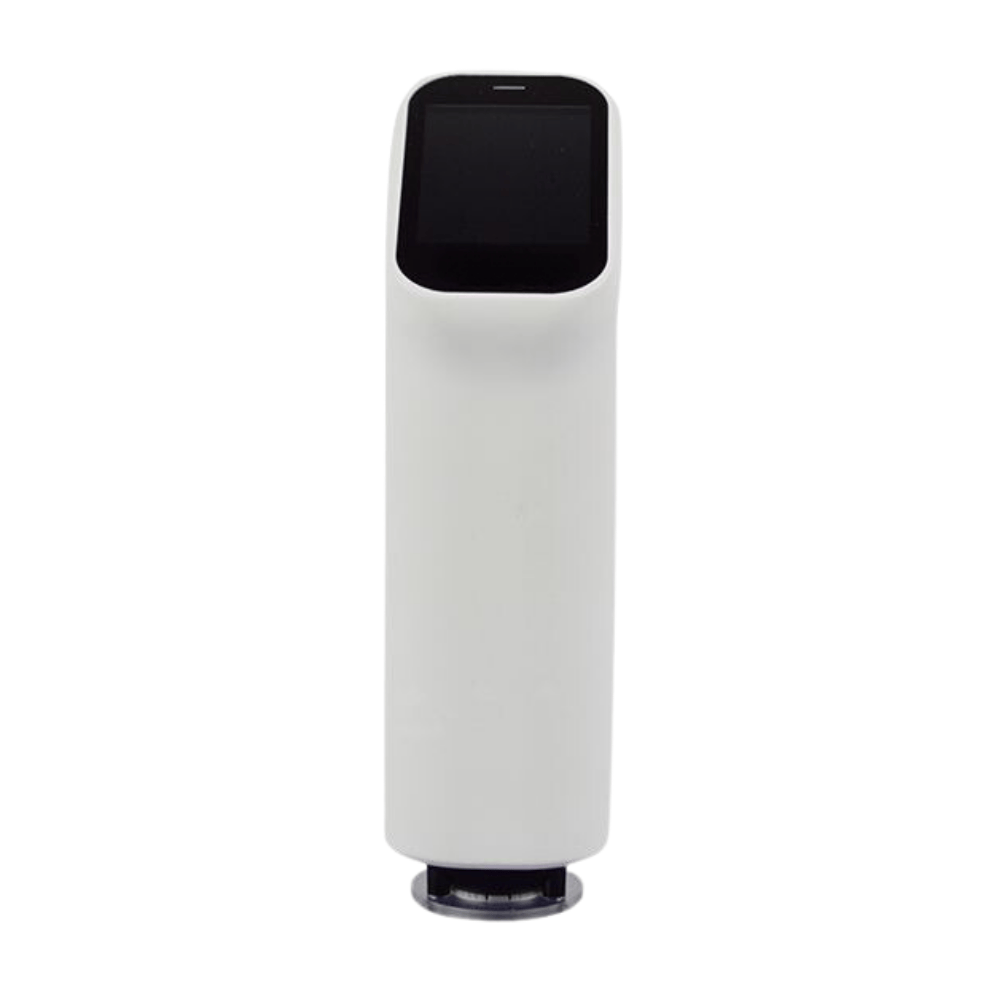

Grating Portable Spectrophotometer-CA-SP-CLR520C
- Auto calibration
- Observer Angles:2°,10°
- Integrating Sphere Size:φ40mm
- Wavelength Interval:10nm
- Wavelength Range:400-700nm
Description
Portable Grating Spectrophotometer has powerful performance configuration which makes color measurement more professional. Excellent inter-instrument error ensures consistency of the measurement data of multiple devices.
Features
- 20 kinds of color indexes and 26 kinds of illuminants
- Supports 26 kinds of illuminants such as D65/D50,etc.
- It can get the value of reflectance, CIE-Lab, CIE-LCh, whiteness, yellowness, opacity, color strength and other color indexes.
- Excellent inter-instrument error
Inter-instrument error＜0.2 which ensures test results consistency of multiple devices.
- Auto calibration
The revolutionary auto calibration technology allows the instrument to achieve automatic calibration, which greatly improves the user experience.
- Switchable Apertures 11mm/6mm/1*3mm
Durable and stable aperture size to measure samples with different sizes.
- UV Included/ UV Excluded
UV Included/ UV Excluded to measure color and color difference for samples with fluorescence.
- Multi-function calibration base
- The multi-function calibration base keeps the white tile being protected, combining calibration and charging functions in one.
- When instrument is placed on the base, it will be automatically charged and calibrated. It saves a lot of time for the user to charge and calibration the device.
7.The camera can clearly observe the measured area
With Integrated camera to see the measurement area for accurate test.
Specifications
| Model | SP-CLR520C |
| Optical Geometry | D/8（diffused illumination,8° viewing）
SCI（specular component included），SCE（specular component excluded） |
| Integrating Sphere Size | φ40mm |
| Light Source | Full waveband balanced LED |
| Color Space and Index | Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB, Color difference(ΔE*ab, ΔE*cmc, ΔE*94,ΔE*00),WI(ASTM E313-00,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger Stensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73), Blackness(My,dM),Color Fastness, Tint,(ASTM E313-00),Color Density CMYK(A,T,E,M), Milm, Munsell, Opacity, Color strength |
| Illuminant | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84 |
| Observer Angle | 2°,10° |
| Sensor | 256 pixel CMOS sensor |
| Calibration | Auto |
| Wavelength Interval | 10nm |
| Wavelength Range | 400-700nm |
| Measured Reflectance Range | 0-200% |
| Reflectance Resolution | 0.01% |
| Repeatability | Chromaticity value:
Max. :dE*ab< 0.04 Average :dE*ab< 0.03 Standard deviation within ΔE*ab 0.02 (When a whiteboard measures 30 times every 5 seconds) Reflectance: Standard deviation < 0.1% |
| Measuring Aperture | MAV:Φ8mm/Φ11mm
MAV:Φ4mm/Φ6mm MINI:1*3mm |
| Inter-instrument Error | ΔE*ab＜0.2
（BCRA Series Ⅱ, average measurement of 12 tiles，MAV/SCI） |
| Test Time | About 1s |
| Battery | Rechargeable, 8000 times continuous tests, 3.7V/3000mAh |
| Screen | 2.4-inch IPS full color screen |
| Interface | USB，Bluetooth |
| Illuminant Life Span | 1 million measurements in 10 years |
| Software Support | Android, IOS, Windows |
| Camera | With |
| External Dimension
(L*W*H) |
77.8*53.2*185.7mm |
| N.W./G.W. | 0.3kg/1.5kg |
| Shipping Dimension
(L*W*H) |
320*170*290mm |
