Description

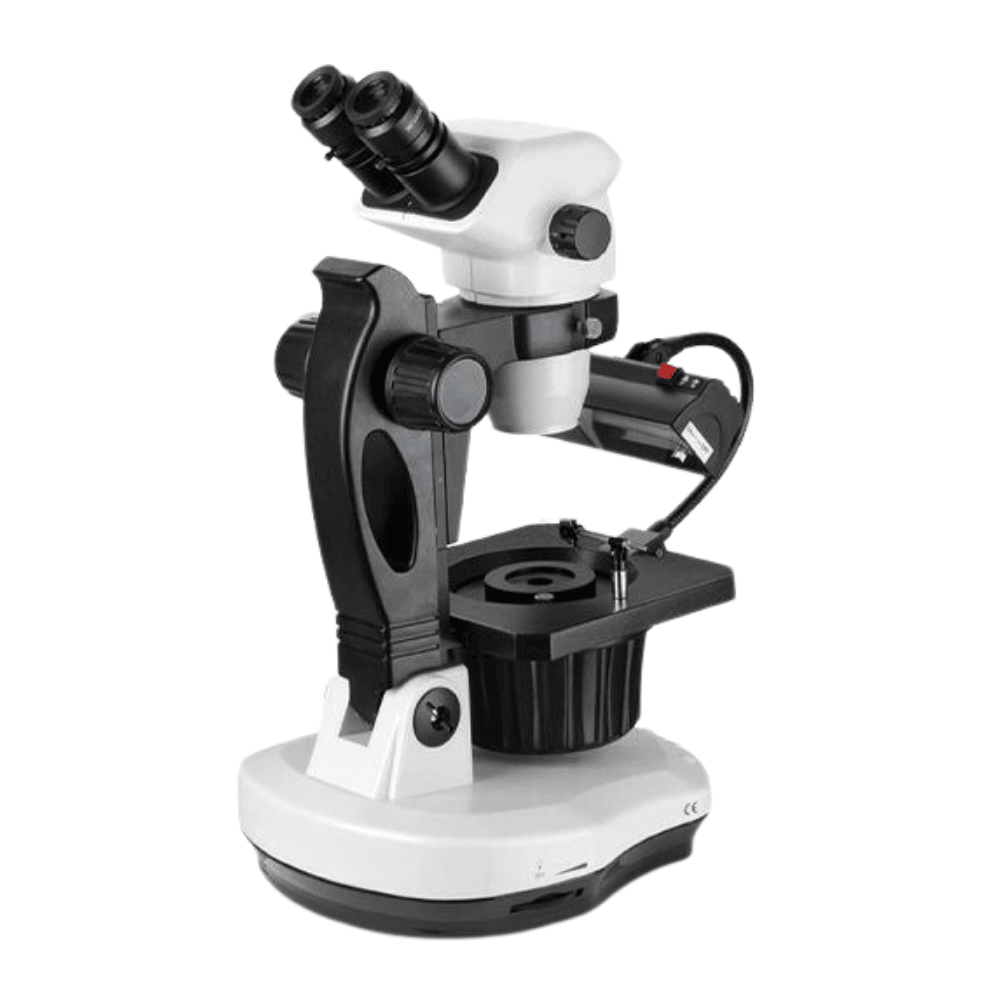

This microscope meets the observation requirements of high contrast and high resolution, and fully meets the needs of jewelry appreciation of various types of diamonds, gemstones, etc.
Features
- Adopts Grinov optical imaging system and special lens body suitable for jewelry inspection.
- Equipped with 0.67X-4.5X/0.65X-4.5X/0.7X-4.5X/0.8X-5.0X continuous zoom objective lens, meeting the observation requirements of high contrast and high resolution, meetingthe needs of jewelry appreciation of various types of diamonds,gemstones, etc.
Specifications
| Model | CA-MSC-J2100 |
| Viewing Head | Binocular, Inclined at 45°, Optional lenses |
| Eyepiece | High eye point and large field of view eyepiece WF10X/22mm, adjustable diopter |
| High eye point and large field of view eyepiece WF15X/16mm, adjustable diopter | |
| High eye point and large field of view eyepiece WF20X/12mm, adjustable diopter | |
| Objective | 0.67X-4.5X/0.65X-4.5X/0.8X-5.0X/0.7X-4.5X continuously variable magnification objective lens, working distance is 110mm |
| Body Frame | The bracket can tilt back 45 °, the focusing handwheel is adjustable in tension, and the focusing stroke of the bracket group is 110mm. The entire base group can rotate 360 °, with a built-in 100V-240V wide voltage system. |
| Two observation modes: bright field and dark field, with variable diaphragm | |
| Base | With light source base, the upper light source is 7W daylight fluorescent lamp/1W hose type LED lamp |
| Lower light source 6V/30W halogen lamp | |
| Clip | Steel wire clip |
| Flat mouth clip |
