Description
Application
Luminescence detection: Western Blot, ECL, ECL plus imprinted membrane, self-luminescent microplate, biochip, and other self-luminescent samples.
Description

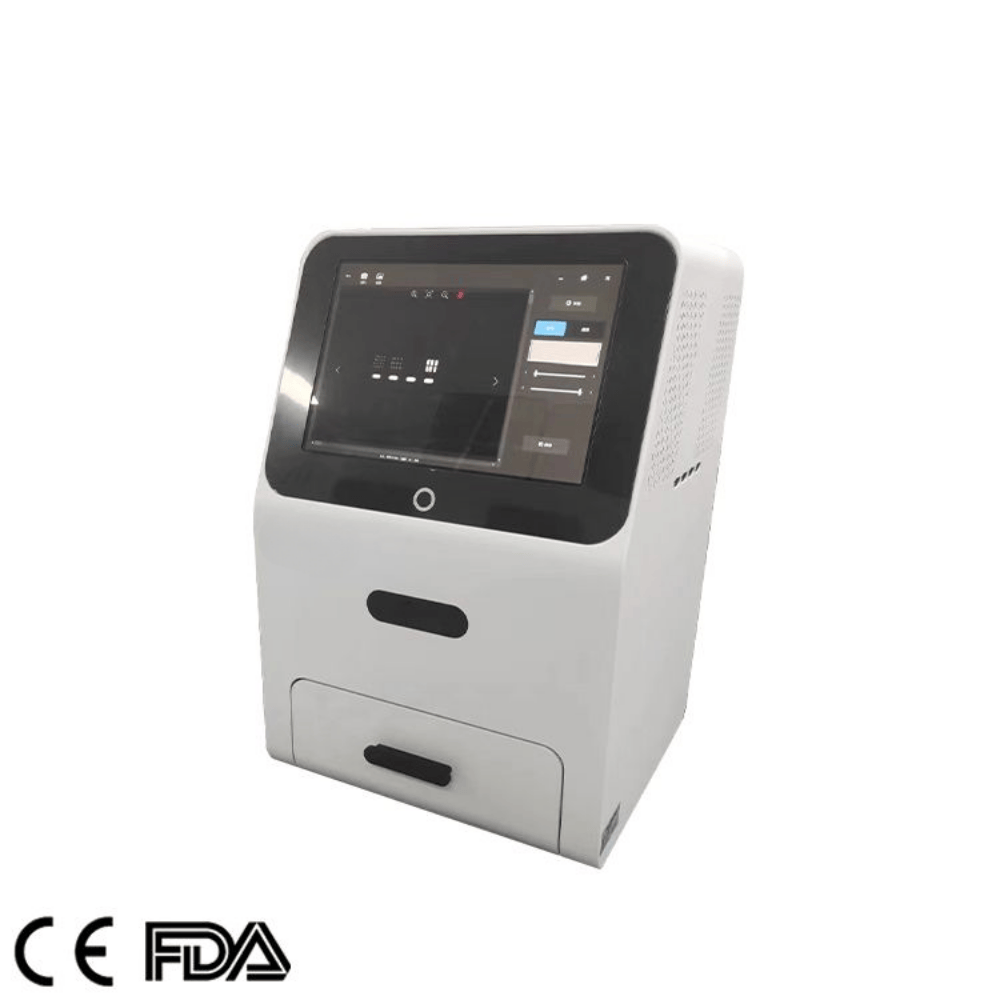

The integrated chemiluminescence imager is equipped with a scientific research-grade cryogenic super-sensitivity back-illuminated CCD camera, a large aperture lens, and a built-in touch computer mainly used for chemiluminescence and biochip imaging;
Its product shooting software has modular functions, guided operation, simple operation, automatic hardware processing, and functions such as image management, viewing, and enhancement.
Features
The integrated chassis is formed at one time and has a seamless design to prevent light leakage.
It adopts a cryogenic scientific research-grade ultra-sensitive back-illuminated camera and a large aperture lens.
The lens has auto focus function, no need to focus manually. Compatible with samples of different thicknesses.
Electric sample stage, hardware and software linkage, one-touch automatic sampling, automatic shooting, intelligent imaging.
Automatically shoot samples and markers are automatically superimposed.
Millisecond-level accurate automatic exposure, no need to repeatedly estimate the exposure time.
Specifications
| Model | GEP-GDX6T |
| Pixel | 9 million pixels |
| Cooling Temperature | -65℃ |
| Photosensitive Efficiency | High QE: >95% |
| Pixel Size | 3.74μm×3.74μm |
| Binning | 1×1 2×2 4×4··· 24×24 |
| Exposure | 1ms-120min |
| Image Density | 16 bit (0-65535 colors) |
| Dynamic Range | ≥4.8 orders of magnitude |
| Electric Lens | F=0.95 Auto focus lens optional F0.8 |
| White Light Reflection | LED reflection (cold light) |
| Shooting Area | Max.shooting area: 16x14cm |
| Timed Close | 1~60 minutes |
| Touch System | Built-in 12.5-inch high-performance touch computer |
| Dimension | 360*362*566mm |
| N.W./G.W. | 17.8kg/20.3kg |
| Shipping Dimension | 450*462*666mm |
