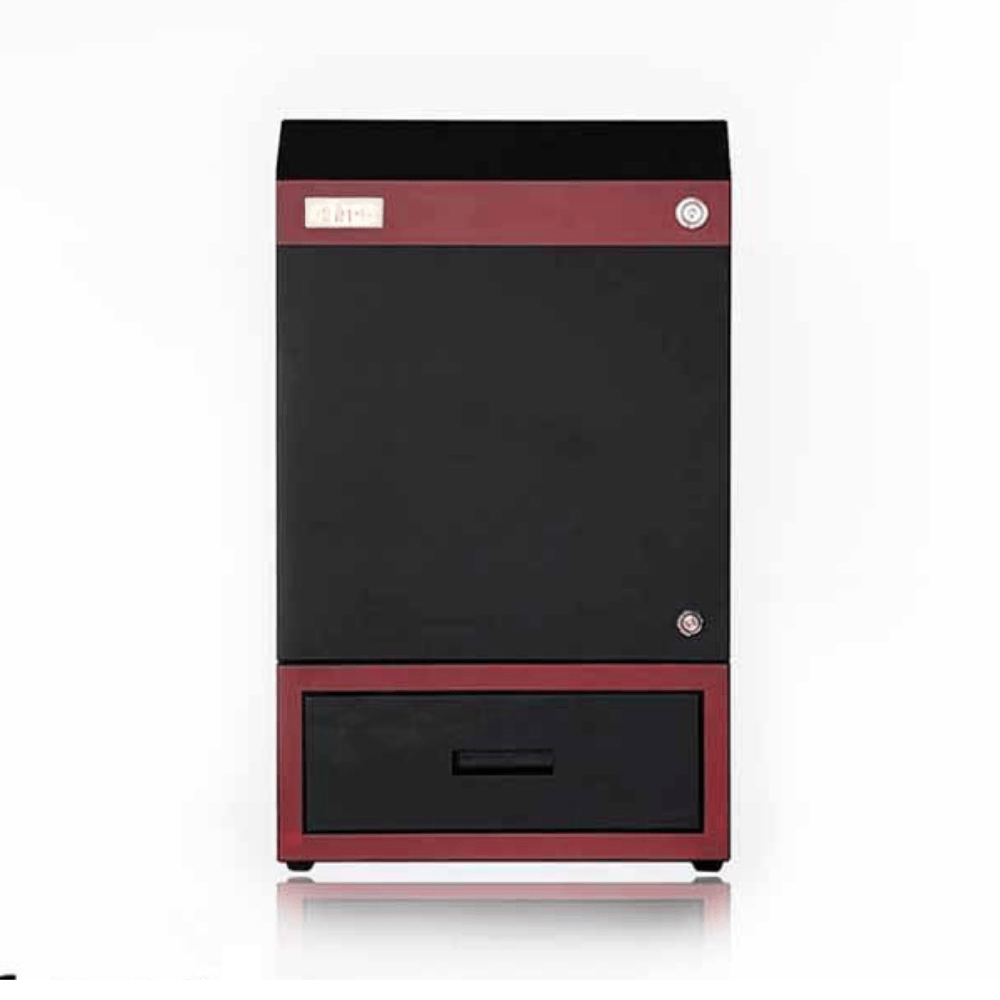

Gel Imaging System, CA-GEP-GD100/GD1000
- Gel Imaging System
- Pixel: 2592*1944(5.03MP)
- Bit Depth: 16bit（0-65535）
- Exposure Time：1ms-3000ms
Description
Application
The Gel Imaging System can be used to do nucleic acid test for various fluorescent dyes, such as EB, SYBR Gold,SYBR Green, SYBR Safe, Gel Red Gel Green Texas, Red Fluoresce in marked DNA/RNA.
Features
- Easy to use & Humanized design
It is a highly integrated and fully automated gel imaging system. The system interface is simple and practical, the main interface has shooting button and time control to guide the user. It is very easy to operate,no need to have manual tedious debug.
- High resolution CCD camera
High resolution CCD camera, high sensitivity, high resolution, with automatic focus and high performance 6 times lens, specialized filter for nucleic acid dye.
- Specialized overlay glue cutting filter
Specialized overlay glue cutting filter，compared with the traditional one，it has many advantages，easy to operate，can prevent UV and blue light damage，no need to operate in dark room，work very well under strong light condition. The white light sample plate is used for SDS-PAGE glue samples shooting.
GD100:
The body is made of all stainless steel, which is stable and reliable
GD1000:
- The body is made of ABS engineering plastics, which is safe and beautiful.
- The white light self luminous plate is used to make the spontaneous white light more uniform, presenting a perfect SDS-PAG imaging effect
Specifications
| Model | CA-GEP-GD100 | CA-GEP-GD1000 | |
| Pixel | 2592*1944(5.03MP) | ||
| Exposure Time | 1ms-3000ms | ||
| QE Value | High QE: ＞65% | ||
| Binning | 1*1 | ||
| Bit Depth | 16bit（0-65535） | ||
| OD | ≥4.8OD | ||
| Lens | Motorized 8-48mm,F1.2 | ||
| Trans-UV | 302nm | 302/254/365 can be chosen from three options | |
| Epi-White | LED | ||
| Trans white | UV to white sample plate | ||
| Epi-UV(Optional) | 254nm,302nm,365nm
(Two options maximum) |
302nm | |
| Filters(Optional) | 400~800nm | ||
| UV area | 210*210mm | ||
| Timing off | 1~60mins | ||
| Dimensions | 360*375*605mm | 380*405*695mm | |
| Package Dimension (W*D*H) (mm) | / | 510*530*870 | |
| Net Weight | 30.5kg | 35.5kg | |
GD100: The body is made of all stainless steel, which is stable and reliable
GD1000: The body is made of ABS engineering plastics, which is safe and beautiful.
The white light self luminous plate is used to make the spontaneous white light more uniform, presenting a perfect SDS-PAG imaging effect.
