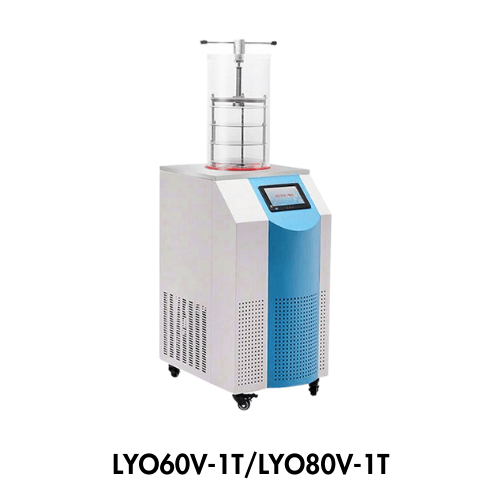

Floor Freeze Dryer, CA-LYO60V-1/CA-LYO80V-1 Series
- Final condenser temp (℃): -55 or -80
- Freeze drying area (m2): 0.09-0.18
- Material loading capacity(ml): 900-1800
- Ice condenser capacity (Kg/24h): 4
- Control System: microprocessor, touch screen
Description
Key Features:
- 7inches colorful touch panel can display the product sample’s temperature, Condenser temperature and vacuum etc in digital and curve.
- Touch panel with the design conforms to ergonomics and operate more comfortably.
- Compact design with a small footprint.
- With USB interface to export the data, convenient for user information management.
- Large-volume stainless steel condenserwithout coils, which can realize independent sample pre-freezing
Reliability：
- High performance compressor, cascade system,high cooling efficiency and fast cooling speed.
- Condenser and operation panel are made by stainless steel.
- Drying chamber is transparent which is visual and safe.
Applications：
- The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples.
- Widely used in drugs, biological products, chemical and food industries.
- On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.
Optional:
- Optional for gas interface: it can inject inert gas.
- Optional for Condenserelectrical heating defrost function.
- Optional for rack heating which is help to test in production.
Parts
Specifications
| Model | LYO60V-1S | LYO60V-1P | LYO60V-1T | LYO60V-1PT | |
| LYO80V-1S | LYO80V-1P | LYO80V-1T | LYO80V-1PT | ||
|
Type |
Standard chamber | Standard chamber with 8 port manifold
|
Stoppering chamber
|
Stoppering
chamber with 8 port manifold |
|
| Freeze Drying Area(m2) | 0.12~0.18 | 0.12~0.18 | 0.09 | 0.09 | |
| Tray(Qty) | Standard configuration includes 4 layers, and up to 6 layers can be optionally selected | 3pcs | 3pcs | ||
| Tray Dimensions(Diameter*H)(mm) | Φ200*20 | Φ200*20 | Φ200*20 | Φ200*20 | |
| Height Between Trays(mm) | 76/50 | 76/50 | 70(average) | 70(average) | |
| Condenser Temperature (℃) | -60/-80 | -60/-80 | -60/-80 | -60/-80 | |
| Condenser Capacity (L) | 9.5 | 9.5 | 9.5 | 9.5 | |
| Condenser Dimensions(Diameter*H)(mm) | Φ217*250 | Φ217*250 | Φ217*250 | Φ217*250 | |
| Vacuum Degree(no-loading) (Pa) | ≤5 | ≤5 | ≤5 | ≤5 | |
| Ice Condenser Capacity (kg/24h) | 4 | 4 | 4 | 4 | |
| Loading Capacity/ Shelf (mL) | 300 | 300 | 300 | 300 | |
| Total Loading Capacity(mL) | 1200~1800 | 1200~1800 | 900 | 900 | |
| Drying Chamber Dimensions(standard) | Lower circle:Φ260mm;Upper circle:Φ240mm;Height:Φ450mm | ||||
| Total Qty. Of Vial Φ22 | 260 | 260 | 195 | 195 | |
| Total Qty. Of Vial Φ16 | 480 | 480 | 360 | 360 | |
| Total Qty. Of Vial Φ12 | 920 | 920 | 690 | 690 | |
| Refrigerant | CFC-free | ||||
| Standard Accessories | Vacuum pump 2L/s,8m³/h,material tray,material rack,PC cover(for all modes)
Conical-mouth flask 500mL*8 pcs,switch valve*8 pcs(only for model 1P/PT) |
||||
| Optional Function&Accessories | Electric defrost function,nitrogen gas filling valve,oil mist filter(for all models)
800mL wide-mouth flask(only for model 1P/PT) |
||||
| Consumption | 0.95kW(-60℃)/1.5kW(-80℃) | ||||
| Electricity | AC220V,50Hz(standard), other electricity type can be customized | ||||
| External Dimensions(W*D*H)(mm) | 480*610*905/1355 | 480*610*905/1415 | |||
| Shipping Dimensions(W*D*H) | Main body | 710*680*600mm | |||
| Drying chamber | 360*360*590mm | ||||
| Vacuum pump | 590*230*380mm | ||||
| Gross Weight | 135kg(-60℃)/155kg(-80℃) | ||||
