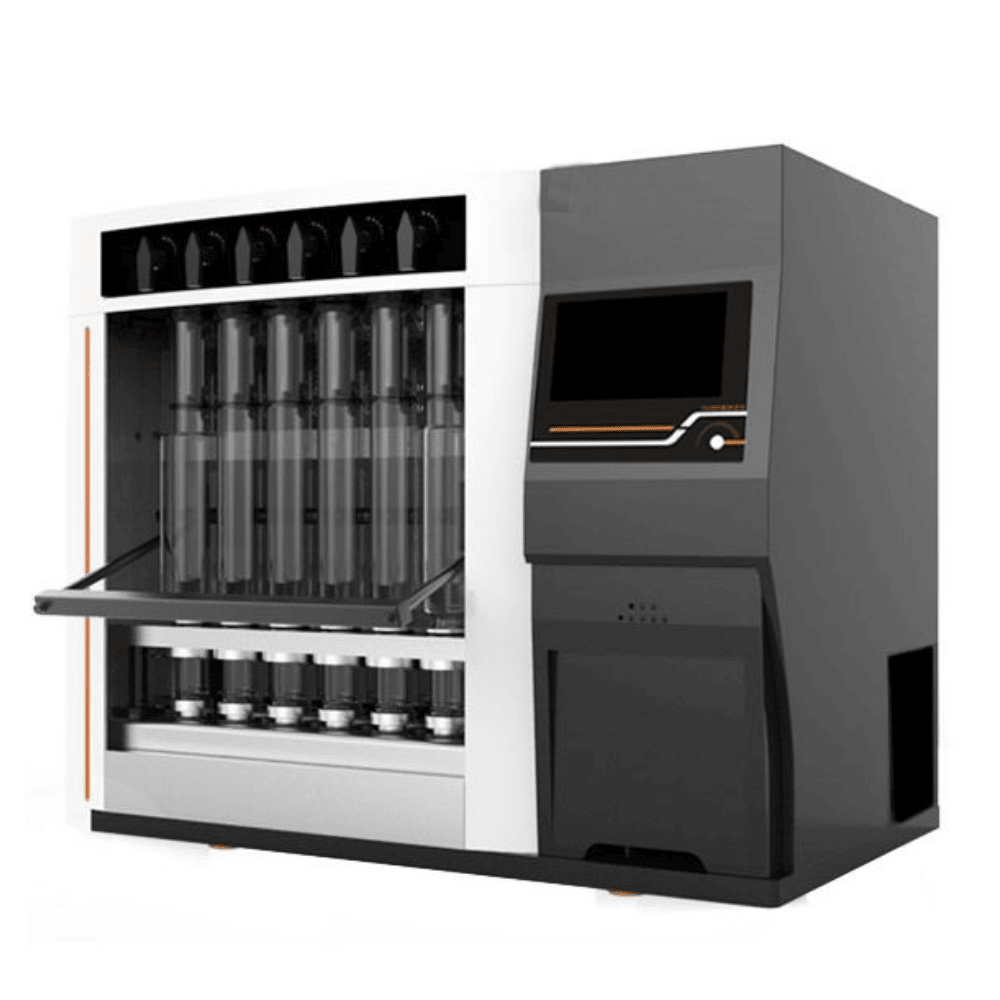

Fiber Analyzer, CA-FBA800

  • Measurement range: 0.1% ~ 100%
  • Sample weight: 0.5g ~ 3g
  • Hidden solution barrel pull structure
  • The crucible recoil function designed
  • With dosing overflow protection function
  • Adjust the crucible heating power in time
  • Having a built-in pre-heating function
  • Integrated infrared heating technology
SKU: CA-FBA800 Category:

Description

Features :

1.Hidden solution barrel pull structure designed to facilitate dosing operation, provide the safest fiber analysis.

2.Corrosive liquid is not in contact with any pump body, to avoid waste discharge pump susceptible to corrosion phenomena.

3.The crucible recoil function designed to prevent sample in the crucible can not caking filtration.

4.With dosing overflow protection function, to prevent dosing corrosive liquid overflow due to operator error, protect the safety of the operator.

5.Adjust the crucible heating power in time, enabling customers to control the heating rate easily and low down the energy consumption, ECO-friendly.

6.Having a built-in pre-heating function, greatly reducing the whole experiment time.

7.Provide five various specifications crucible specifications to meet the needs of different samples for standard configuration.

8.Can detect crude fiber, neutral detergent fiber (NDF), acid detergent fiber (ADF), hemicellulose and acid detergent lignin (ADL).

Advantages:

Precise control experiment

Test time can be set free, clockwise and countdown timing functions are available,

real-time reminder end of the experiment, the experimenter to facilitate precise

control experiment, save test time, improve efficiency.

Integrated infrared heating technology

Advanced integrated infrared heating, more uniform heating of the crucible fast,

more consistent sample extraction, higher extraction recovery, thereby improving

the accuracy of test results.

Specifications

Model CA-FBA800
Measurement range 0.1% ~ 100%
Sample weight 0.5g ~ 3g
Repeatability error Crude Fiber Content < 10%, ≤0.4%

Crude Fiber Content ≥10%, ≤1%

Capacity 6 pcs/batch
Pre-heating time 10-12min
Heating to boiling 13-15min
Display 7 inches touch color screen
Rated power 2.2KW
Power supply 220 VAC ±10% 50Hz
Dimension 776mm×476mm×644mm
