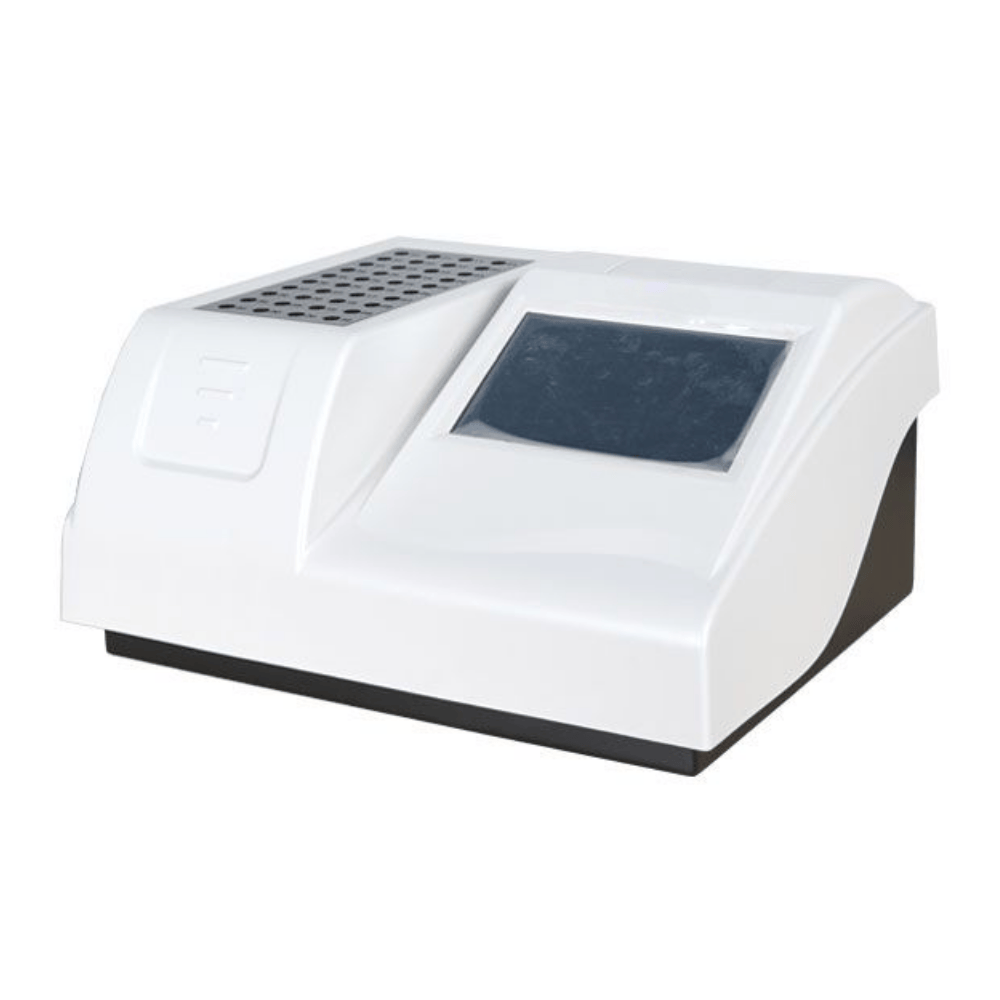

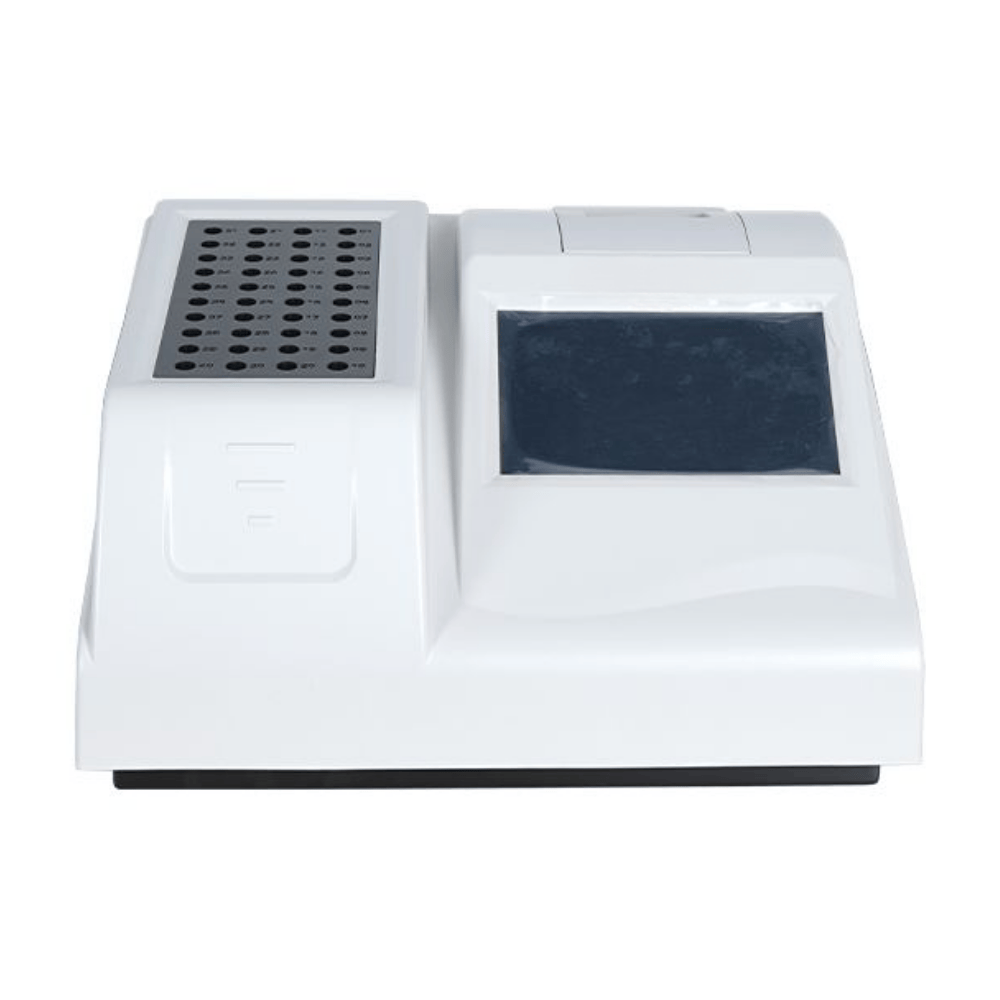

ESR analyzer, CA-ESRA-40
- Loading capacity: 40 sample at same time
- Measuring time: 30/60 minutes selectable
- Throughput: Up to 80 samples per hour
- Storage: 4,000 results
- Analysis result: Westergren ESR value(mm/hr)
Description
1.Large 7 inch touch screen
2.Two working methods: 30mins or 60mins
3.ESR curve display and print out
4.Barcode reader optional, Support LIS connection
Specifications
| Principle | |
| Field of application: | Erythrocyte |
| sedimentation rate analysis Measuring principle: | Infrared sensor |
| Analysis result: | Westergren ESR value(mm/hr) |
| Test speed/Capacity | |
| Throughput: | Up to 80 samples per hour |
| Reading channels: | 40 |
| Loading capacity: | 40 samples at same time |
| Loading pattern: | Random |
| Storage: | 4,000 results |
| Test range | |
| Measuring time: | 30 minutes or 60 minutes selectable |
| Sample interval: | 3 minutes |
| Measurement range: | (1-140) mm/h |
| Temperature compensation: Refer to 18C automatically(selectable) Reading resolution: | ±0.1mm |
| Result resolution: | 1mm/1h,1mm/2h |
| Blood level range: | 50mm~64mm |
| Output/interface | |
| Interface: | RS-232 serial port |
| Print: | Internal thermal recorder |
| Power/Working condition | |
| Power supply: | AC100-240V,50-60Hz,50W |
| Operation conditions: | Temperature 5C～40℃ Humidity ≤80% |
| Dimension/Weight | |
| Dimension: | 365mm×300mm×180mm(LxWxH) |
| Net weight: | 8Kg |
| Package | 690mm*440mm*340mm, 12.2Kg |
