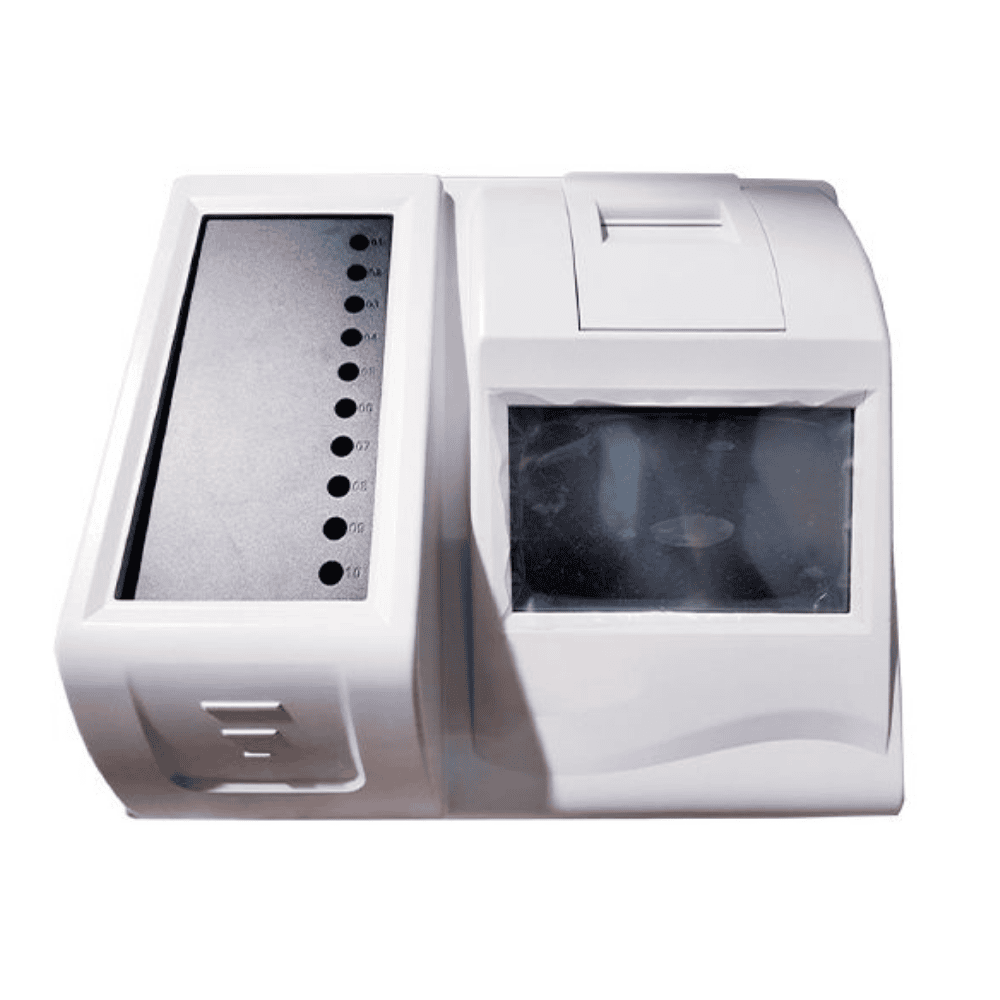

ESR analyzer, CA-ESRA-10
- Loading capacity: 10 sample at same time
- Measuring time: 30/60 minutes selectable
- Throughput: 20 samples per hour
- Storage: 4,000 results
- Analysis result: Westergren ESR value (mm/hr)
Description
- Large color display, touchscreen
- 10 channels, up to 20T/H
- Twoworking method: 30 mins or 60 mins
- ESR curve display and print out
- Barcode reader optional
- Can connect LIS
Specifications
| Item | CA-ESRA-10 |
| Field of application | Erythrocyte sedimentation rate analysis |
| Measuring principle | Infrared sensor |
| Analysis result | Westergren ESR value (mm/hr) |
| Throughput | Up to 20 samples per hour |
| Reading channels | 10 |
| Loading capacity | 10 sample at same time |
| Loading pattern | Random |
| Measuring time | 30 minutes or 60 minutes selectable |
| Sample interval | 3 minutes |
| Measurement range | (1-140)mm/h |
| Temperature compensation | Refer to 18°C automatically (selectable) |
| Reading resolution | ±0.1mm |
| Result resolution | 1mm/1h, 1mm/2h |
| Blood level range | 50mm~64mm |
| Display | Color LCD screen |
| Input | Touch screen |
| Interface | RS-232 serial port |
| Internal thermal recorder | |
| Storage | 4,000 results |
| Power supply | AC100-240V, 50-60Hz, 50W |
| Operation conditions | Temperature 5C°~40°C Humidity ≤80% |
| Dimension | 365mm×300mm×180mm(L×W×H) |
| Net weight | 11Kg |
