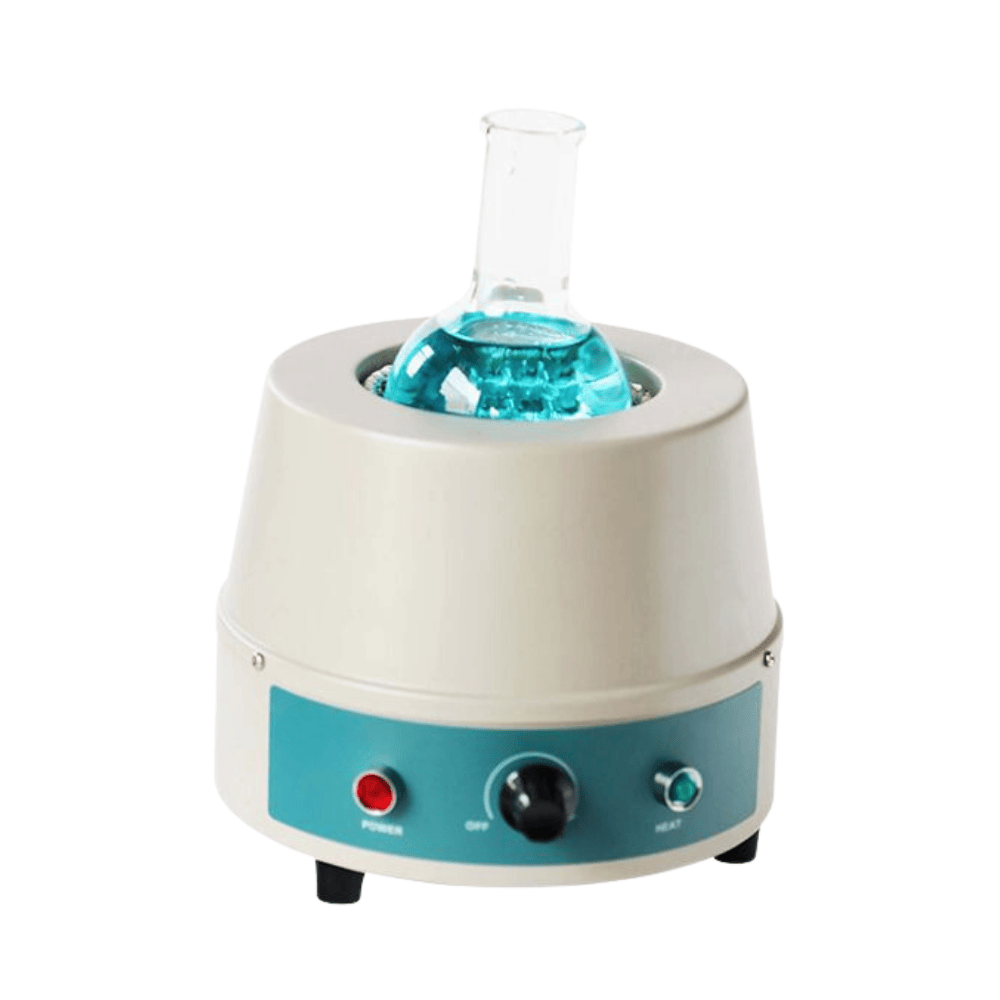

Electronic Control Heating Mantle, CA-HMA Series
- Capacity(ml):50-20000
- Surface Max. Temp.( ID):450P
- Heating element:Nichrome wire
- Heating Mode:Surface heat-conduction
Description
Product Description:
Eletronic temperature regulation mode with characteristics of step-less speed adjustable
SPECIFICATIONS
| Model | CA-HMA-1 | CA-HMA-2 | CA-HMA-5 | CA-HMA-10 | CA-HMA-20 | CA-HMA-40 | CA-HMA-60 | CA-HMA-100 | CA-HMA-200 | HMA-400 |
| Capacity(ml) | 50 | 100 | 250 | 500 | 1000 | 2000 | 3000 | 5000 | 10000 | 20000 |
| Heating Mode | Surface heat-conduction | |||||||||
| Surface Max. Temp.(℃) | 450 | |||||||||
| Heating element | Nichrome wire | |||||||||
| Thermal insulation cotton | High quality aluminum silicate cotton | |||||||||
| Shell | Cold rolled steel plate, surface spraying | |||||||||
| Heat power (kW) | 0.08 | 0.1 | 0.15 | 0.25 | 0.35 | 0.45 | 0.6 | 0.8 | 1.2 | 2.5 |
| Working Mode | Continuous | |||||||||
| Exterior Size (mm) | ϕ220×165 | ϕ280×220 | ϕ330×230 | ϕ340×245 | ϕ350×250 | ϕ425×320 | ϕ470×340 | |||
| Packing Size (mm) | 250*250*240 | 290x290x300 | 340x340x350 | 360*360*310 | 390x390x310 | 430x430x350 | 510x510x380 | |||
| Voltage(V) | 100 ~ 120V or 200 ~ 240V | 200 ~240V | ||||||||
| N.W.(Kg) | 2.5 | 5.5 | 6.5 | 7.5 | 8 | 9.8 | 16 | |||
| G.W. (Kg) | 2.8 | 6 | 7 | 8 | 9.2 | 12 | 20 | |||
