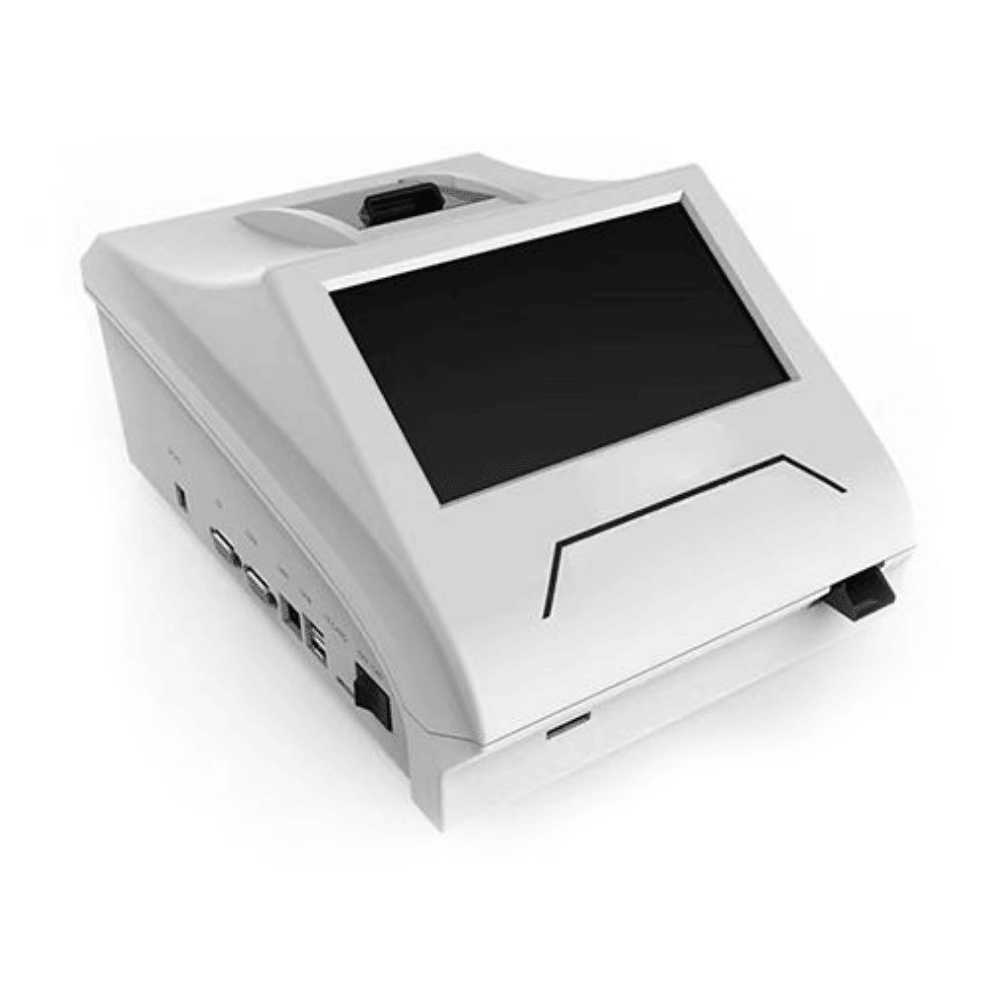

Dry Immunofluorescence Analyzer, CA-IFA-J1000D
- Detection Time:13~18min
- Speed:180 Test/h (take PCT as an example)
- 7-inch LCD touch screen
- Internal quality control calibration
Description
Dry Immunofluorescence Analyzer is used for in vitro quantitative detection of various indicators in human serum, plasma, whole blood, and urine.It is mainly used to detect the contents of PCT, hs-cTnI, NT-proBNP, H-FABP, CK-MB, MYO, D-Dimer, NGAL, etc., and the results are used for clinical auxiliary diagnosis.
Features
- Single channel POCT detection platform.
- High sensitivity and stability, CV
- Easy operation, automatic discarding
- Easy to connect the hospital LIS and HIS system.
- ED,ICU,NICU,Outpatient service and Clinical Departments
Specifications
| Model | CA-IFA-J1000D |
| Detection Time | 13~18min |
| Quality Control | Lyophilized controls with high, medium and low concentration levels |
| Display | 7-inch LCD touch screen |
| Speed | 180 Test/h (take PCT as an example) |
| Quality Control | Internal quality control calibration |
| Storage | More than 30,000 |
| Printing | Built-in thermal printer, can be connected to an external printer |
| Data Transmission | USB, RS232, LIS |
| Electricity | AC 220V 50/60Hz |
| External Dimension | 291*220*162mm |
| N.W./G.W. | 3.44/4.04kg |
| Shipping Dimension | 295*240*390mm |
Measurement items
| Biomarkers | Measurable Range | Sample Volume | Clinical Use |
| Peripheral PCT | 0.01-100ng/mL | Peripheral blood 20ul | Diagnosis of infectious diseases and sepsis |
| PCT | 0.01~100ng/mL | Serum / plasma 100μL
Whole blood 120μL |
Diagnosis of infectious diseases and sepsis |
| IL-6 | 2pg~4000pg/mL | Early markers of acute inflammation | |
| CRP | 0.1~200mg/L | Auxiliary diagnosis of inflammation | |
| PCT/IL-6 | 0.01~100ng/mL
2pg~4000pg/mL |
Diagnosis of infectious diseases and sepsis | |
| hs-cTnI | 0.005~50ng/mL | Serum/plasma 100μL
Whole blood 120μL |
Gold standard for ACS and AMI diagnosis |
| NT-proBNP | 5pg~35000pg/mL | Diagnosis of heart failure | |
| CK-MB/hs-cTnI/MYO | 0.1~100ng/mL
0.005~50ng/mL 1~500ng/mL |
Comprehensive solution to myocardial injury | |
| H-FABP | 1~200ng/mL | Early diagnosis of myocardial injury | |
| D-Dimer | 0.01~10mg/L | Plasma 100μL,
Whole blood 120μL |
Diagnosis of Deep Vein Thrombosis(DVT) and Pulmonary Embol(PE) |
| NGAL | 1~5000ng/mL | Serum/ plasma 20μL
Whole blood 30μL Urine 20μL |
Diagnosis of Acute Kidney Injury (AKI) and acute renal failure (ARF) |
