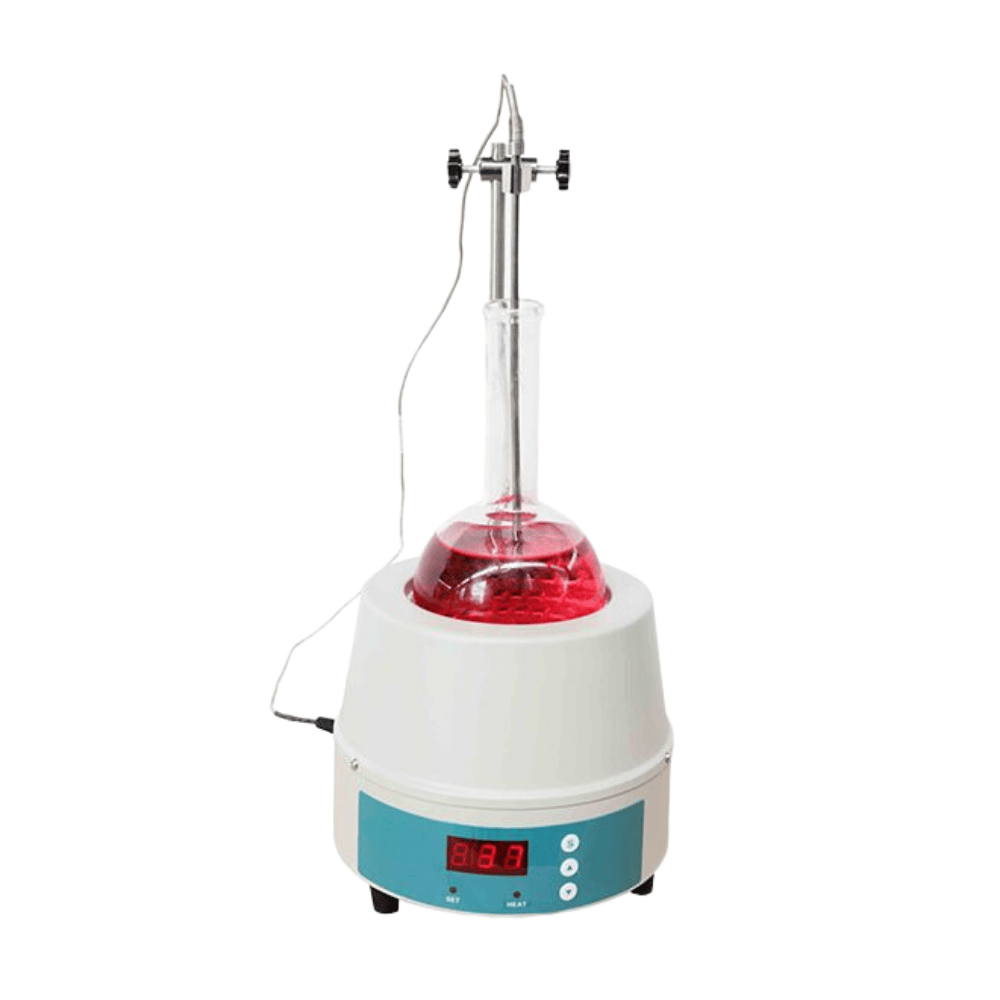

Digital Display Heating Mantle, CA-HMD Series
- Capacity(ml):50-20000
- Heating Mode:Surface heat-conduction
- Surface Max. Temp.( ℃):450℃
- Temperature control range:RT+20～250℃
- Heating element:Nichrome wire
Description
- PID Single Screen Temperature controller. Fast heating, temperature uniformity and high precise temperature control.
- Several Rows type, produce as Customer inquiry, beautiful shape, easy to operate and effective.
- PT100 Temperature sensor, with Adjustable Sensor Rack and Stainless Rods.
Specifications
| Model | CA-HMD-1 | CA-HMD-2 | CA-HMD-5 | CA-HMD-10 | CA-HMD-20 | CA-HMD-40 | CA-HMD-60 | CA-HMD-100 | HMD-200 | HMD-400 | |
| Function
|
Capacity(ml) | 50 | 100 | 250 | 500 | 1000 | 2000 | 3000 | 5000 | 10000 | 20000 |
| Heating Mode | Surface heat-conduction | ||||||||||
| Surface Max.Temp.( ℃) | 450℃ | ||||||||||
| Temperature control range | RT+20～250℃ | ||||||||||
| Structure
|
Heating element | Nichrome wire | |||||||||
| Shell(Insulation Layer) | High quality aluminum silicate cotton | ||||||||||
| Heating power (kW) | 0.08 | 0.1 | 0.15 | 0.25 | 0.35 | 0.45 | 0.6 | 0.8 | 1.2 | 2.5 | |
| Controller | Working Mode | Continuous | |||||||||
| Specification
|
Exterior size (mm) | ￠220×165 | ￠280×220 | ￠330×230 | ￠340×245 | ￠350×250 | ￠425×320 | ￠470×340 | |||
| Packing size (mm) | 230×230×195 | 290×290×300 | 340×340×350 | 360×360×300 | 390×390×310 | 430×430×350 | 510×510×380 | ||||
| Voltage(V) | 100～120V or 200～240V | 200～240V | |||||||||
| N.W. (Kg) | 2.5 | 5.5 | 6.5 | 7.5 | 8 | 9.8 | 16 | ||||
| G.W. (Kg) | 2.8 | 6 | 7 | 8 | 9.2 | 12 | 20 | ||||
