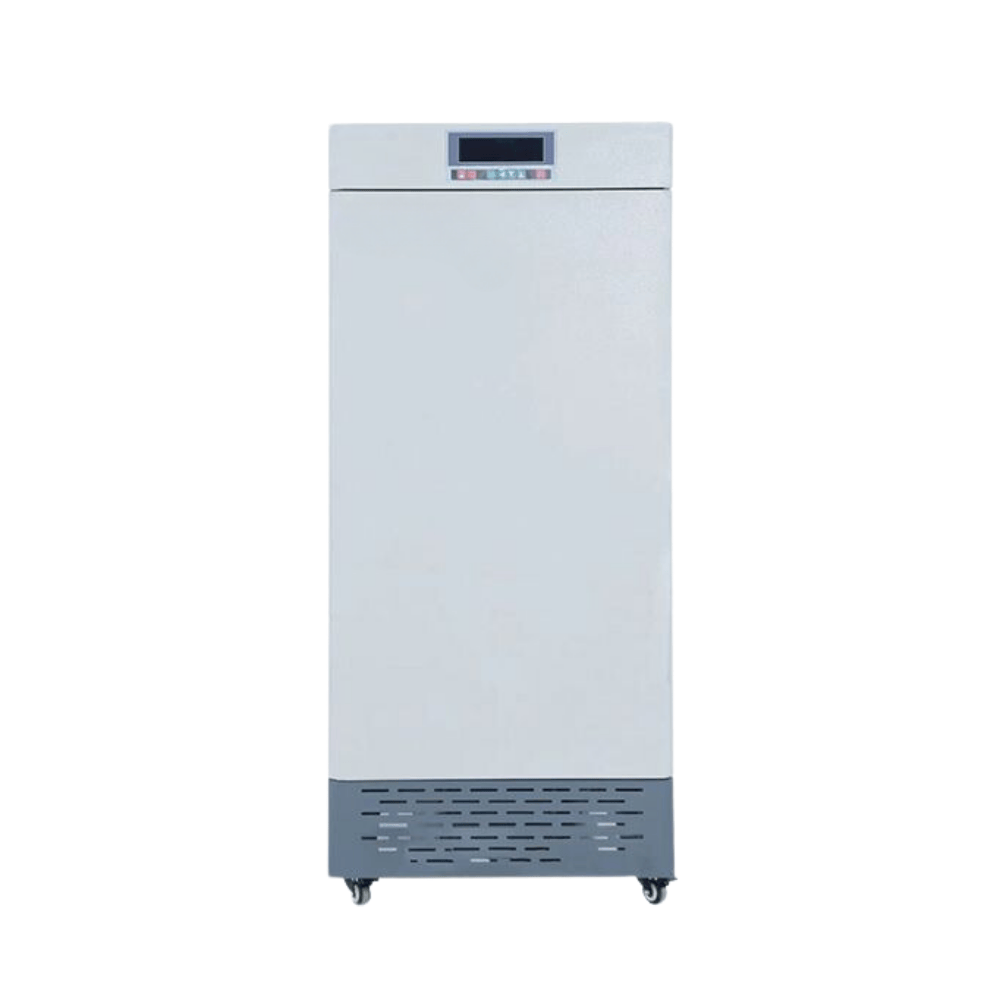

Climate Chamber, CA-ICB-CC250H/CC350H
- Capacity: 250L, 350L
- Humidity & Illumination & Temp control
- Temperature range: With lighting:10~50 ; Without lighting:4~50
- Test hole: Optional φ25, 50, 80mm
- Safety device: Leakage protector / Over- temp. alarm
Description
Applications
It is widely used in microbial tissue and cell culture, seed germination, seedling raising test, plant cultivation, insect and small animal feeding, etc. Different environmental and climatic conditions can be accurately simulated.
Features
Energy saving
Imported compressor, safe and reliable.
Defrosting function: three-stage electric heating defrosting program control.
Adopts energy-saving LED cold light source;The light intensity is adjustable in six levels to meet plants with different light needs.
Intelligent control of humidification method instrument.
Intelligent control
Large high efinition LCD display,with intelligent microcomputer control, parameter real-time display.
The intelligent temperature control system can continuously control temperature, light level and running time.
Internal circulation system
Back suction and bottom forced convection system.
Adopts high-quality fan and large impeller fan, the machine has higher ventilation efficiency and better temperature uniformity.
The shelf is laser hollowed out with round holes for better ventilation and better temperature uniformity.
Dedicated sheet metal processing
The shelf can be disassembled and can be freely adjusted up and down, with a minimum spacing of 30mm.
The inner chamber is made of high-quality brushed stainless steel, with strong corrosion resistance.
Humanized design
Built-in observation window to make the objects in the chamber clear at a glance.
Safety
Equipped with leakage protection device to ensure the safety of operators and other equipment in the laboratory.
Digital independent temperature limiter control sound and light alarm system.
Self-diagnosis function: display fault information, which is convenient for judging the fault point.
Optional
Test hole, internal socket, Digital independent temperature limiter
、Programmable temperature controller (Optional USB,RS485/232 and built-in printer)、Spare shelf
Specifications
| Model | CA-ICB-CC250H | CA-ICB-CC350H | |
| Capacity(L) | 250 | 350 | |
| Circulation Mode | Forced convection | ||
| Dimension(W*D*H) | Internal (mm) | 560*420*1050 | 560*530*1200 |
| External (mm) | 660*660*1700 | 670*730*1880 | |
| Temperature | Range (℃) | With lighting:10~50 ; Without lighting:4~50 | |
| Fluctuation (℃) | ±1 | ||
| Resolution (℃) | 0.1 | ||
| Uniformity (℃) | ±1 | ±2 | |
| Sensor | PT100 | ||
| Humidity | Range | 50~90%RH | |
| Stability | ±5 ~ ±7 % | ||
| Method | Internal | ||
| Sensor | High precision anti-condensation | ||
| Illumination(Lx) | 0~12000 | 0~15000 | |
| Illumination Control | 6-level relative illuminance control | ||
| Controller | PID | ||
| Display | Large high efinition LCD | ||
| Timer | 1~9999min (Optional 30*segments*100cycles) | ||
| Material | Internal | Stainless steel | |
| External | Cold rolled steel electrostatic spraying exterior | ||
| Shelves | 3 | ||
| Test Hole (Optional) | Φ 25,50,80,100mm | ||
| Internal Socket | Optional | ||
| Refrigerant | R134a (CFC free) | ||
| Defrosting Mode | Automatic | ||
| Safety Device | Visible& Audible over temperaure, over humidity, water shortage alarm ;leakage protector | ||
| Electricity | Voltage/Frequency | AC 220/110V, 50/60Hz | |
| Consumption (W) | 1500 | 2150 | |
| N.W./G.W. (kg) | 120 / 128 | 155 / 260 | |
| Package Dimension(W*D*H) (mm) | 810*770*1900 | 790*910*2060 | |
| Optional | Test hole, internal socket, Digital independent temperature limiter 、Programable temperature controller (Optional USB,RS485/232 and built-in printer)、Spare shelf |
||
