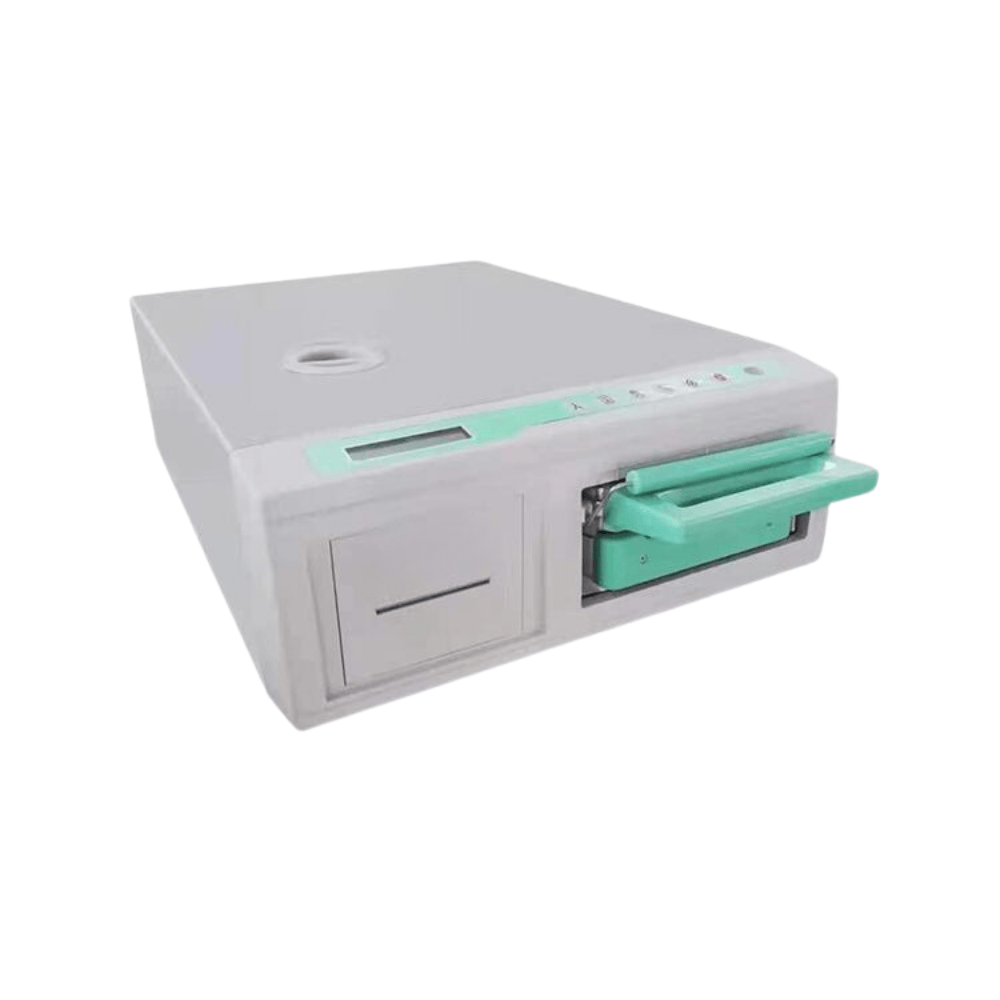

Name: Cassette Autoclave, CA-STC-5000
SKU: CA-STC-5000
Availability: InStock

Description

The sterilization effect is reliable and rapid. The whole process of non-wrapped sterilization takes 9 minutes, which is suitable for multi-department equipment operation and emergency.
Equipment size: 58 CM*46 CM*19CM; sterilization chamber size :38CM*18CM* 7.8cm; Sterilization box size (outside) : 48 CM *19.6 CM *8 CM.
It is easy to operate, the system operation is displayed on the screen; Sterilization procedures can be safely interrupted at any time.
With self-detection system, if a problem occurs in the process of operation, the system will automatically stop and the defective code will be displayed on the screen.
It is suitable for sterilization of instruments containing cavity and solid instruments, and it can be non-wrapped sterilization

Shorter cycle time, higher efficiency

SPECIFICATIONS

CA-STC-5000
Maximum Operating Pressure	242 kPa	Input Power	≤1.3 kVA
Operating Pressure Range	42 kPa ~ 212kPa	Atmospheric Pressure Range	70.0 kPa to 106.0 kPa
Maximum Operating Temperature	138° C	Ambient Temperature Range	+ 5 ° C ~ + 40 ° C
Operating Temperature Range	115 ° C – 135 ° C	Steam Generator Power	1.2 kVA ± 5%
Display accuracy	0.1℃	Fuse	F8AL250V phi 5 x 20 mm
Sterilization Volume	About 5.2 Liters	Safety Valve Setting Pressure	0.25 MPa
Tank Volume	3.4 Liters	Equipment Working Medium	Water Vapor
Water	Ultra-pure water, deionized water, laboratory water, distilled water,purified water.	Working Relative Humidity	≤85%
Power Supply Voltage	AC 220 V±22 V	Normal Use Place	Work room
Power Frequency	50 Hz ± 1 Hz	Run Mode	Run Intermittently (≤6 cycles/hour)
