SPECIFICATIONS

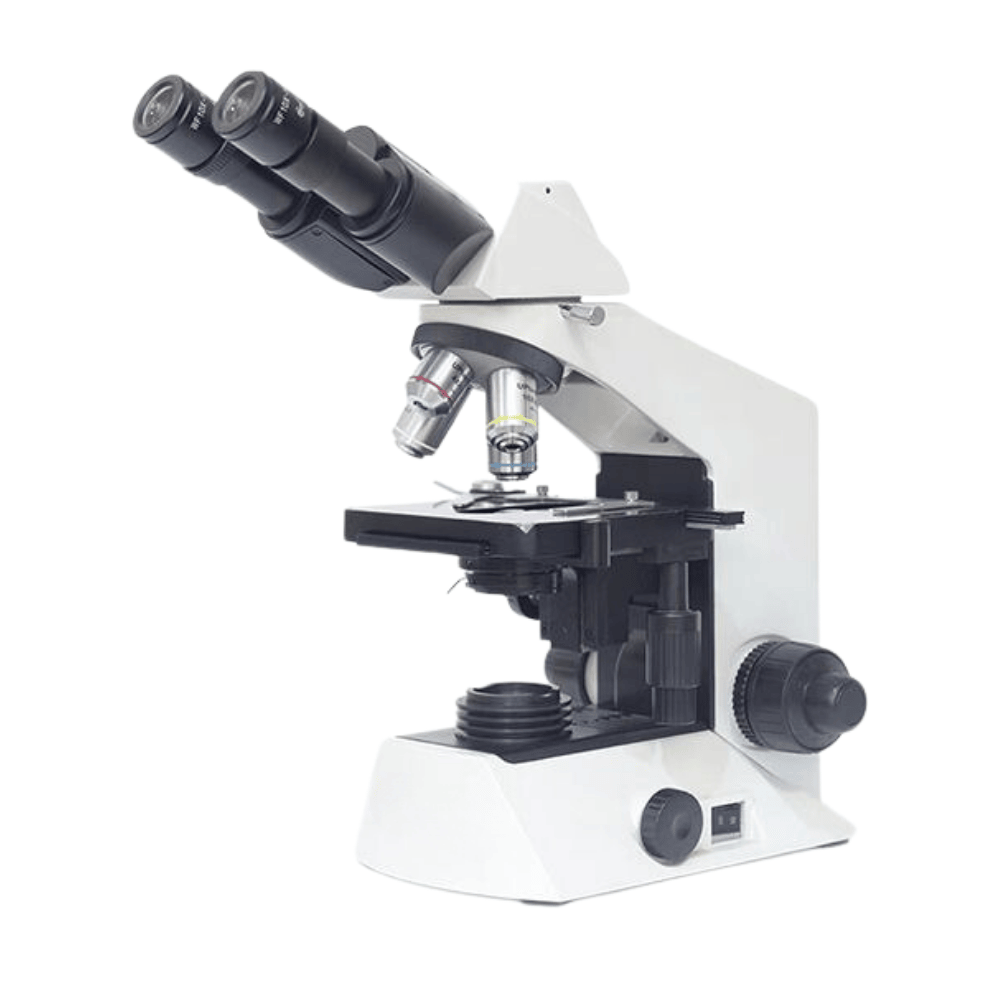

| Model | MSC-B201 |
| Optics | Infinity Optical System |
| Observation Tube | Tilting binocular,interpupillary 55-75mm |
| Viewing Head | Seidentopf head,inclined at 30° |
| Optical Coating | Transmittance ≥ 95% |
| Eyepieces | Wide field eyepiece WF10×18mm ，*WF16X,*WF20X，*WF10×20mm |
| Objective | Infinite plan achromatic objective 4X, 10X, *20X,40X, 100X |
| *Infinite plan phase objective:ph10X, 20X, 40X, 100X | |
| Nosepiece | Quadruple nosepiece / *Quintuple nosepiece |
| Stage | Double layers mechanical stage 140×135mm / 75×50mm |
| Condenser | Abbe NA1.25 with iris diaphragm & filter |
| Focusing | Coaxial coarse and fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 22mm |
| Illumination | 3W LED Illumination, brightness adjustable |
| *6V 20W Halogen lamp, brightness adjustable | |
| Electricity | 100-240V AC,50/60Hz |
| Package Dimension (W*D*H) (mm) | 370*260*480 |
| Gross Weight (Kg) | 8 |
| *Optional | Turret phase contrast kit,dark field attachment,fluorescent attachment, 360° rotatable viewing head |
