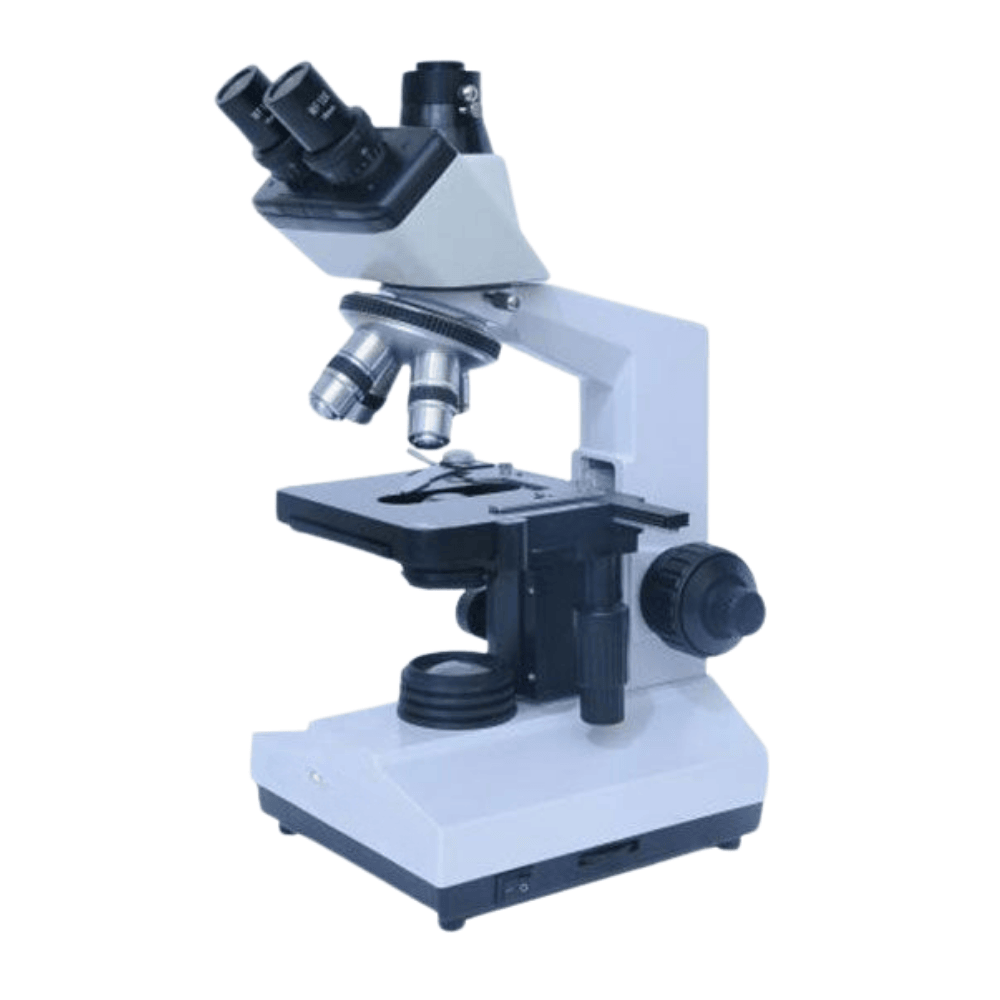

Biological Microscope, CA-MSC-B107T(Sliding)
- Viewing Head: Trinocular Head
- Eyepiece: Wide Field eyepiece WF10X18mm
- Objective: Achromatic Objective 4X,10X,40X,100X
- Illumination: S-LED Illumination, Brightness Adjustable
Description
Features:
Solid square base,Comfortable and simple operation, multiple accessories collocation, provide you with simple and rich experience.
-Objectives
Achromatic Objective
The use of fluorescent achromatic objective lens, low cost, meet the needs of daily fluorescence
-Fluorescent Viewing
Single channel fluorescent module/Dual channel fluorescent module
Fluorescence filter group:DAPI,FITC,TRITC,Texas Red,GFP,CFP,CY5;
Fluorescent Illumination:100W Mercury Lamp Housing/5W LED Lamp.
Fluorescence filter group
High transmittance, high cut-off and deep cut-off depth filters are used to make the image brighter, contrast sharper and background darker.
-Dark-field Viewing
It can be used for clearly viewing of blood or flagellum etc. fine structure.
-Phase Contrast Viewing
Operators can get high contrast image of neutral background color whatever the magnifications are. lt is suitable for viewing non-stained specimen.
-Camera
USB2.0 Camera:5.0M(EC510/TC 5.0),USB3.0 Camera(TC 6)
Specifications
| Model | MSC-B107T(Sliding) |
| Optics | Finite Distance Optical System |
| Observation Tube | Tilting trinocular,interpupillary 55-75mm |
| Viewing Head | Sliding head,inclined at 45° |
| Optical Coating | Transmittance ≥ 95% |
| Eyepieces | Wide field eyepiece WF10×18mm |
| Objective | Achromatic objective 4X, 10X, *20X,40X, 100X |
| *Plan achromatic objective: 4X, 10X, 20X, 40X, 100X | |
| *Plan phase objective: Ph10X, 20X, 40X, 100X | |
| Nosepiece | Quadruple nosepiece / *Quintuple nosepiece |
| Stage | Double layers mechanical stage 140×135mm / 75×50mm (*heating module) |
| Condenser | Abbe NA1.25 with iris diaphragm & filter |
| Focusing | Coaxial coarse and fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 28mm |
| Illumination | 3W LED Illumination, brightness adjustable |
| *6V 20W Halogen lamp, brightness adjustable | |
| Electricity | 100-240V AC,50/60Hz |
| Package Dimension (W*D*H) (mm) | 330*280*440 |
| Gross Weight (Kg) | 6.5 |
| *Optional | Turret phase contrast kit ;dark field attachment; fluorescent attachment |
| MSC-B107T: Microscope camera (standard imaging software) / Win 10 Pad / digital display | |
| *Optional Configuration |
