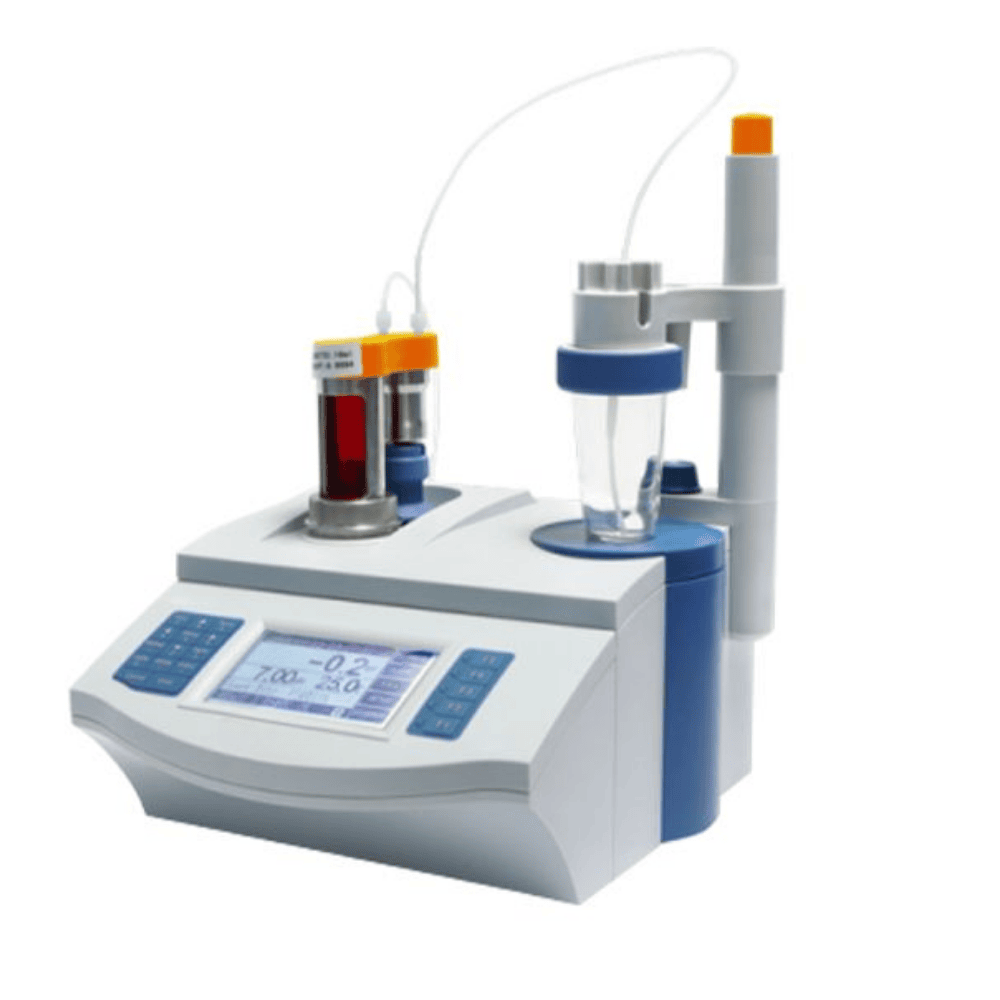

Automatic Potential Titrator, CA-TITR-A40

  • LCD display screen and smart guide system.
  • Support titration modes: DET , MET , SET and MAT .
  • pH calibration and measurement are supported.
  • Store up to 50 titration data sets and 1 latest set of titration curve.
  • Titrator can be controlled by computer
SKU: CA-TITR-A40 Category:

Description

Compared with indicator titration, potentiometric titration has the advantages of objective reliability, high accuracy, easy automation, and is not limited by the color and turbidity of the solution. It is an important analytical method.

According to the indication principle and the chemical reaction that occurs, the indication methods often used in titration analysis can be generally classified into: potentiometric titration, coulomb titration, permanent stop titration, conductometric titration, photometric titration, and temperature titration.

  • LCD display screen and smart guide system.
  • Titration methods, curves and results are displayed in detail.
  • Replaceable burette with high-accuracy (10 ml or 20 ml selectable).
  • Support titration modes: DET (dynamic equivalence point titration), MET (monotone equivalence point titration), SET (Preset Endpoint Titration) and MAT (manual titration).
  • pH calibration and measurement are supported.
  • Store up to 50 titration data sets (GLP-compliant) and 1 latest set of titration curve.
  • Data can be easily transferred to printer via RS-232 communication interface..
  • Titrator can be controlled by computer via USB or RS- 232 communication interface.

Specifications

Model CA-TITR-A40
Burette Titrimetric Repeatability 0.20%
Accuracy 10ml Burette: ±0.025ml      20ml Burette: ±0.035ml
Resolution 10ml Burette: 1μl           20ml Burette: 2μl
Mechanical Unit Resolution 1/10000
Measuring Unit Range (-1800.0 ~ 1800.0) mv, (0.00 ~ 14.00)pH
Resolutions 0.1mV, 0.01pH
Accuracy pH: ±0.01pH, mv: ±0.03%FS
Fluctuation (±0.3mV±1bit) /3h
Temp. Compensation Range (-5.0 ~ 105.0) ℃
Resolutions 0.1 ℃
Accuracy ±0.3 ℃
General Electricity AC Adapter, 100-240V AC input, DC24V output
Dimension (mm)& Weight (kg) 340×400×400, 10
