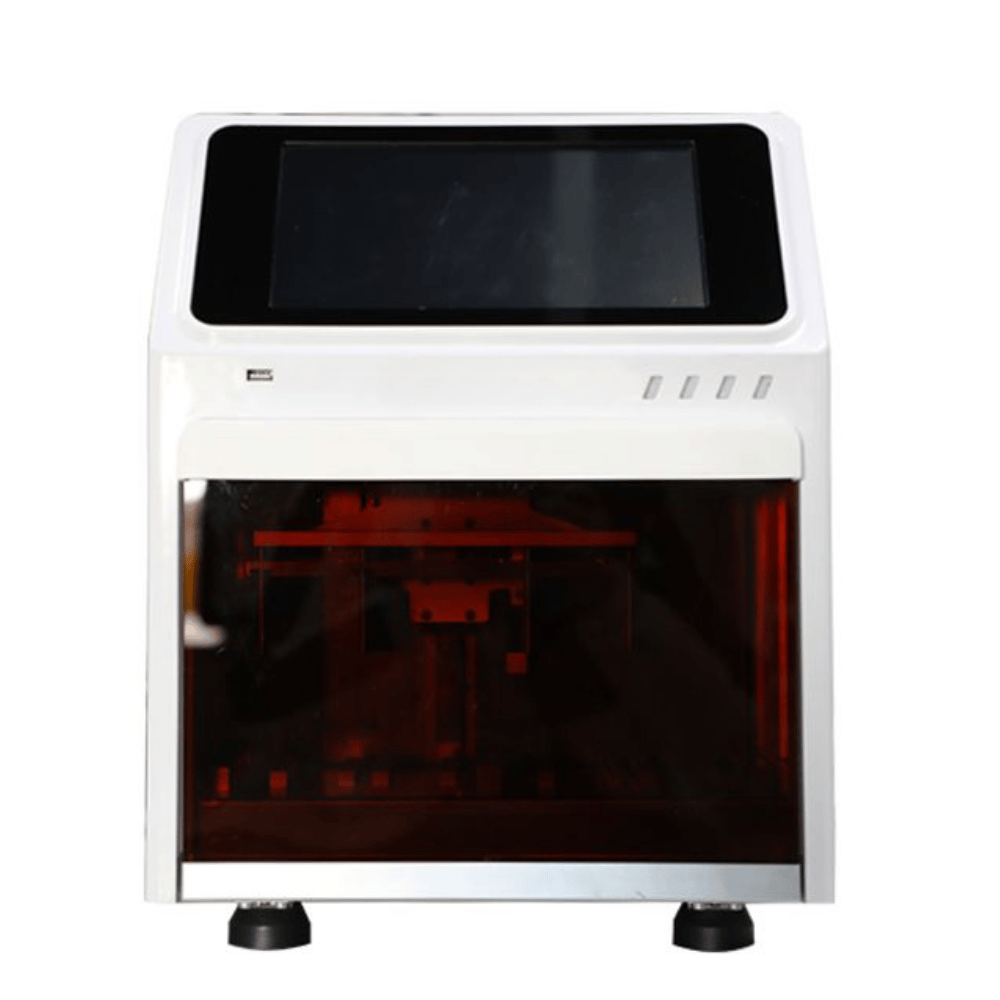

Automatic Nucleic Acid Extractor System with HD Color Screen, CA-NAE-0132

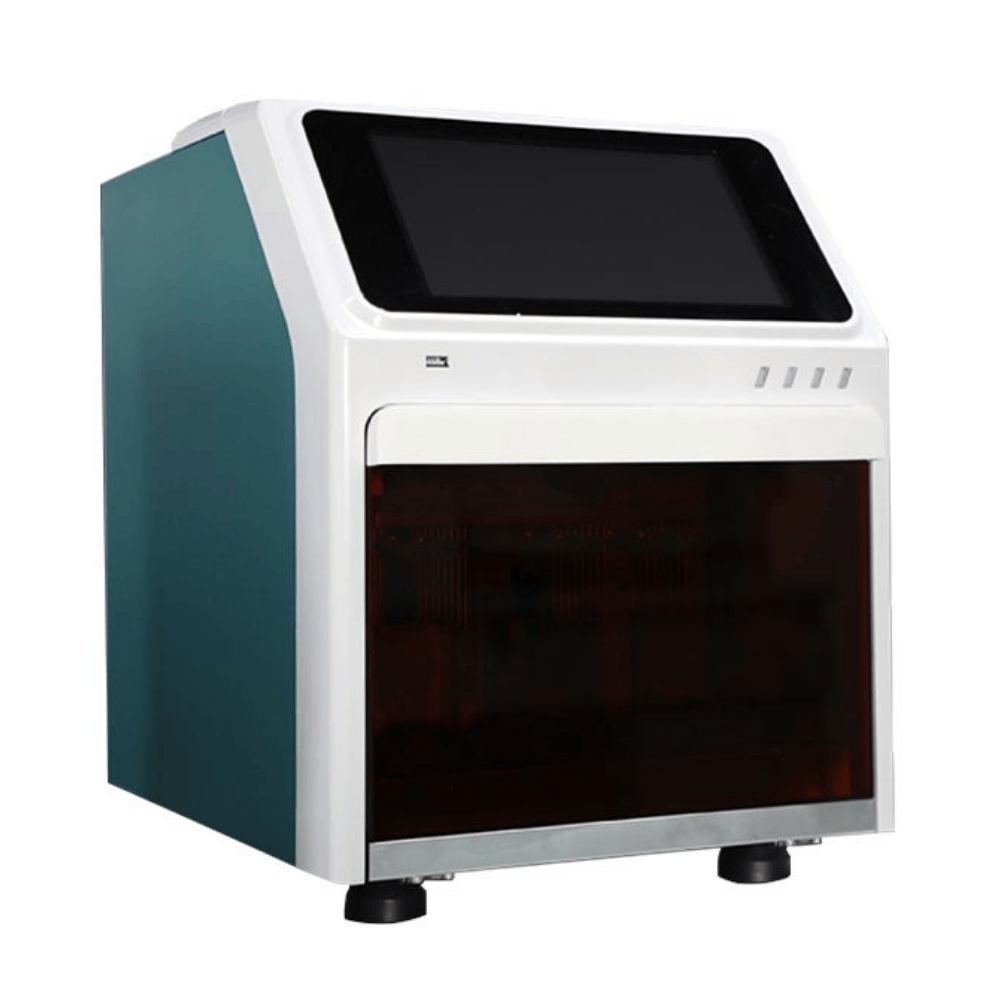

Automatic Nucleic Acid Extractor System with HD Color Screen, CA-NAE-0132 - Image 2

Automatic Nucleic Acid Extractor System with HD Color Screen, CA-NAE-0132

& Free Shipping
  • High throughput:1-32
  • Huge kit portfolio
  • Prefilled 96-well plates
  • Easy to set up and run
  • No cross-contamination
  • The residual amount of magnetic beads is <0.5%
SKU: 11104 Category:
Guaranteed Safe Checkout
Get Quotes Now!

Description

  1. The intelligent cycle magnetic absorption function can realise the magnetic bead residue of any system < 0.5%.
  2. The magnetic rod can be dismantled to facilitate repair and change, hence prolonging the device’s use time.
  3. Adjustable to multiple scales and modules, and meet the requirements of different trials;
  4. Adopt a deep vacuum heating strip with strong wrapping ability, and reduce the bias between the set temperature and the actual temperature.
  5. Mounted with the ultraviolet disinfectant device and a level 11 HEPA high-efficiency air filter net, which reduces aerosol pollution.
  6. Adopt a Linux system and interchange easily between the Chinese and English interfaces;
  7. Able to save the program according to the extraction type, convenient for search.

Specifications

Model CA-NAE-0132
Working voltage AC110-240V,50-60Hz
Working temperature 10-40°C
Working humidity Below 80%
Specimen flux 1-32, minimum specimen disposal amount specimen/time
Extracted plate position 2 positions
Applicable consumables 96 deep well plate, 6-well reagent stripe, etc.
Heating position Columns 2,6,8,12 can be heated
Temperature control 10 – 99°C
Working volume 20-1000ul
Magnetic bead recovery rate >99.5%
Screen display The graphic colour control panel is ok for independent use; a computer is not needed.
Sensation equipment Pyroelectric technique
Operation interface 10-inch, 1024 x 768 colour screen, interchangeable between Chinese and English
Net set Ethernet can be extended to realise remote control
Ultraviolet light Yes
Pollution control Level 11 HEPA filter net
External dimension (405mmx350mmx465mm) mm±10mm
Instrument weight 22.5kg±0.5kg
USB interface Yes
Noise <60db
Experiment storage At most 64 accounts can be established, and each account has at most 100 program storage spaces
Program management Program program-classified management function is built inside, and the program can be pre-set
Oscillatory mix Adjustable with multiple modules and scales
Magnetic absorption module One-step magnetic absorption and multiple magnetic absorption
Magnetic absorption cycle time 1-10 adjustable
