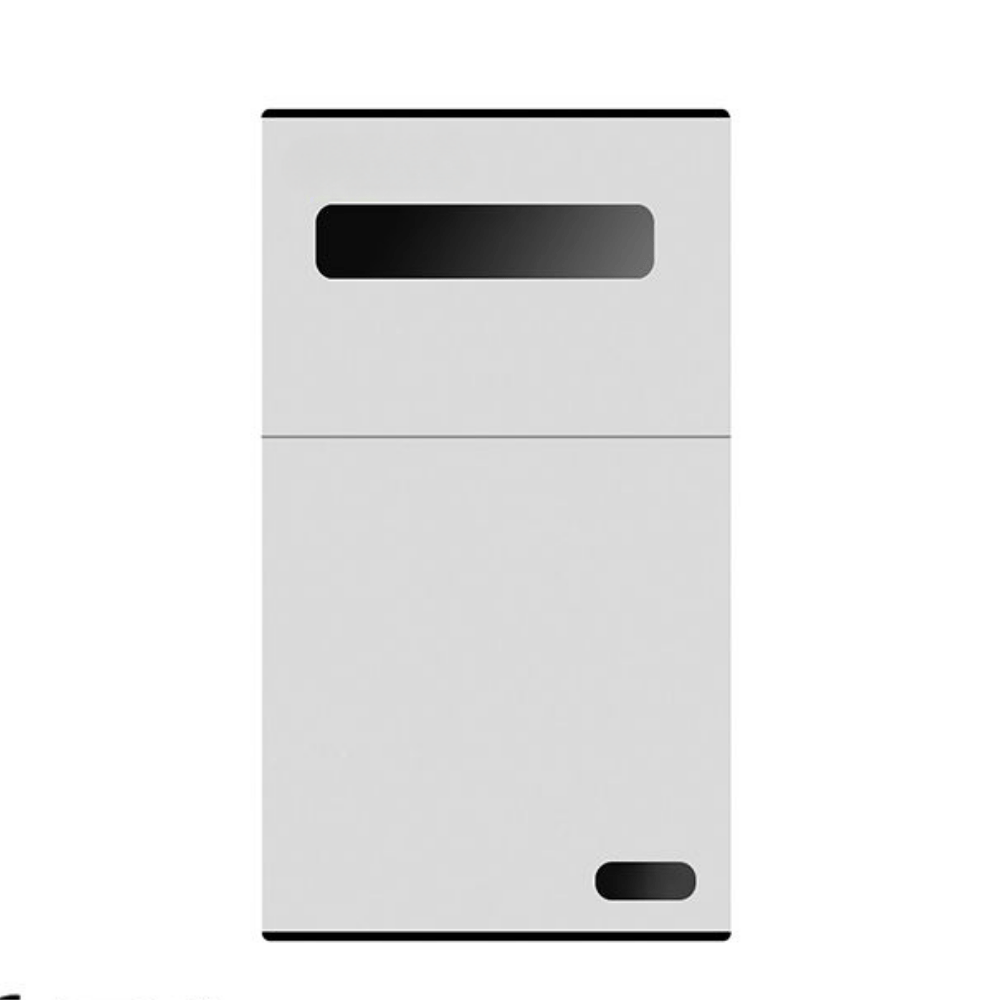

Automatic Chemiluminescence Gel Imaging System, CA-GEP-GD900
- High QE: >95%
- Pixel Size: 4.63μm×4.63μm
- Exposure: 1ms-120min
- Cooling Temperature: -65℃
Description
Application
The Gel Imaging System can be used to do nucleic acid tests for various fluorescent dyes, such as EB, SYBR Gold, SYBR Green, SYBR Safe, Gel Red Gel Green Texas, and Red Fluoresce in marked DNA/RNA.
Features
Easy to use & Humanized design
It is a highly integrated and fully automated gel imaging system. The system interface is simple and practical, the main interface has a shooting button and time control to guide the user. It is very easy to operate, with no need to have manual tedious debugging.
High-resolution camera
It has a scientific research camera with low noise, high sensitivity, and high pixels, paired with a high-definition autofocus lens, and a specialized filter for nucleic acid dyes to present perfect imaging for you.
Specialized overlay glue cutting filter
Specialized overlay glue cutting filter, compared with the traditional one, it has many advantages, easy to operate,can prevent UV and blue light damage, no need to operate in dark room, work very well under strong light condition. The white light sample plate is used for SDS-PAGE glue samples shooting.
Specifications
| Model | CA-GEP-GD900 |
| Pixel | 12.0MP |
| Cooling Temperature | -65°C |
| QE | High QE: >95% |
| Pixel Size | 4.63μm×4.63μm |
| Binning | 1×1 2×2 4×4··· 8×8 |
| Exposure | 1ms-120min |
| Bit | 16 bit (0-65535) |
| OD | ≥4.8OD |
| Lens | F = 0.95, 25mm, optional F= 0.8, 25mm |
| UV Transmission | 302nm, Area:21*21cm |
| Lighting | LED |
| UV Reflection | No |
| Filter Whee | Optional 2,5 position filter wheel |
| Filter | Optional 590nm, Other options |
| Imaging Area | 20*20cm |
| APP Timer Shut Down | 1 ~ 60min |
| Dimension | 380*405*695mm |
| N.W./G.W. | 35.8kg/38.5kg |
| Shipping Dimension | 500*525*825mm |
