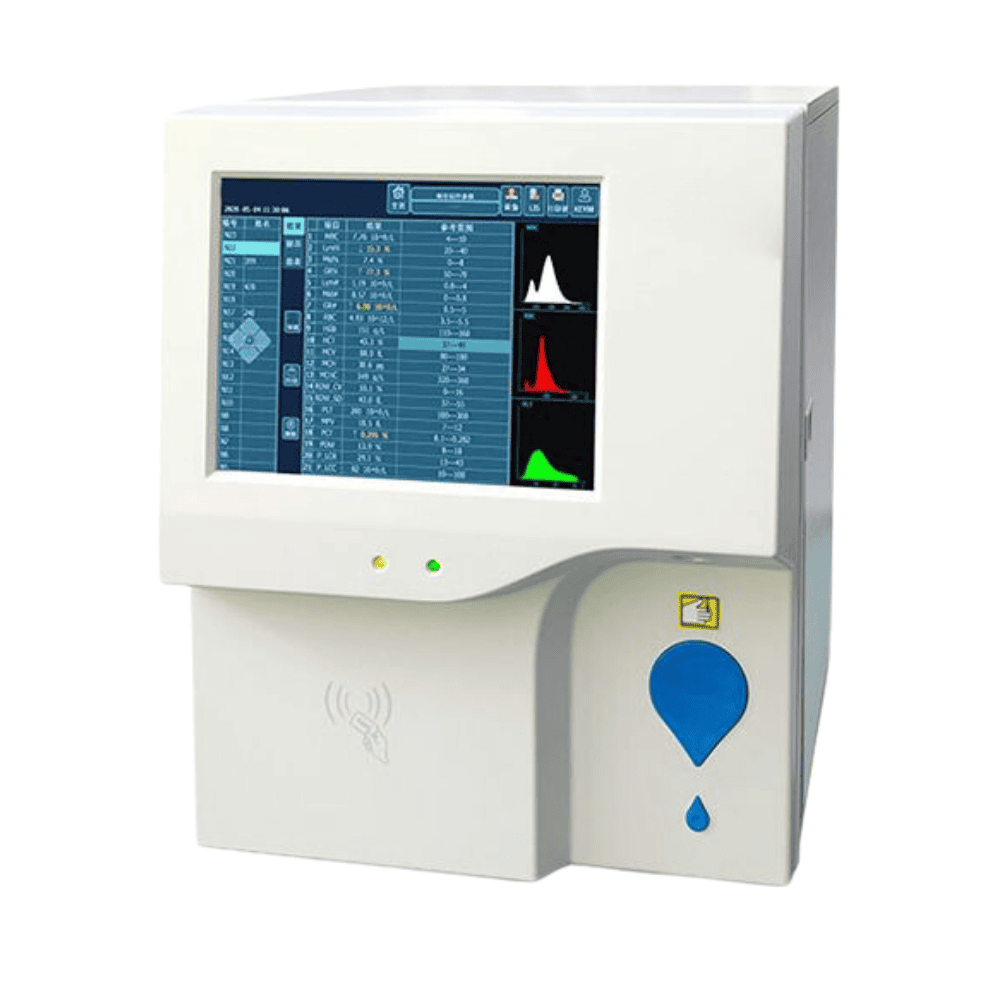

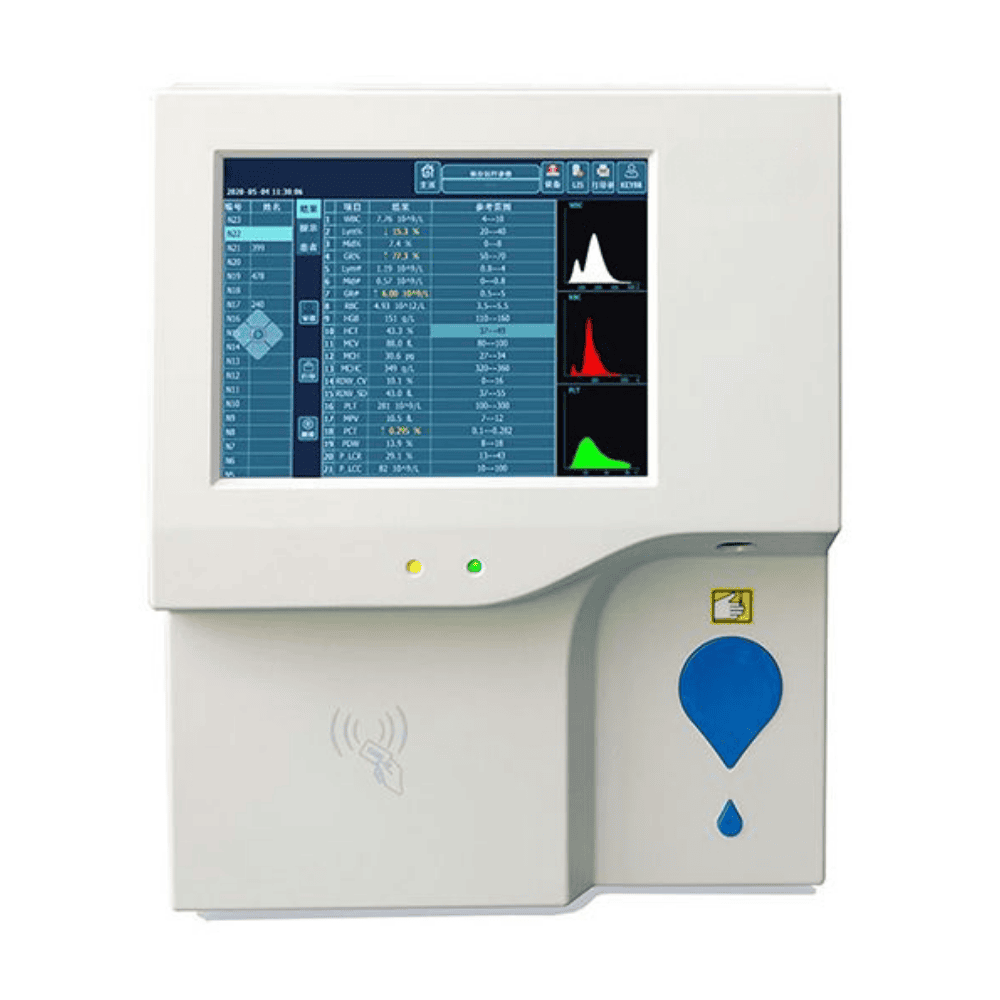

Auto Hematology Analyzer, 3 Parts, CA-HEMA-D6190
- 21 parameters, 3 histograms
- 60 tests/hour
- 10.4 inch touch screen
- External thermal printer
- Double chambers for WBC and RBC/PLT
- Storage ≧200,000 sample results
Description
- 21 parameters + 3 histograms
- 10.4 inches color touch screen display
- Up to 60 tests per hour；
- 3-part differentiation of WBC
- Double chambers for WBC and RBC/PLT
- External thermal printer
- Barcode scanner for option
- Storage ≧200,000 sample results
 |
10.4 inches color touch screen display |
 |
External printer , Barcode scanner, LIS |
SPECIFICATIONS
| 21 Parameters | WBC,LY#,MID#,GR#,LY%,MID%,GR%,RBC,HGB,HCT,MCV,MCH,MCHC,RDW-SD,RDW-CV,PLT,MPV,PDW,PCT,P-LCR,P-LCC |
| Histogram | Histogram for WBC,RBC,PLT |
| Method | Coulter principle |
| Colorimetry hamoglobin determination | |
| Throughput | 60 tests/hour |
| Display | 10.4″ color touch screen display |
| Language | Chinese, English, Portuguese, Hindi, Spanish, French, Thai, Vietnamese |
| Sampler Volume | Predilute 20μl |
| Whole blood 10μl | |
| Intelligent reagent management function | Reagent information and residual display |
| Carryover | WBC≤1.5% |
| RBC,HGB<1.0% , PLT≤2% | |
| Input and output | 1 RS232 , keyboard , Mouse |
| 4USB,LAN | |
| Printout | External thermal printer |
| Option | Barcode scanner, LIS |
| Operating Environment | Temperature 10-35℃ |
| Humidity≤90% | |
| Data storage | Over 200,000 sample results (with histograms) |
| Power requirement | AC 100-240V |
| 50/60HZ , 300VA | |
| Demension | Instrument: 354mm(H)*430mm(W)*440mm(D) |
| Package: 520mm(H)*570mm(W)* 600mm(D) | |
| Weight | Net :17kg |
| Gross:21. 8kg |
Performance
| Parameter | Linearity range | Precision(CV%) |
| WBC(10 9/L) | 0.0-100.0 | 2.0(4.0-10.0) |
| RBC(1012/L) | 0.00-9.99 | 1.5(3.50-5.50) |
| HGB(g/L) | 0-300 | 1.0(110-160) |
| PLT(109/L) | 0-1000 | 5.0( 100-300) |
