Description
- Adopt an imported oxygen sensor, and the oxygen concentration is directly displayed on the touch screen, convenient for observation.
- Equipped with a large touch screen, a high-precision PLC controller and sensor, good stability, reliability, and easy operation.
- With a USB interface, it can store 6 months of data.
- Special-made transparent impact-resistant window, which allows for clear and direct observation of the indoor operation.
- Removable front cover, easy to place the instrument inside, and easy to clean.
- UV lamp for sterilization.
- Equipped with a light and a power socket.
- Using a high-efficiency palladium catalyst to keep the oxygen concentration without frequent activation.
- Fully automatic control for gas replacement in the operating room, with positive pressure and negative pressure protection.
- Automatic vacuum pumping and pressure maintaining for sampling and aisle room.
- Sample transfer: 40 pcs of 90mm plates can be transferred at a time
- Unique oil bottle type pressure relief design, protects internal positive pressure and prevents air leakage.
- Equipped with leakage protection.
- Adopt oil oil-free vacuum pump.
Specifications

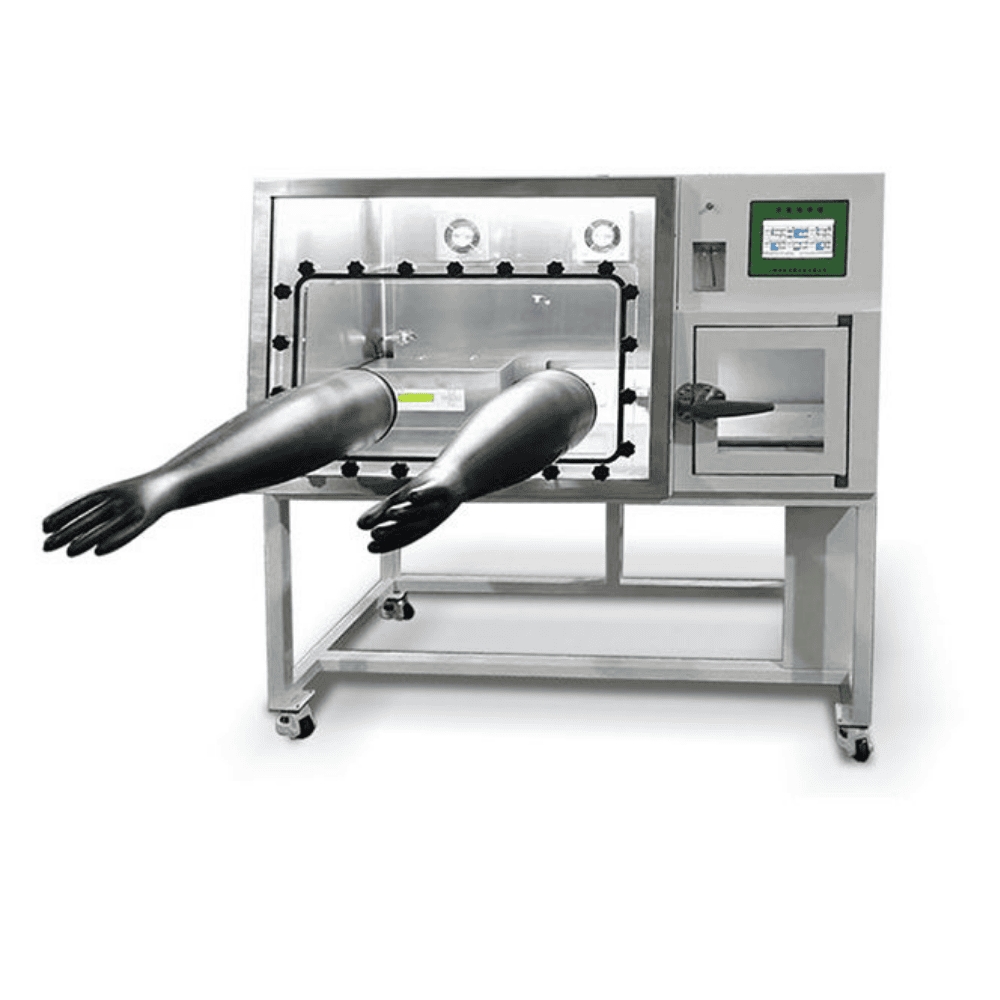

| Model | CA-ICB-AN3P-20 |
| Temperature Range | RT+3~60℃ |
| Temperature Stability | ＜±3℃ |
| Temperature Uniformity | ＜±0.3℃ |
| Anaerobic level | Operation room＜5ppm |
| Time for creating an anaerobic state in the sample chamber | ＜10 minutes |
| Anaerobic status creating | Vacuum+air replacement（N2+mixed gas） |
| Time for creating an anaerobic state in the operation chamber | ＜70 minutes |
| Anaerobic environment maintenance time | ＞13 hrs.(when no supply of mixed gas) |
| Air Replacement | Automatic |
| Interior Chamber Size (W×D×H)cm | 42×30×50 |
| Sample Room Size (W×D×H)cm | 40×33×32 |
| Sampling room channel ruler）(W×H)cm | 27.5×29.5 |
| Operation Chamber Size (W×D×H)cm | 95×68×75 |
| Exterior Size( W×D×H)cm | 140×73×137 |
| Package Size (W×D×H)cm | 154×87×155 |
