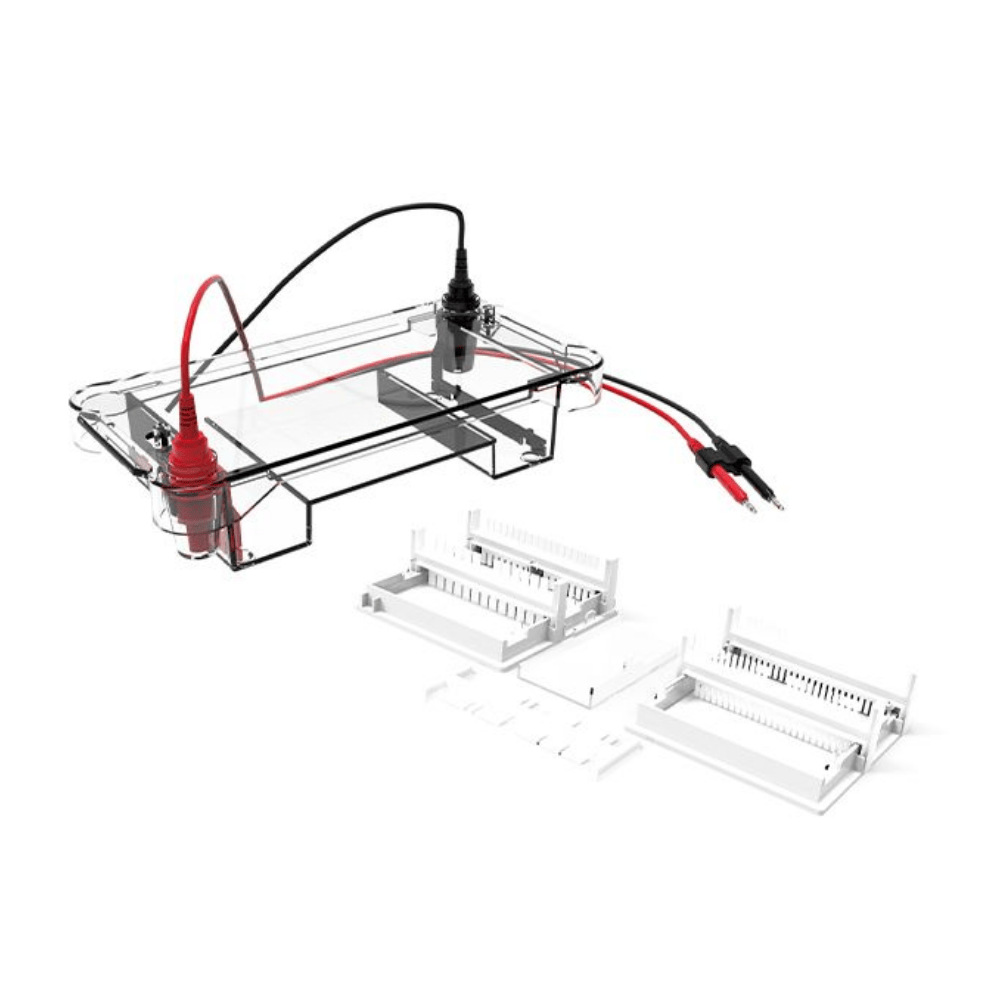

Agarose Horizontal Electrophoresis Tank, CA-GEP-HH-SUB02
- Can make 4 kinds of gels with different sizes
- 2 kinds of gel makers are optional
- Gel Area:120*120mm/120*60mm/60*120mm/60*60mm
Description
Usage:
This product is suitable for nucleic acid electrophoresis, separation and identification of DNA, and determination of its molecular weight.
Features:
- Polycarbonate injection molding at one time, no leakage.
- Can make 4 kinds of gels with different sizes, and two kinds of gel makers are optional.
- Limit function, will not make the positive and negative electrodes installed backwards.
- Optional HT10LG electrophoresis monitor can be used in the electrophoresis process.
- Time monitoring electrophoresis band.
- The electrode can be replaced for easy maintenance.
- 99.99% high purity platinum electrode has the best conductivity and corrosion resistance.
Specifications
| Model | CA-GEP-HH-SUB02 |
| External Dimension（L*W*H） | 330*160*120mm |
| Package Dimension (W*D*H) (mm) | 390*230*210 |
| Gel Area(W*L) | 120*120mm/120*60mm
60*120mm/60*60mm |
| Sampling Comb | 2+3 teeth/6+13 teeth/8+18 teeth/11+25 teeth
(gun sampling) |
| Name | Quantity |
| Upper cover of electrophoresis cell
(including wires) |
1set |
| Lower shell of electrophoresis cell
(including electrodes) |
1set |
| Gel-making box(big gel) | 1pc. |
| Gel-making box(small gel) | 1pc. |
| Large gel tray (120*120) | 1pc. |
| Wide gel tray (120*60) | 1pc. |
| Long gel tray (60*120) | 1pc. |
| Small gel tray (60*60) | 2pcs. |
| Sampling comb(2+3 teeth) | 1pc. |
| Sampling comb(6+13 teeth) | 1pcs. |
| Sampling comb(8+18 teeth) | 1pcs. |
| Sampling comb(11+25 teeth) | 4pcs. |
