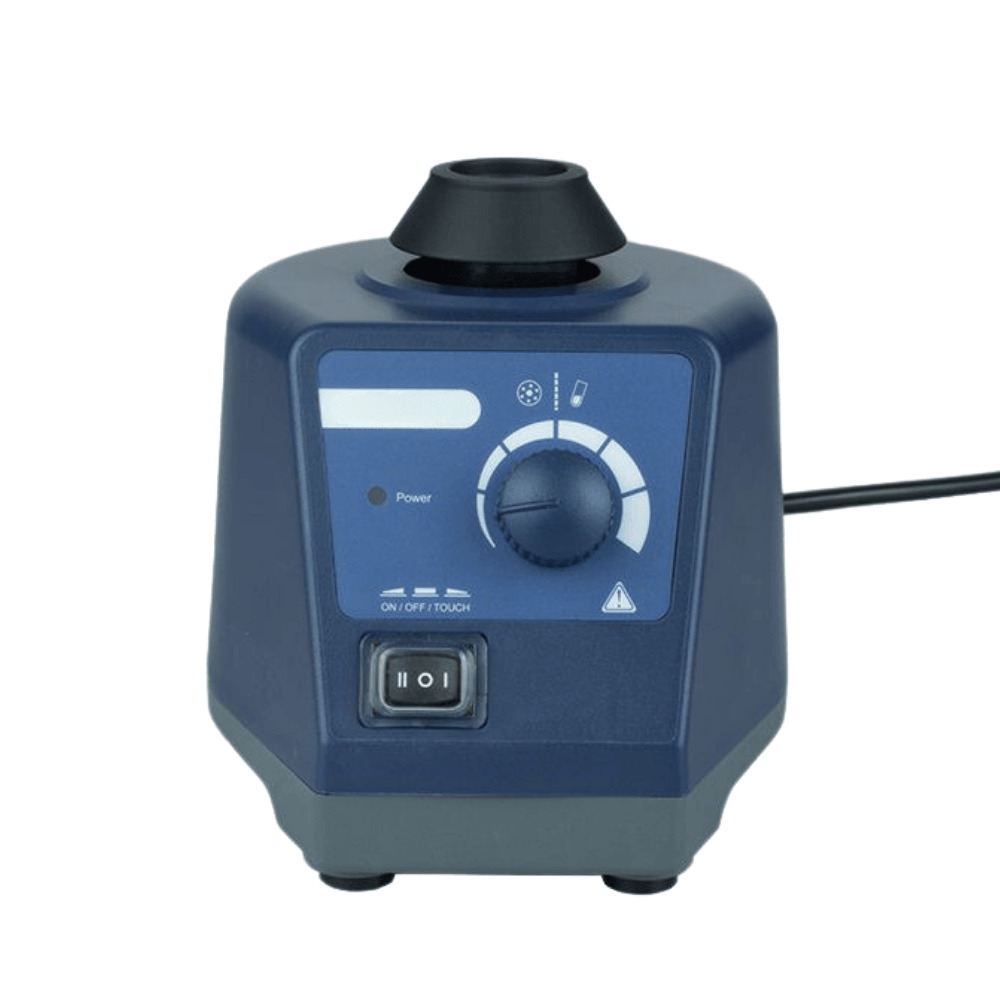

Adjustable Speed Vortex Mixer, CA-VMX-S
- Speed range: 0-3000rpm
- Run type: Touch operation
Description
Vortex Mixer
The Vortex Mixers are ideal instruments for mixing liquid components in tubes, resuspension of cells, using an eccentric mechanism. They are widely used in biological and chemical analysis applications.
CA-VMX-S Vortex Mixer Features:
1.Touch operation or continuous mode
2.Variable speed control from 0 to 3000rpm
3.Used for various mixing applications with optional adapters
4. Specially designed vacuum suction feet for body stablility
5.Robust aluminum-cast construction
SPECIFICATIONS
| Model | CA-VMX-S (Adjustable speed) |
| Voltage | 110-120V/220-230V,50/60Hz |
| Power | 60W |
| Mixing motion | Orbital |
| Orbital diameter | 4mm |
| Motor type | Shaded pole motor |
| Motor rating input | 58W |
| Motor rating output | 10W |
| Speed range | 0-3000rpm |
| Speed display | Scale |
| Run type | Touch operation |
| Dimension[W×H×D] | 127×130×160mm |
| Weight | 3.5kg |
| Permissible ambient temperature | 5-40℃ |
| Permissible relative humidity | 80%RH |
| Protection class | IP21 |
Accessories of VMX-S
Standard accessories
| Standard top | After installation |
| VT1.1
For＜φ30mm tubes and small vessels
|
Touch mode (High speed area) Continuous mode (Low speed area) |
Optional accessories
| Universal top plate | Platform pad | After installation |
| VT1.3
φ100mm |
VT1.3.6
φ99mm, multiple small tubes and vessels
|
Continuous mode (Low speed area) |
| Universal top plate | Tube adapter | After installation |
| VT1.3
φ100mm |
VT1.3.1
48×φ6mm(1mL tubes)
|
Continuous mode (Low speed area) |
| VT1.3.2
15×φ10mm(1.5-2mL tubes)
|
||
| VT1.3.3
16×φ12mm(5mL tubes)
|
||
| VT1.3.4
8×φ16mm(10mL tubes)
|
||
| VT1.3.5
8×φ20mm(10-15mL tubes)
|
||
| VT1.3.8
24×φ10mm(1.5-2mL tubes)
|
||
| VT1.3.9
56×φ5mm(0.1-0.5mL PCR tubes, PCR strip tubes)
|
||
| VT1.3.10
4×φ28mm(50mL tubes)
|
||
| VT1.3.11
12×φ9.8mm+12×φ6.6mm+12×φ5mm(1.5/2.0/0.5/0.2mL tubes)
|
||
| VT1.3.12
30×φ9.8mm+55×φ6.6mm+44×φ5mm(1.5/2.0/0.5/0.2mL tubes)
|
| Tube holding rod | Tube adapter | After installation |
VT1.2 |
VT1.3.1
48×φ6mm(1mL tubes)
|
Touch mode (High speed area) |
| VT1.3.2
15×φ10mm(1.5-2mL tubes)
|
||
| VT1.3.3
16×φ12mm(5mL tubes)
|
||
| VT1.3.4
8×φ16mm(10mL tubes)
|
||
| VT1.3.5
8×φ20mm(10-15mL tubes)
|
||
| VT1.3.8
24×φ10mm(1.5-2mL tubes)
|
||
| VT1.3.9
56×φ5mm(0.1-0.5mL PCR tubes, PCR strip tubes)
|
||
| VT1.3.10
4×φ28mm(50mL tubes)
|
||
| VT1.3.11
12×φ9.8mm+12×φ6.6mm+12×φ5mm(1.5/2.0/0.5/0.2mL tubes)
|
| Microplate clamp | After installation |
| PS1.0
Include rectangle PCR tube adapter
|
Continuous mode (Low speed area) |
| Ampule/Tube Attachment | After installation |
| VT1.4
4pc ampule/tube(0.2-15mL)
|
Continuous mode (Low speed area) |
| Erlenmeyer flask attachment | After installation |
| VT1.5
100-250mL, Operating speed: 0-1500rpm
|
Continuous mode (Low speed area) |
