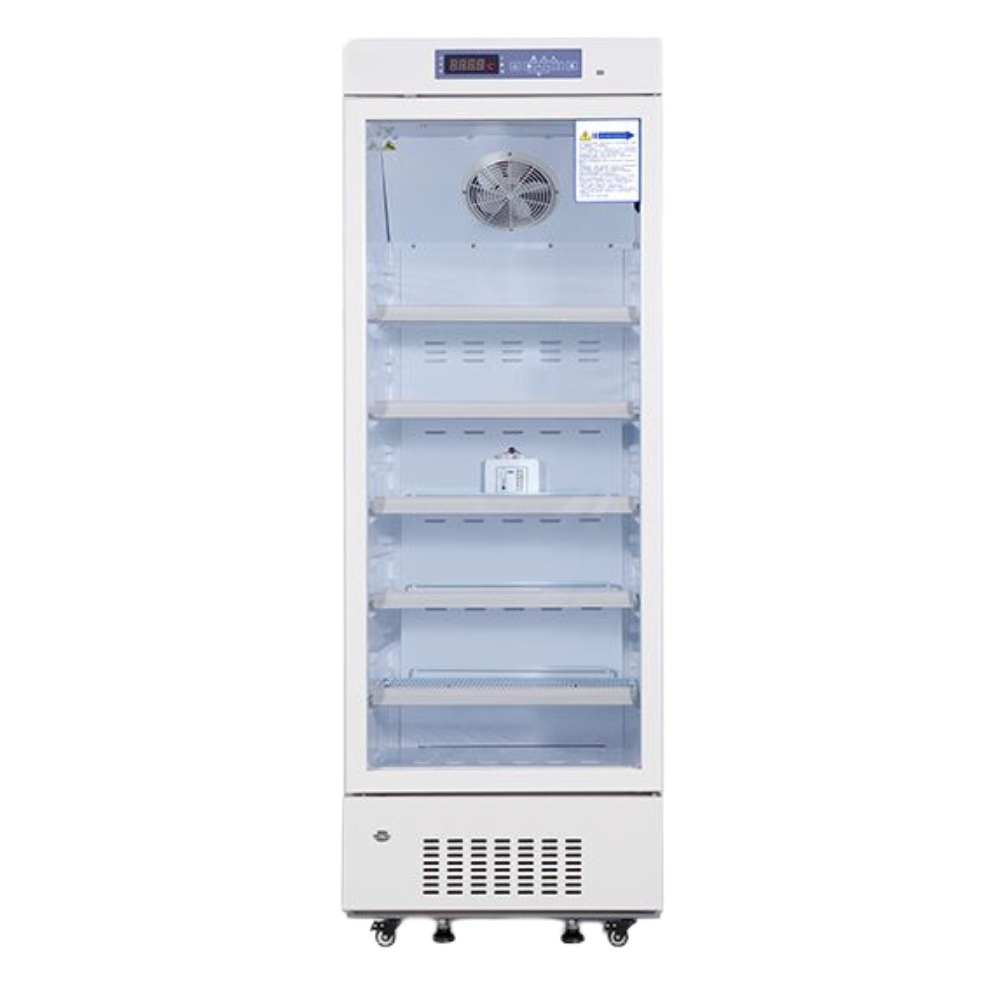

2~8℃ Single Door Laboratory Refrigerator

  • Capacity:312L
  • Cooling method:Forced Air Cooling System
  • Defrost:Auto
  • Refrigerant:R290
  • Sensor Type:NTC
  • Temperature controller:Microprocessor

Description

Reliability and Key Features
High efficiency specially compressor with known field proven reliability.
Permanently lubricated cooling fan for safety and longevity.
Forced-air cooling with optimized air distribution system designed.
To achieve maximum temperature uniformity and stability.
Optimized refrigeration system design for more effective cooling and speedy recovery.
Temperature variation within ±3℃.
Adjustable temperature range 2-8℃.
Microprocessor control digital display, and temperature adjustment with an increment of 0.1℃.
Large digital display screen.

Characteristic Function
Safety door lock design to avoid door ajar.
Big digital screen display for easy observation.
Optional testing hole.
Adjustable shelves.
Inner light design for a clear display.

Safety
Equipped with a complete temperature alarm system featuring audible buzzer and visible flashing light.
Capable of alerting failures due to high and low temperature sensor error, door ajar, power failure and low battery.

Forced Air-cooling System
Advanced forced cooing system to keep inside temperature stable and uniform. Finned evaporator with special cycle design of forced air cooling system to ensure no-frost inside.

Ergonomic Design
Optimized space utilization design with multi-level and adjustable shelf height to accommodate storage requirement of pharmaceutical products of various kinds.
Safety lock to prevent unauthorized access.
Caster design and leveling legs LED interior light.

Specifications

 ModelPR5-310
SpecificationsShelf/drawerShelves/5
Cooling methodForced Air Cooling System
DefrostAuto
RefrigerantR290
Power consumption(kWh/24h)1.85
Noise(db)50
Ambient temperature(℃)10~32℃
Temperature range(℃)2~8℃
Cooling systemCompressor brand/QTYChina Brand/1
Sensor TypeNTC
Temperature controllerMicroprocessor
DisplayDigital display
PowerVoltage/frequency(V/Hz)220/50Hz
Power(W)245W
Current(A)1.3A
MaterialInside materialBlister liner
Outside materialColor sprayed steel
InsulationPURF
SizeCapacity(L/cu.ft)312/11.02
NW./GW.(kg)86/90
Exterior size(W×D×H)(mm)650×624×1902
Interior size(W×D×H)(mm)560×485×1350
Package size(W×D×H)(mm)710×680×1960
CBM0.95
20GP/40GP/40HQ24/48/48
AlarmHigh/low temperatureY
Power failureY
Thermostat failureY
Backup battery failure alarm/
Condenser fault alarm/
Ambient Temperatures/
Voltage abnormality alarm/
Door ajarY
System abnormal alarm/
Power failure backup system(alarm)48h
AccessoriesFootY
CastorY
Outer door/Type1/Heating Glass door /Low-E
Door Lock1
Test hole QTY/diameter1
LampLED
USB port/
Temperature recorderOptional
Remote alarm portY
RS232/485 port/
