Description

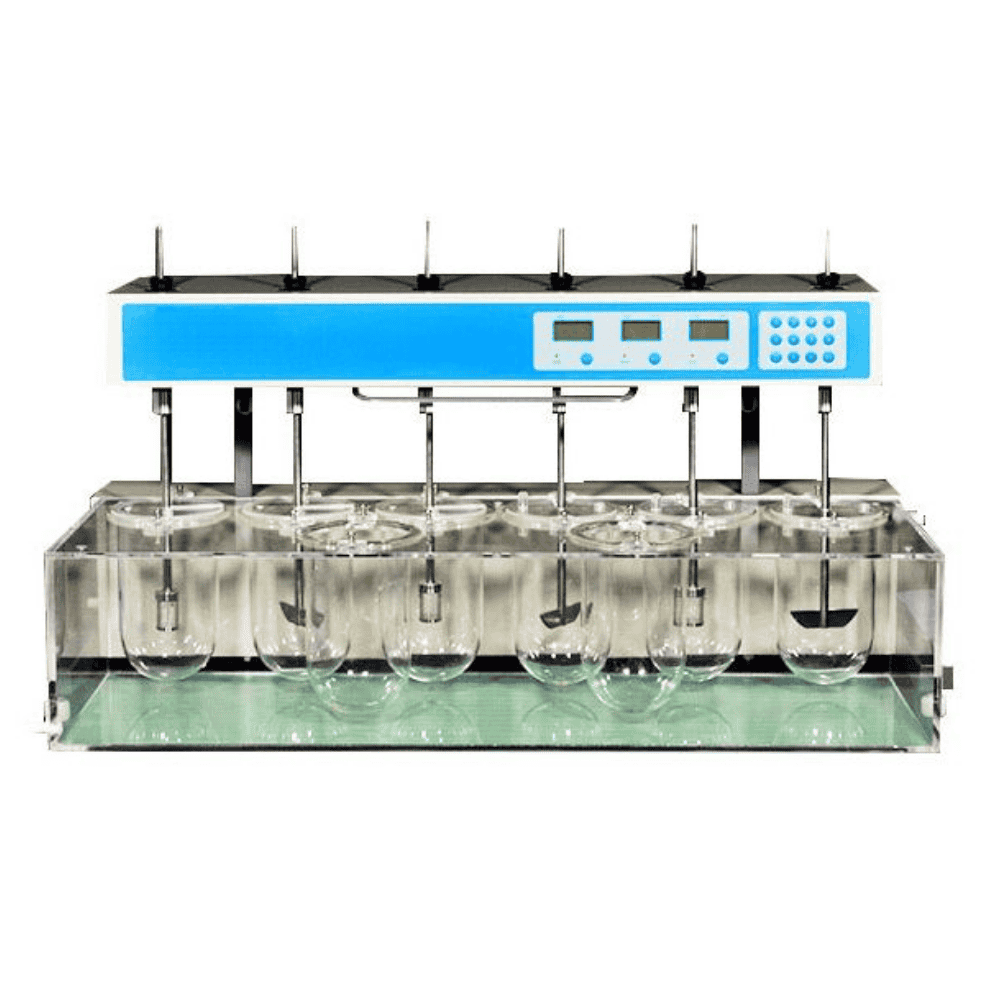

DIST series of instruments are used to examine the dissolving speed and degree of solid preparations like drug tablets or capsules in the specified solvents.
Features:
- It has eight vessels and six poles, with six vessels and six poles in front and two vessels at back.
- The head part of the instrument can be artificially turned over smoothly and flexibly.
- The basket units and paddle units are made of imported stainless steel (SUS316L).
- The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
- An MPU is used in the dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
- It can be operated conveniently by keystroke. The measurement result is displayed by LCD. The preset and real data can be displayed alternately in time.
- Automation: auto-test, auto-diagnose, auto-alarm.
- The dissolution parameters of’ Chinese codex 2010′ are stored in and can be taken out at anytime.
- Time can be preset at many points. The beeper sounds automatically to any point, and then the tester automatically runs to the next one.
Specifications
· Speed range | (20~200)rpm |
· Speed accuracy | ±1rpm |
· Temperature range | ambient to +45.0℃ |
· Temperature Stability | ±0.3℃ |
· Preset timing nine points | (1~999)min |
· Time accuracy | ±0.5min |
· Paddle radial run-out | ±0.5mm |
· Basket radial run-out | ±1.0mm |
· Electricity | 220V/50Hz/1200W or 110V/60Hz/1200W |
· Dimension | (960*440*480)mm3 |
